2019 Husqvarna TE 250 (Fuel Injected) Lubricating System OEM Parts Diagram

Submodel TE 250i ENGINE - 2019

Shop Aftermarket Parts

LUBRICATING SYSTEM

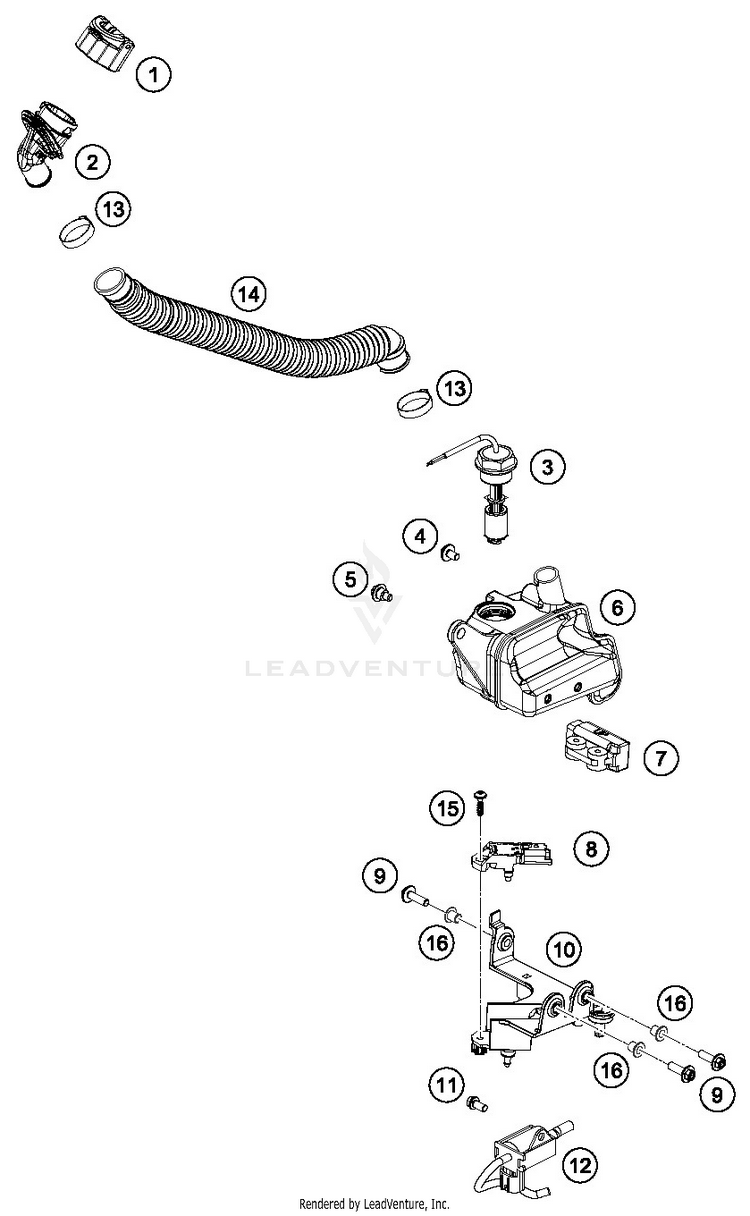

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
155638070033Oilfillercap cpl.$24.85$21.1210+ In-Stock
255638061020Filler plug oil tank$6.15$5.2310+ In-Stock
355638062000Oil level sensor$119.12$101.255 In-Stock
40024060106HH COLLAR SCREW M6X10 TX30$3.99$3.3910+ In-Stock
559001092050SPECIAL SCREW M6X12,5 WS=8$2.99$2.5410+ In-Stock
655638061200Oil tank$51.49$43.776 In-Stock
761041088000ROLLOVER SENSOR 05$79.63$67.6910+ In-Stock
855641075000Crankcase Presure Sensor CCP$65.55$55.7210+ In-Stock
90024060156HH collar screw M6x15 TX30$3.99$3.3910+ In-Stock
1055638061140

(replaces part #
55638061040)

Oil pump support$25.51$21.68Usually ships in 7-10 business days
110025060126HH collar screw M6x12 TX30$3.99$3.3910+ In-Stock
1255638064000Oil pump$181.60$154.3610+ In-Stock
1300050271708VARIABLE ONE-EAR CLAMP 27,1MM$3.99$3.3910+ In-Stock
1455638065200

(replaces part #
55638065100)

Tube$21.66$18.4110+ In-Stock
150081050181SCREW FOR PLASTIC K50X18 T20$2.99$2.5410+ In-Stock
1645239060050

(replaces part #
58314060050)

COLLAR BUSHING 6,3X8X13X9,5$6.15$5.2310+ In-Stock
1755538087000Clamp 2$7.69$6.5410+ In-Stock
1855538086000Clamp 1$7.69$6.5410+ In-Stock
1955538083044Tube set, oil tank$48.94$41.6010+ In-Stock
