2020 Husqvarna FC 350 Ignition System OEM Parts Diagram

Submodel FC 350 ENGINE - 2020

Shop Aftermarket Parts

IGNITION SYSTEM

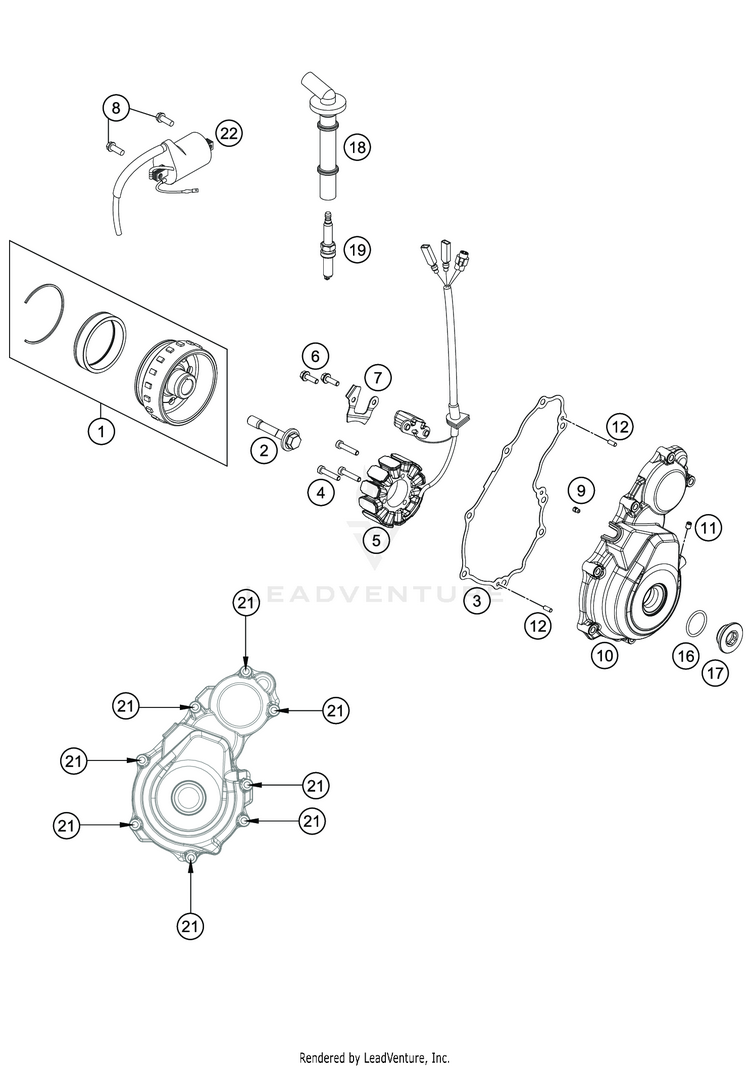

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
179239005144

(replaces part #
79239005044)

Rotor EFI cpl.$640.52$544.4410+ In-Stock
277339010100FLYWHEEL SCREW$6.59$5.6010+ In-Stock
379230040000IGNITION COVER GASKET$20.45$17.3810+ In-Stock
40012050253SBolt DIN 6912 - M5x25 SS$1.99$1.6910+ In-Stock
579239004200

(replaces part #
79239004100)

Stator | NEW PART$240.23$204.2010+ In-Stock
60025050166HH collar screw M5x16 TX30$2.99$2.5410+ In-Stock
7A46030002050

(replaces part #
79230002050)

Cable retainer$10.66$9.062 In-Stock
80026060186COLLAR SCREW M6X18 ISA30$1.99$1.69Not Shipping
980030058060OIL JET ''60'' M4$13.96$11.8710+ In-Stock
1079230602100JA

(replaces part #
79230602000JA)

Ignition cover | NEW PART$152.45$129.58Usually ships in 7-10 business days
110913050063STHREAD PIN DIN 913 M5X6$1.99$1.6910+ In-Stock
120402040980NEEDLE ROL.DIN5402 NRB 4X9,8$3.99$3.3910+ In-Stock
1607700240251o-ring 24.00x2.50 Viton$3.99$3.3910+ In-Stock
177723000216030SCREW PLUG M24X1,5$43.11$36.6410+ In-Stock
1879139190000

(replaces part #
79139090000)

Spark plug connector | NEW PART$69.40$58.9910+ In-Stock
1977239093000PLUG NGK LMAR9AI - 8$26.72$22.7110+ In-Stock
210025060306HH collar screw M6x30 TX30$3.99$3.3910+ In-Stock
2258439006000IGNITIONCOIL IG3826 KOKUSAN'96$88.76$75.4510+ In-Stock
