2020 Husqvarna FS 450 Front Wheel OEM Parts Diagram

Submodel FS 450 CHASSIS - 2020

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

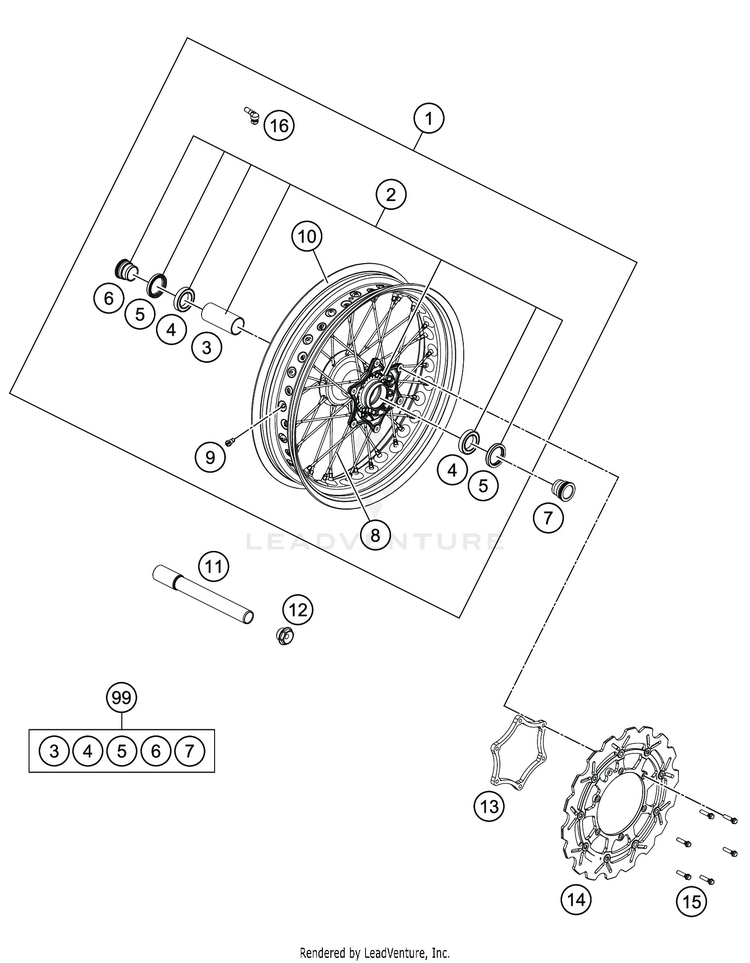

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12610900104430FRONT WHEEL CPL. 3,5X16,5''$1,413.60$1,201.56Usually ships in 7-10 business days
278009010144FRONT WHEEL HUB CPL.$359.58$305.64Usually ships in 7-10 business days
354809011000BEA.SPACERTUBE 35X2 L=79,4 03$30.24$25.7010+ In-Stock
40625069068GR.BALL BEAR.6906 DDU2CG23S6NM$40.80$34.6810+ In-Stock
50760354771SHAFT SEAL RING 35X47X7 TC$10.22$8.6910+ In-Stock
678009012000SPACER BUSHING F. FR. WHEEL 08$35.41$30.1010+ In-Stock
778909012000SPACER BUSHING F. FR. WHEEL 14$21.88$18.60Usually ships in 7-10 business days
826109071146SPKE M4,5X146 - 16,5''$6.26$5.63Usually ships in 7-10 business days
926109072000SPOKE NIPPLE M4,5X0,75$6.59$5.93Usually ships in 7-10 business days
102610907000030RIM FRONT 3,50X16,5'' BLACK$1,002.97$852.52Usually ships in 7-10 business days
1178909081100Wheel spindle, front, D=26 mm$97.45$82.83Usually ships in 7-10 business days
1254809082200

(replaces part #
54809082000)

Axle bolt M24x1.5 SW=27$11.54$9.8110+ In-Stock
1358409161000BRAKE DISC SUPPORT 8.5 MM$120.22$102.19Usually ships in 7-10 business days
1425009260000BRAKE DISC FRONT D=310MM$435.92$370.53Usually ships in 7-10 business days
1559009062026SPECIAL SCREW M6X26 SW=8 10.9$2.99$2.5410+ In-Stock
1626109076000valve front$58.73$49.92Usually ships in 7-10 business days
9978009015010FRONT WHEEL REP.KIT 450 SMR 14 | ON DEMAND$0.00$0.00Not Shipping
