2020 Husqvarna TC 50 Mini Ignition System OEM Parts Diagram

Submodel TC 50 MINI ENGINE - 2020

Shop Aftermarket Parts

IGNITION SYSTEM

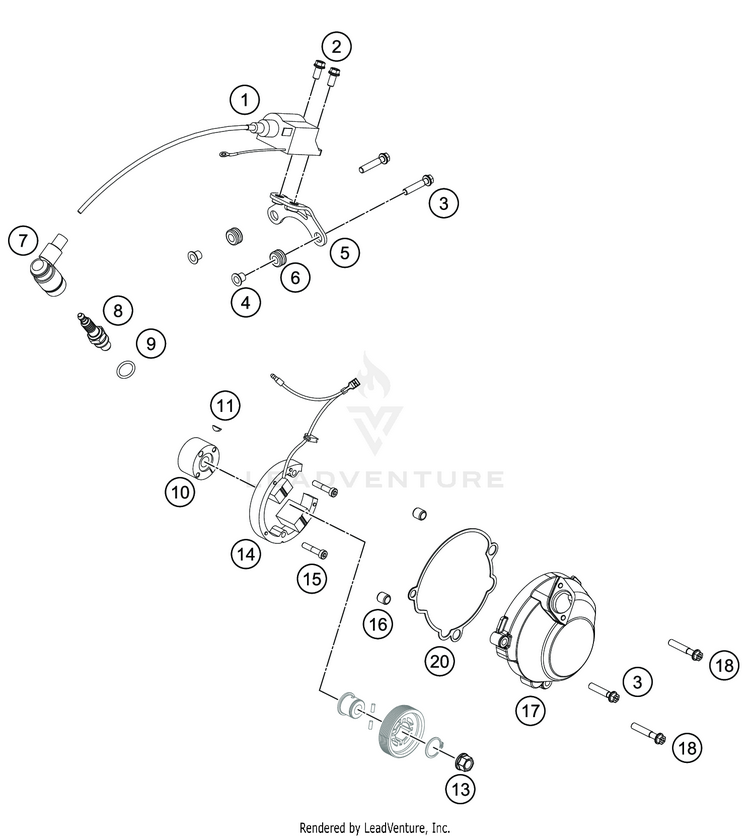

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
145139006000IGNITION COIL 50CCM LC 2001$159.71$135.7510+ In-Stock
20025060126HH collar screw M6x12 TX30$3.99$3.3910+ In-Stock
30025060306HH collar screw M6x30 TX30$3.99$3.3910+ In-Stock
445239060050COLLAR BUSHING 6,3X8X13X9,5$6.15$5.2310+ In-Stock
545239010000IGNIT. COIL RETAIN. PLATE CPL.$23.75$20.19Usually ships in 7-10 business days
631008060000rubber grommet D=8mm open$2.99$2.5410+ In-Stock
746239190000

(replaces part #
46239090000)

Spark plug connector$40.14$34.1210+ In-Stock
845239093000SPARK PLUG LR8B$8.24$7.0010+ In-Stock
90770012030O-RING 12,00X3,0 VITON 75$3.99$3.3910+ In-Stock
1045139005100FLYWEEL ROTOR 50 2004$79.96$67.9710+ In-Stock
110888025030WOODRUFF KEY DIN6888-2,5X3$4.99$4.2410+ In-Stock
1358414030000HH COLLAR NUT M10X1,25 WS=13$2.99$2.5410+ In-Stock
1445139004000FLYWHEEL STATOR 50CCM LC 2001$162.35$138.0010+ In-Stock
150012050253S

(replaces part #
0012050253)

Bolt DIN 6912 - M5x25 SS$1.99$1.6910+ In-Stock
1649030090100

(replaces part #
49030090000)

DOWEL 9,8 X7X10$2.99$2.8310+ In-Stock
1745230702000JAignition cover HQV$96.68$82.18Usually ships in 7-10 business days
180025060356HH collar screw M6x35 TX30$3.99$3.3910+ In-Stock
2045230040000GASKET - IGNITION COVER$10.22$8.6910+ In-Stock
