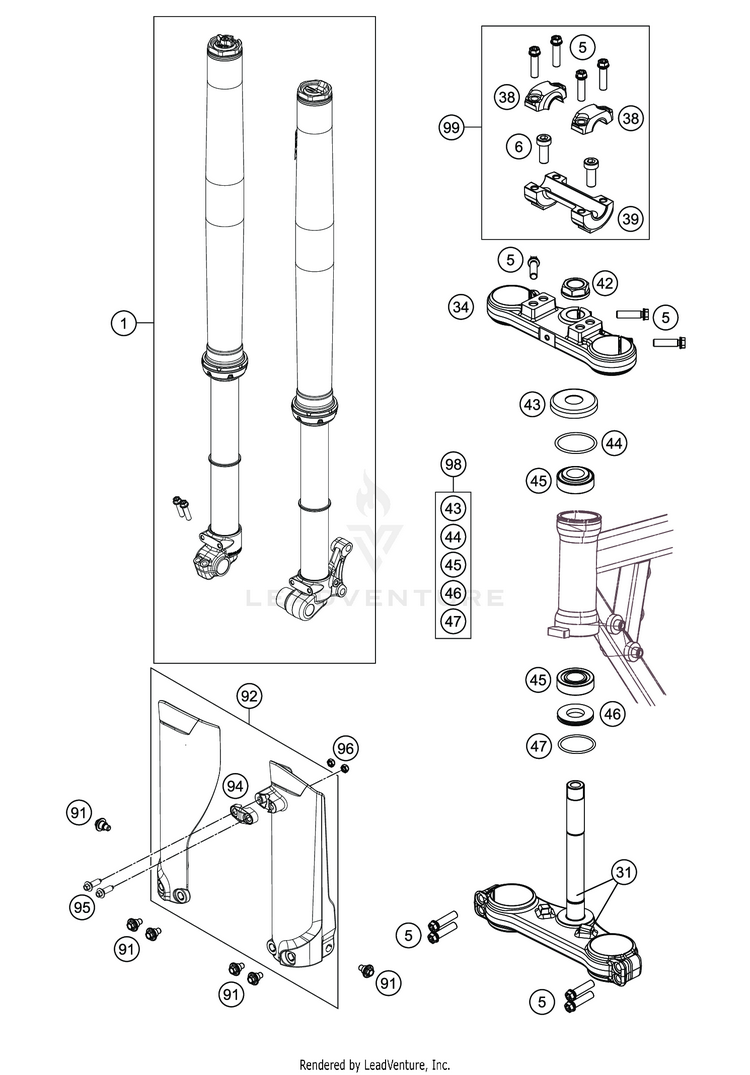

2020 Husqvarna TC 50 Front Fork, Triple Clamp OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	07186T0201	Fork 50 SX/TC 20	$2,026.38	$1,722.42	Usually ships in 7-10 business days
5	0025080306	HH collar screw M8x30	$3.62	$3.08	10+ In-Stock
6	0032100256S	AH-COLLAR SCREW M10X25 ISA45	$4.99	$4.24	10+ In-Stock
31	45201032022	BOT. TRIPLE CLAMP CPL.	$237.70	$202.04	Usually ships in 7-10 business days
34	45201034022	TOP TRIPLE CLAMP	$180.39	$153.33	3 In-Stock
38	50301038000	HANDLEBAR CLAMP D=22MM 2001	$25.29	$21.50	10+ In-Stock
39	45201039000	HANDLEBAR SUPPORT 50SX D=22MM	$73.25	$62.26	6 In-Stock
42	59030029000	HH NUT M20X1,5 WS=27 RIGHT	$10.44	$8.87	10+ In-Stock
43	49001086000	COVERING CAP	$7.91	$6.72	10+ In-Stock
44	0770021300	O-RING 40,94X2,62 NBR70	$3.99	$3.39	10+ In-Stock
45	49001081000	TAPERED ROLLER BEARING 32004X	$49.60	$42.16	10+ In-Stock
46	46001086000	PROTECTION RING 20,1X39X5	$10.11	$8.59	10+ In-Stock
47	0770360030	O-RING 36,00X3,00 NBR	$2.99	$2.54	10+ In-Stock
91	59001092050	SPECIAL SCREW M6X12,5 WS=8	$2.99	$2.54	10+ In-Stock
92	46301094000DBC (replaces part # 46301094000DBB)	Fork protection kit TC 50/65 2021 with Decal	$88.19	$74.96	4 In-Stock
94	46301085000AB	Clamp brake hose	$5.99	$5.09	3 In-Stock
95	0017060206	SCREW F. PLASTIC K60X20AL SW6	$3.99	$3.39	10+ In-Stock
96	0985050003	SELF LOCKING NUT DIN0985-M 5	$2.99	$2.54	10+ In-Stock
98	49001081044 (replaces part # 00050000931)	Stearing Head repair kit Mini	$82.38	$70.02	10+ In-Stock
99	00050000925	HANDLEBAR SUPPORT KIT 50SX '12	$100.97	$85.82	10+ In-Stock
