2020 Husqvarna TC 65 Shock Absorber Disassembled OEM Parts Diagram

Submodel TC 65 CHASSIS - 2020

Shop Aftermarket Parts

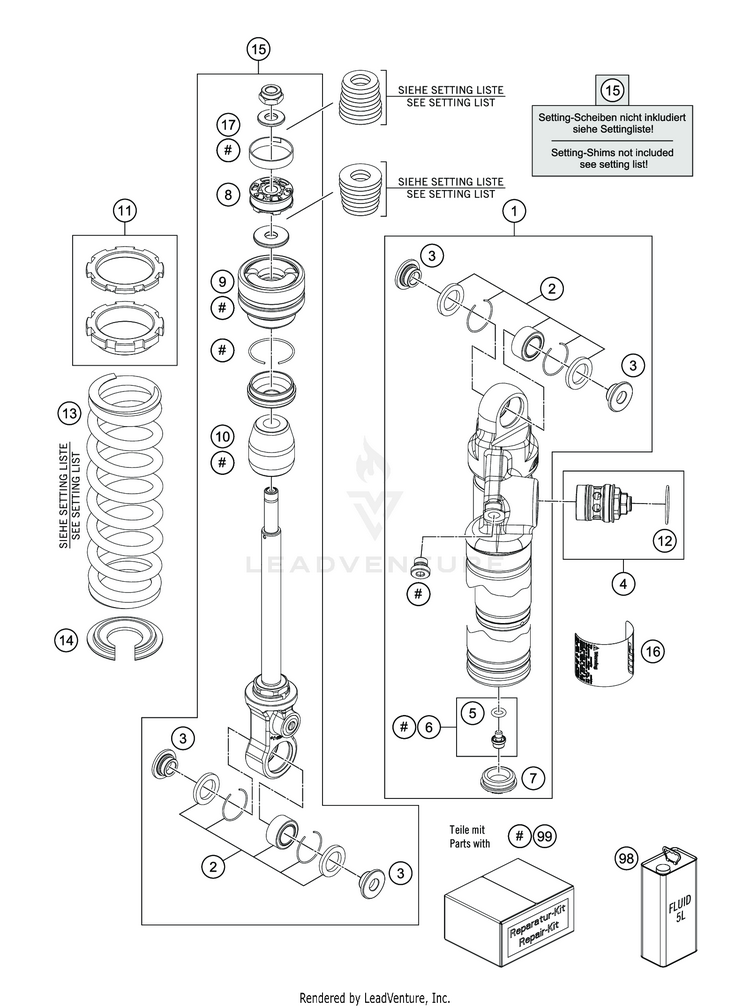

SHOCK ABSORBER DISASSEMBLED

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
136120846S2Shock housing cpl.$463.86$394.28Usually ships in 7-10 business days
2R12012T

(replaces part #
R12012)

Ball joint bearing kit top 12mm$42.01$35.7110+ In-Stock
346180009Distance bush 10x15/18/24,5x9,5$7.95$6.7610+ In-Stock
450181101S39Compression cpl.$106.36$90.41Usually ships in 7-10 business days
5S208600003000FB

(replaces part #
46810893)

O-ring 5,28x1,78 HNBR70 red$0.76$0.6510+ In-Stock
636120151ST

(replaces part #
36120151S)

PLUG SCREW M5X6 CPL.$4.83$4.1110+ In-Stock
746811208Rubber cap do not open 22x5,5 NBR$3.62$3.0810+ In-Stock
836120071Piston 10,5x35,6x13,65 3,5/5,5$72.59$61.70Usually ships in 7-10 business days
936120787SSealholder 36x26,6 cpl.$90.30$76.7610+ In-Stock
1036120799Rubber pad 13,9x38x43 black$15.17$12.8910+ In-Stock
1136120418SADJUSTING NUT CPL.$41.35$35.158 In-Stock
1250180217O-ring 27x1,5 Viton70 green ISO 3601-3S$2.41$2.0510+ In-Stock
1393010225SSHOCK SPRING 40N/MM - 210MM$183.03$155.58Usually ships in 7-10 business days
1393010224SSHOCK SPRING 35N/MM - 210MM | ON DEMAND$183.03$155.5810+ In-Stock
1393010226SSHOCK SPRING 45N/MM - 210MM | ON DEMAND$183.03$155.58Usually ships in 7-10 business days
1436120386Spring retainer 27x57x2$31.78$27.016 In-Stock
1536120781S18Bottom part cpl.$422.94$359.50Usually ships in 7-10 business days
1652000222Sticker XACT 65SX$31.45$26.73Usually ships in 7-10 business days
1736120040Pistonring 33x35x8$8.13$6.9110+ In-Stock
9850180751S1SHOCK ABSORBER FLUID 5 LT$175.99$149.596 In-Stock
99R308T

(replaces part #
R308)

REPAIR-KIT$76.55$65.0710+ In-Stock
