2021 Husqvarna 701 ENDURO Front Wheel OEM Parts Diagram

Submodel 701 ENDURO CHASSIS - 2021

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT WHEEL

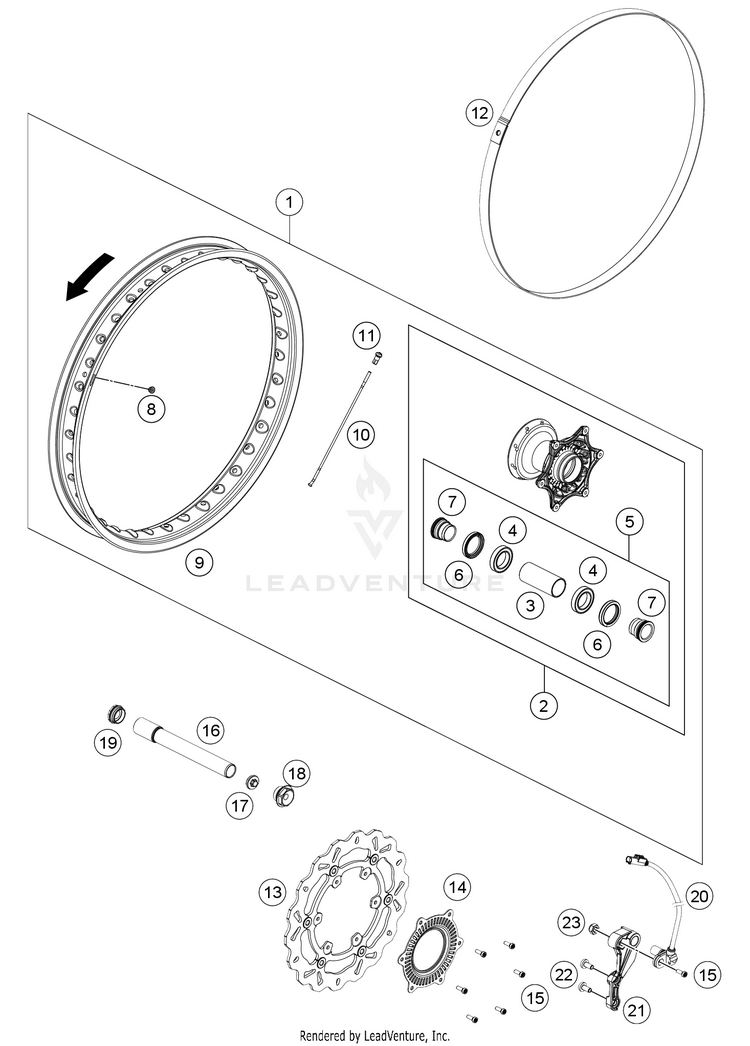

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
17650910104430FRONT WHEEL CPL. 1,85X21'' 16$936.20$795.77Usually ships in 7-10 business days
27530901004491FRONT HUB CPL.$349.57$297.13Usually ships in 7-10 business days
354809011000BEA.SPACERTUBE 35X2 L=79,4 03$30.24$25.7010+ In-Stock
40625069068GR.BALL BEAR.6906 DDU2CG23S6NM$40.80$34.6810+ In-Stock
578009015000FRONT WHEEL REP. KIT$125.50$106.6810+ In-Stock
60760354771SHAFT SEAL RING 35X47X7 TC$10.22$8.6910+ In-Stock
778009012000SPACER BUSHING F. FR. WHEEL 08$35.41$30.1010+ In-Stock
855003135000PLUG FOR RIM$2.99$2.5410+ In-Stock
97650917000030RIM 1,85X21'' DID BLACK 16$429.43$365.02Usually ships in 7-10 business days
1075309073226SPOKE M4,5X226-18'' INOX$4.99$4.2410+ In-Stock
1181210072200

(replaces part #
81210072100)

Spoke nipple, Quadrax M4,5$2.99$2.5410+ In-Stock
1258409073100RIM BAND FRONT 2MM 2003$8.90$7.5610+ In-Stock
1376509260000FRONT BRAKE DISC D=300MM$360.90$306.768 In-Stock
1460142020100

(replaces part #
60142020000)

Front sensor wheel$98.55$83.779 In-Stock
15014580060166SSHCS ISO 14580 M6x16 SL$2.99$2.5410+ In-Stock
1677309081100Wheel spindle, front$97.45$82.8310+ In-Stock
1754809081070AUXILIARY SCREW FRONT 06$6.70$5.7010+ In-Stock
1854809082200

(replaces part #
54809082000)

Axle bolt M24x1.5 SW=27$11.54$9.8110+ In-Stock
1954809081050PLUG BUSHING WS=27 03$11.54$9.8110+ In-Stock
2027042025000ABS SENSOR$299.74$254.78Usually ships in 7-10 business days
2127042024200Sensor bracket$21.00$17.8510+ In-Stock
220018050103INT. TORX OVAL HEAD M 5X10 8.8$1.99$1.6910+ In-Stock
230985060003SELF LOCK. NUT DIN0985-M 6$2.99$2.5410+ In-Stock
