2021 Husqvarna FE 350 Engine Case OEM Parts Diagram

Submodel FE 350 Engine - 2021

Shop Aftermarket Parts

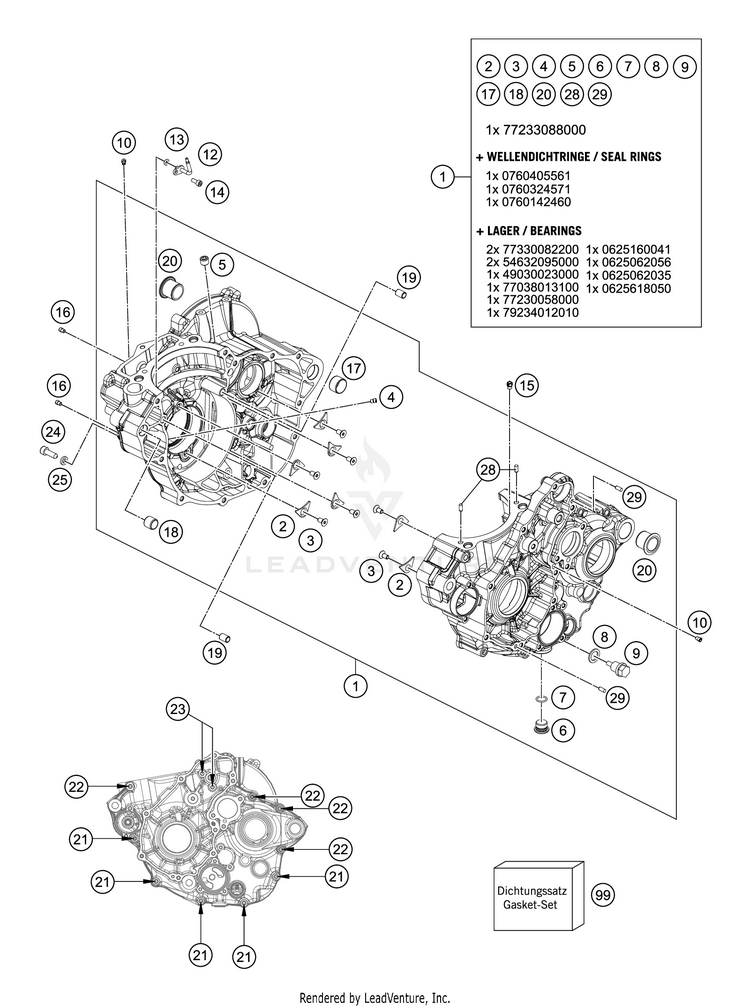

ENGINE CASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
179330000144

(replaces part #
79330000044)

Engine case cmpl.$2,425.49$2,190.21Usually ships in 7-10 business days
275030085100

(replaces part #
75030085000)

Retaining bracket crankshaft bearing$1.99$1.6910+ In-Stock
30019050121SINT. TORX FLAT HEAD M5X12 T25$2.99$2.5410+ In-Stock
479330058040Nozzle$10.55$8.97Usually ships in 7-10 business days
50906100100pipe plug DIN 906 M10x1$4.99$4.495 In-Stock
678036081100

(replaces part #
78036081000)

Screw plug M24x1.5$3.99$3.39
70770110015O-RING 1,5x11 SILICON$6.15$5.2310+ In-Stock
858038022000CU-SEAL RING DIN7603-12X18X1,5$2.99$2.9310+ In-Stock
958030021100

(replaces part #
58030021000)

oildrain plug with magnet$13.30$11.3010+ In-Stock
1080030058060OIL JET ''60'' M4$13.96$11.8710+ In-Stock
1277830064070OIL JET CURVED '' 70 ''$12.86$10.93Usually ships in 7-10 business days
130770035020O-RING 3,5X2,00 NBR$1.99$1.6910+ In-Stock
140912040103SCylinder screw DIN 912-M4x10-8.8 SS$1.99$1.696 In-Stock
1560030063070oil jet 70 M5$10.11$8.5910+ In-Stock
1659030058000JET 100 BING(44-031/180) M4$4.99$4.248 In-Stock
1759030024000DOWEL 17 X 19 X 12$6.15$5.2310+ In-Stock
1854630027000DOWEL BUSHING 13,8X11X12$8.13$6.9110+ In-Stock
1959030023100Dowel, 6x8x11.5-$2.6910+ In-Stock
2079230010000CASE BUSH$13.96$11.8710+ In-Stock
210025060556HH collar screw M6x55 TX30$3.99$3.3910+ In-Stock
220025060656HH COLLAR SCREW M6X65 TX30$2.99$2.5410+ In-Stock
230025060706HH COLLAR SCREW M6X70 TX30$3.99$3.3910+ In-Stock
2458030080000LOCATING SCREW M8 L=23-$17.153 In-Stock
2558030081000CU-SEAL RING 8 X 14 X 3$2.99$2.5410+ In-Stock
280402050080CYLINDER ROLLER ZRO 5X8$2.99$2.5410+ In-Stock
290402040980NEEDLE ROL.DIN5402 NRB 4X9,8$3.99$3.3910+ In-Stock
9979330099100Engine sealkit 350 Enduro$302.60$257.21Usually ships in 7-10 business days
