2021 Husqvarna TC 250 Water Pump OEM Parts Diagram

Submodel TC 250 Engine - 2021

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

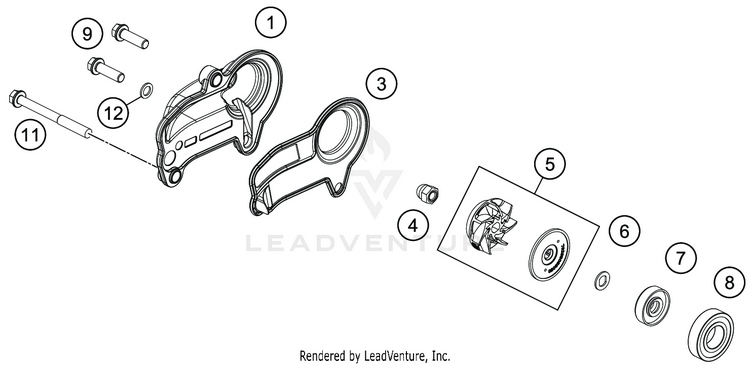

WATER PUMP

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
155535052000Waterpump Cover$21.66$18.412 In-Stock
355535053100

(replaces part #
55535053000)

Gasket with carrier plate$33.10$28.1410+ In-Stock
461230045000CAP NUT M6 STAINLESS STEEL$2.09$2.0910+ In-Stock
579235055044WATER PUMP WHEEL CPL.$18.14$15.4210+ In-Stock
650435049000PREFORMED WASHER$4.99$4.2410+ In-Stock
70760082472SHAFT SEAL RING 8X24X7 A DUO$9.01$7.6610+ In-Stock
80625160020BALL BEARING 16002 C3$22.43$19.0710+ In-Stock
90025060206HH collar screw M6x20 TX30$3.99$3.3910+ In-Stock
110025060606HH collar screw M6x60 TX30$3.99$3.3910+ In-Stock
120603061001CU-SEAL RING DIN7603-6X10X1$2.99$2.5410+ In-Stock
