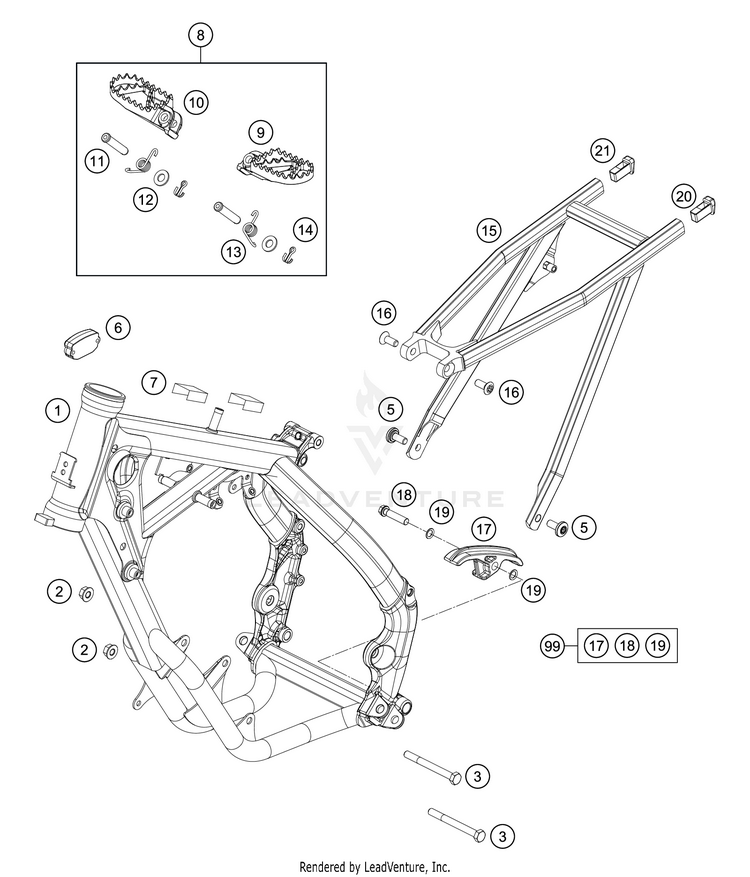

2021 Husqvarna TC 65 Frame OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	4630300130069 (replaces part # 4630300110069)	Frame ""463V5""	$1,593.34	$1,438.79	Usually ships in 7-10 business days
2	54310086200	SELF LOCKING NUT M8 10.9	$3.99	$3.39	10+ In-Stock
3	01665080806	Hexagonal bolt EN 1665-M8x80-10.9	$1.99	$1.69	10+ In-Stock
5	79003003000	SPECIAL SCREW M8X18 TORX45 SS	$3.99	$3.39	10+ In-Stock
6	81312920100 (replaces part # 81312920000)	Hourmeter	$65.99	$56.09	10+ In-Stock
7	50307012000	ADH. FOIL TRANSP. 80X80 MM 04	$2.99	$2.54	10+ In-Stock
8	47103040033	FOOTREST CPL. 14	$129.57	$110.13	5 In-Stock
9	47103040000	FOOTREST L/S	$51.58	$43.84	9 In-Stock
10	47103041000	FOOTREST R/S	$50.26	$42.72	10+ In-Stock
11	54803044000	PIN FOR FOOT PED 51.5X9.8 MM	$14.62	$12.43	10+ In-Stock
12	0125100003	washer DIN 125 A 10.5	$2.99	$2.54	10+ In-Stock
13	54603041000	FOOTREST SPRING L/S & R/S	$6.15	$5.23	10+ In-Stock
14	0094032250 (replaces part # 0094032253)	PIN DIN 0094-3.2X25 NIRO	-	$2.08	10+ In-Stock
15	46303002000	SUBFRAME 65SX 2016	$246.61	$209.62	10+ In-Stock
16	0019080206S	FLAT HEAD SCREW M. ISA45 M8X20	$2.99	$2.54	10+ In-Stock
17	77303053000	CHAIN SLIDING PIECE BELOW 07	$11.10	$9.44	10+ In-Stock
18	0025080356	HH collar screw M8x35 TX40	$4.83	$4.11	10+ In-Stock
19	36003014000	LOCK WASHER 8MM	$2.99	$2.54	10+ In-Stock
20	78103002010	SUB FRAME APPLICATION LEFT	$26.39	$22.43	10+ In-Stock
21	78103002020	SUB FRAME APPLICATION RIGHT	$23.97	$20.37	10+ In-Stock
99	77303053110	CHAIN SLIDING KIT BELOW 09-15	$15.61	$13.27	10+ In-Stock
