2022 Husqvarna FE 501 S Lighting System OEM Parts Diagram

Submodel FE 501s US CHASSIS - 2022

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

LIGHTING SYSTEM

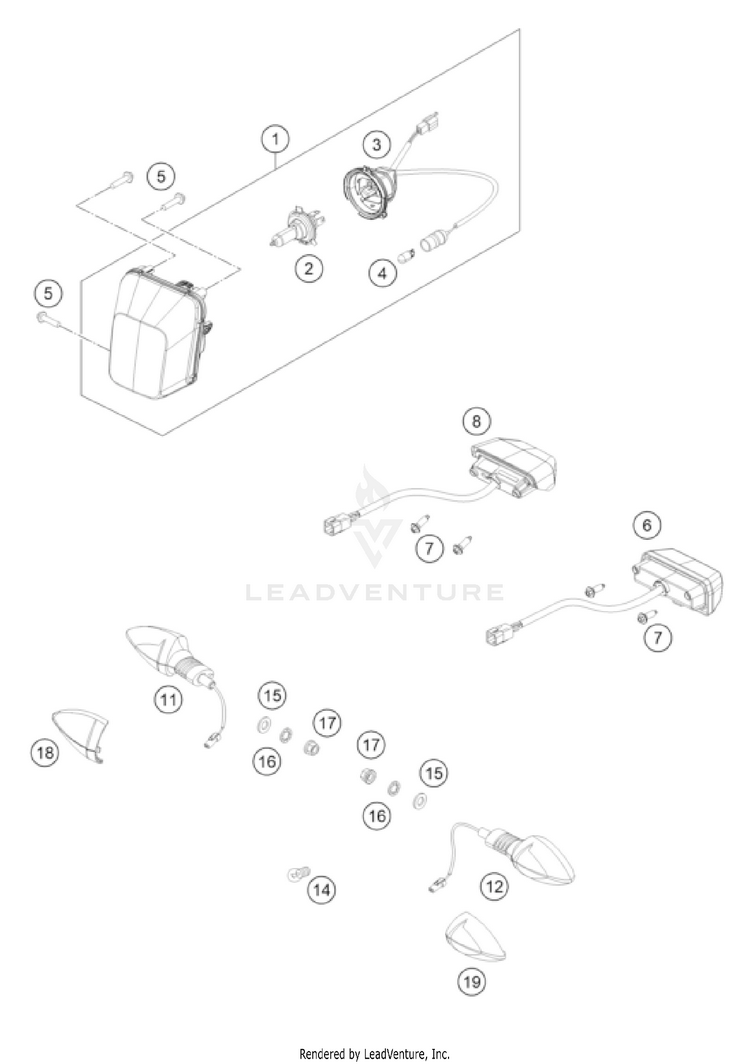

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
126514001000MAIN HEAD LIGHT 270 HQV HS1$157.29$133.7010+ In-Stock
254611038012BULB HS1 12V 35/35W WHITE$39.15$33.2810+ In-Stock
378114001050LAMP BRACKET CPL. 2014$52.35$44.5010+ In-Stock
449011435100BULB 12V 5W (W2,1X9,5D) PHIL.$6.15$5.2310+ In-Stock
50081050181SCREW FOR PLASTIC K50X18 T20$2.99$2.5410+ In-Stock
679714140000Tail light USA$129.79$110.3210+ In-Stock
70017060205SCREW FOR PLASTIC K60X20 SW6$2.99$2.9210+ In-Stock
826614040000Tail light EU$106.14$90.2210+ In-Stock
1178114026000FLASHER CPL.FRONT R/S REAR L/S$38.49$32.7210+ In-Stock
1278114025000FLASHER CPL.FRONT L/S REAR R/S$38.49$32.7210+ In-Stock
1460114027000BULB 12V ORANGE (RY10W)$7.80$6.6310+ In-Stock
150125100003washer DIN 125 A 10.5$2.99$2.5410+ In-Stock
160797100003LOCK WASHER DIN6797-J10,5 ZI$1.99$1.6910+ In-Stock
1758414030000HH COLLAR NUT M10X1,25 WS=13$2.99$2.5410+ In-Stock
1878114028000FLASHER LENS L/S R/S TRANSP.$10.00$8.5010+ In-Stock
1978114027000FLASHER LENS FRO.L/S-REAR R/S$10.00$8.5010+ In-Stock
