2022 Husqvarna TC 250 Exhaust System OEM Parts Diagram

Submodel TC 250 CHASSIS - 2022

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST SYSTEM

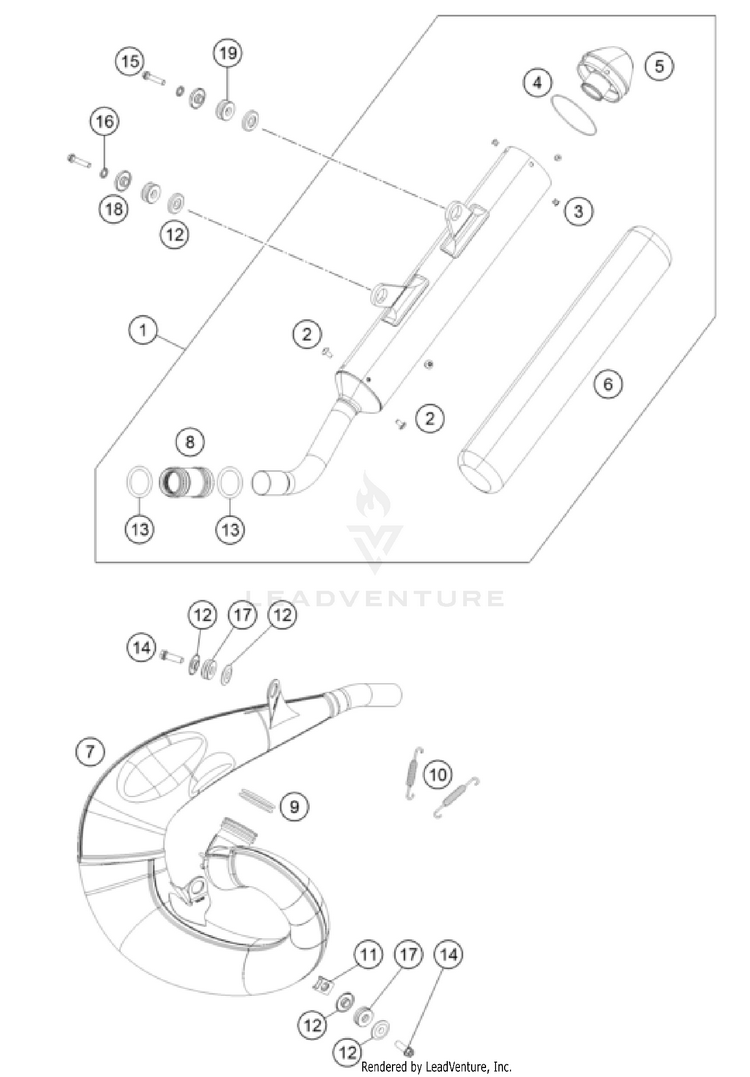

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
124605079200Silencer$739.08$628.22Usually ships in 7-10 business days
278105081010SCREW TORX M5X10$2.99$2.5410+ In-Stock
30011480800DUMMY RIVET 4,8X 8 NIRO$3.99$3.3910+ In-Stock
40770740015O-RING 74,00X1,50 FKM 75SH$4.99$4.2410+ In-Stock
555505079060End Cap cpl.$98.55$83.77Usually ships in 7-10 business days
655505078210Damping material 210g$100.42$85.36Usually ships in 7-10 business days
755505007100Mainfold$688.59$585.301 In-Stock
855405057000exhaust rubber$12.79$10.8710+ In-Stock
90770440030O-RING 44,00X3,00 VITON$4.99$4.2410+ In-Stock
10A46005016000

(replaces part #
50305016100)

Tension spring L=65mm$5.38$4.5710+ In-Stock
1154603048000RANGE CHANGE METAL NUT M8$4.99$4.2410+ In-Stock
1277805069000BUSHING 8.5x12x28x8.3$7.03$5.9810+ In-Stock
1355405058000hose spring$3.99$3.3910+ In-Stock
140025080306HH collar screw M8x30$3.62$3.0810+ In-Stock
150025060356HH collar screw M6x35 TX30$3.99$3.3910+ In-Stock
1650233041000PAIR OF WASHERS M 6 NORDLOCK$4.99$4.2410+ In-Stock
1779105068000Damper gray$6.99$5.9410+ In-Stock
1877205169000BUSHING 7.5x12x28x8.3 11$4.99$4.2410+ In-Stock
1977205068000DAMP. COMPON. BLACK$7.69$6.5410+ In-Stock
