2022 Husqvarna TC 50 Frame OEM Parts Diagram

Submodel TC 50 EU CHASSIS - 2022

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

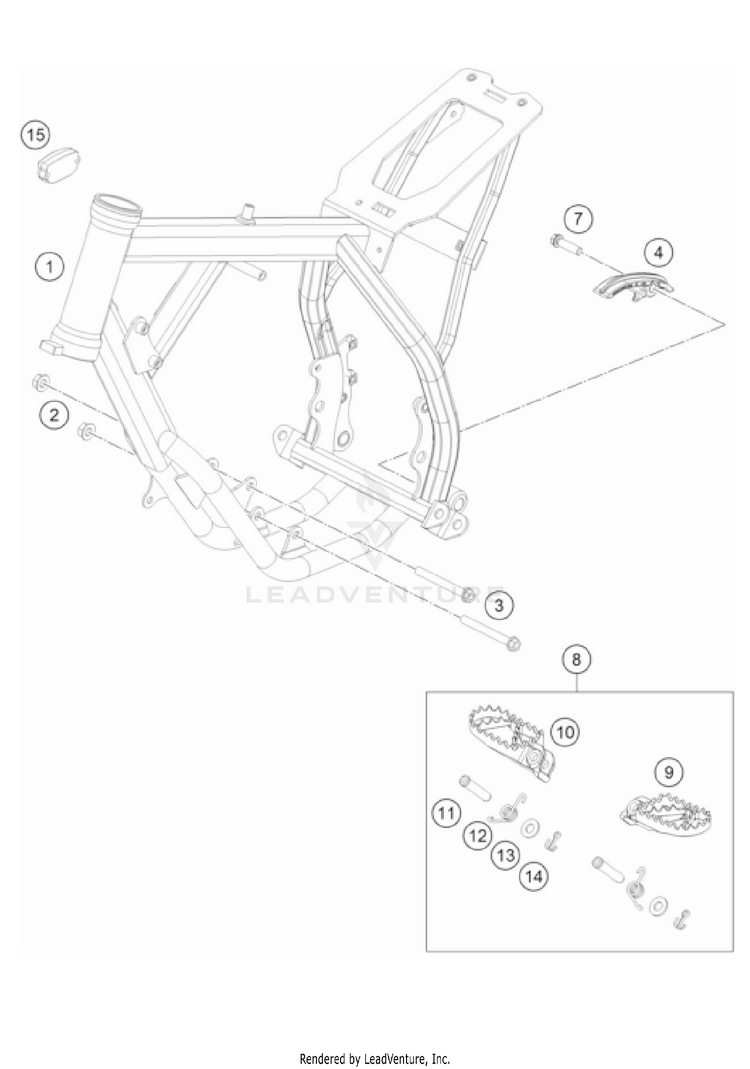

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14530300160069

(replaces part #
4530300140069)

Frame ""453V5""$625.78$565.08Usually ships in 7-10 business days
254310086200SELF LOCKING NUT M8 10.9$3.99$3.3910+ In-Stock
30025080656HH collar screw M8x65 TX40$4.99$4.2410+ In-Stock
445303053000Chain slider bottom$11.87$10.0910+ In-Stock
70025080306HH collar screw M8x30$3.62$3.0810+ In-Stock
847103040033FOOTREST CPL. 14$129.57$110.135 In-Stock
947103040000FOOTREST L/S$51.58$43.849 In-Stock
1047103041000FOOTREST R/S$50.26$42.7210+ In-Stock
1154803044000PIN FOR FOOT PED 51.5X9.8 MM$14.62$12.4310+ In-Stock
1254603041000FOOTREST SPRING L/S & R/S$6.15$5.2310+ In-Stock
130125100003washer DIN 125 A 10.5$2.99$2.5410+ In-Stock
140094032250

(replaces part #
0094032253)

PIN DIN 0094-3.2X25 NIRO-$2.0810+ In-Stock
1581312920100

(replaces part #
81312920000)

Hourmeter$65.99$56.0910+ In-Stock
