2022 Husqvarna TC 85 19/16 Clutch OEM Parts Diagram

Submodel TC 85 Engine - 2022

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CLUTCH

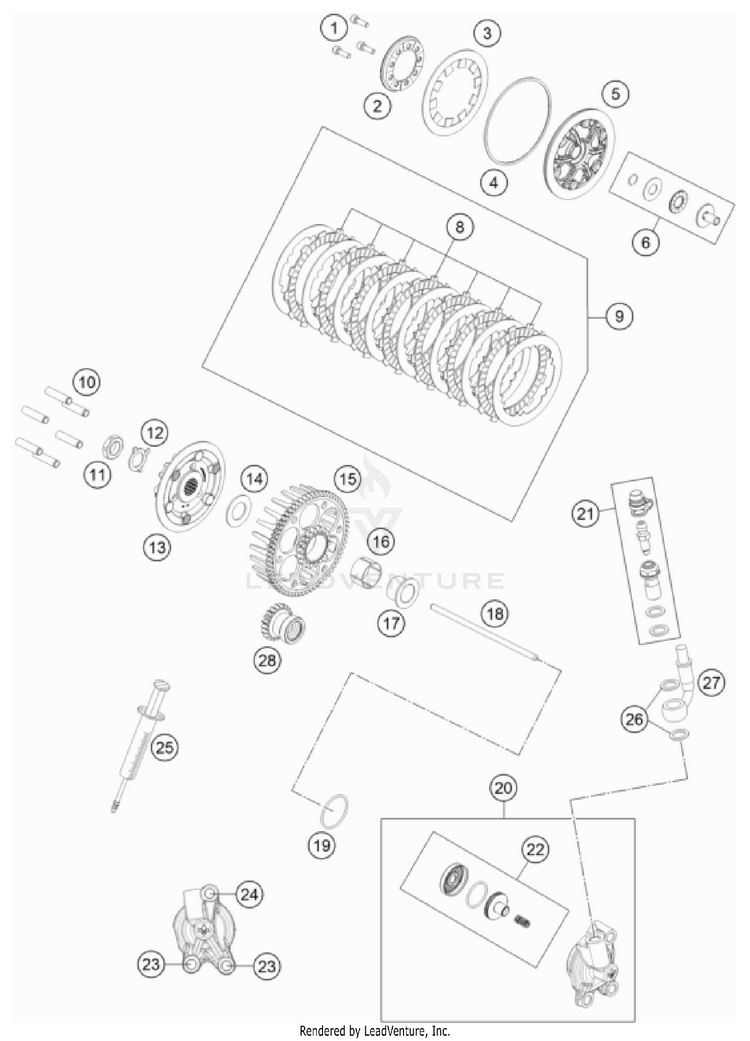

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10912050163AH SCREW DIN0912-M 5X16$1.99$1.6910+ In-Stock
247232006100

(replaces part #
47232006000)

Spring retainer$41.46$35.2410+ In-Stock
347232005000Clutch spring 58x97.1x1.5$37.72$32.0610+ In-Stock
447232013000Inner ring 94x99x1.5$33.76$28.7010+ In-Stock
547232003000coupling pressure plate-$44.0410+ In-Stock
678132057144PRESSURE PIECE CPL.$36.18$30.7510+ In-Stock
847232011000lining disc 1,95mm$24.30$20.6610+ In-Stock
947232010033disc pack$184.79$157.0710+ In-Stock
1050532004100Sleeve 7.95x31.65$3.99$3.3910+ In-Stock
110910001600600S

(replaces part #
47232019000)

Hex nut M 16x1.5$8.90$7.5610+ In-Stock
1247232018000Lock washer$6.59$5.6010+ In-Stock
1347232102000

(replaces part #
47232002100)

Inner clutch hub$45.03$38.28Not Shipping
1447232017000Support disk$12.42$10.5610+ In-Stock
1547232001164clutch basket$277.08$235.5210+ In-Stock
160405263017Needle cage K263017$12.86$10.9310+ In-Stock
1747232015000Collar 20x26x19$11.65$9.9010+ In-Stock
1847232054000Rod$13.74$11.6810+ In-Stock
190770300015O-RING 30,00X1,50 NBR 70$2.99$2.5410+ In-Stock
2072132061044Output cylinder cpl.$220.76$187.6510+ In-Stock
2172032064000BLEEDER SCREW CPL.$37.61$31.9710+ In-Stock
2272032066000PISTON CPL.$76.55$65.07
230025060166HH collar screw M6x16 TX30$2.99$2.5410+ In-Stock
240025060256HH collar screw M6x25 TX30$3.99$3.3910+ In-Stock
2550329050000VENT INJEKTION HYDR. CLUTCH-$72.2710+ In-Stock
260603082121SEAL RING CU DIN7603- 8X12X1$3.99$3.3910+ In-Stock
2747232063000Clutch line$135.73$115.3710+ In-Stock
2847232023020Gear primary drive$110.98$94.336 In-Stock
