2023 Husqvarna 701 ENDURO Handlebar, Controls OEM Parts Diagram

Submodel 701 ENDURO CHASSIS - 2023

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLEBAR, CONTROLS

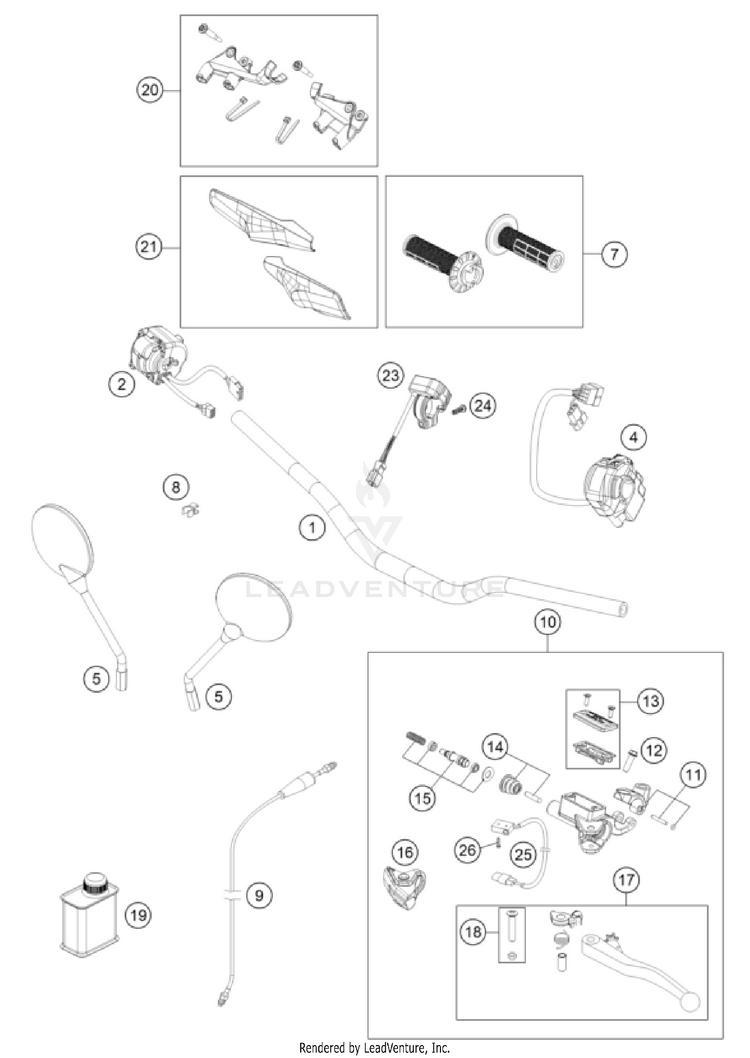

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
17690200100001Handlebar L=808mm, Dk=28.5mm$174.67$148.47Usually ships in 7-10 business days
276011073100START-STOP/E-GAS$408.64$347.34Usually ships in 7-10 business days
476511070100Handlebar switch left$129.46$110.0410+ In-Stock
558412040100mirror, left/right$77.21$65.637 In-Stock
7A63402021000C1Grip Set$32.09$27.286 In-Stock
876913047020Hose bracket$1.99$1.791 In-Stock
9A63432063000

(replaces part #
76032063000)

Coupling line$81.50$69.28Usually ships in 7-10 business days
1027002030044MASTER CYLINDER D=11 MM$596.63$507.14Usually ships in 7-10 business days
1176513005000CLAMP, CYL. PIN, O-RING$81.94$69.6510+ In-Stock
120025060206HH collar screw M6x20 TX30$3.99$3.3910+ In-Stock
1325002033000COVER HYDR. CLUTCH DOT CPL.$39.15$33.2810+ In-Stock
1476502046000PUSH ROD CPL. 13$37.39$31.7810+ In-Stock
1527002032000REP. KIT PISTON DOT 11MM$148.05$125.849 In-Stock
1676502037000PROTECT.CAP FOR LEVER PERCH 13$43.22$36.7410+ In-Stock
1727002031000CLUTCH LEVER CPL.$102.29$86.9510+ In-Stock
1850302038200LEVER SCREW SHORT CPL. 09$26.94$22.9010+ In-Stock
1900062030000BRAKE FLUID DOT5.1 0,25L$15.99$13.5910+ In-Stock
2076902079044Mounting kit handguard$34.75$29.54Usually ships in 7-10 business days
2125102082044ABHandguard cmpl.$27.19$23.1110+ In-Stock
2376939074000Ignition curve switch$234.95$199.71Usually ships in 7-10 business days
240081250181SCREW FOR PLASTIC 50X18 T20$1.99$1.6910+ In-Stock
2583111049000CLUTCH SWITCH ATV$125.28$106.49Usually ships in 7-10 business days
260985030103FLAT HEAD SCREW DIN7985 M3x1$6.15$5.54Usually ships in 7-10 business days
