2023 Husqvarna EE 3 Front Fork Disassembled OEM Parts Diagram

Submodel EE 3 CHASSIS - 2023

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

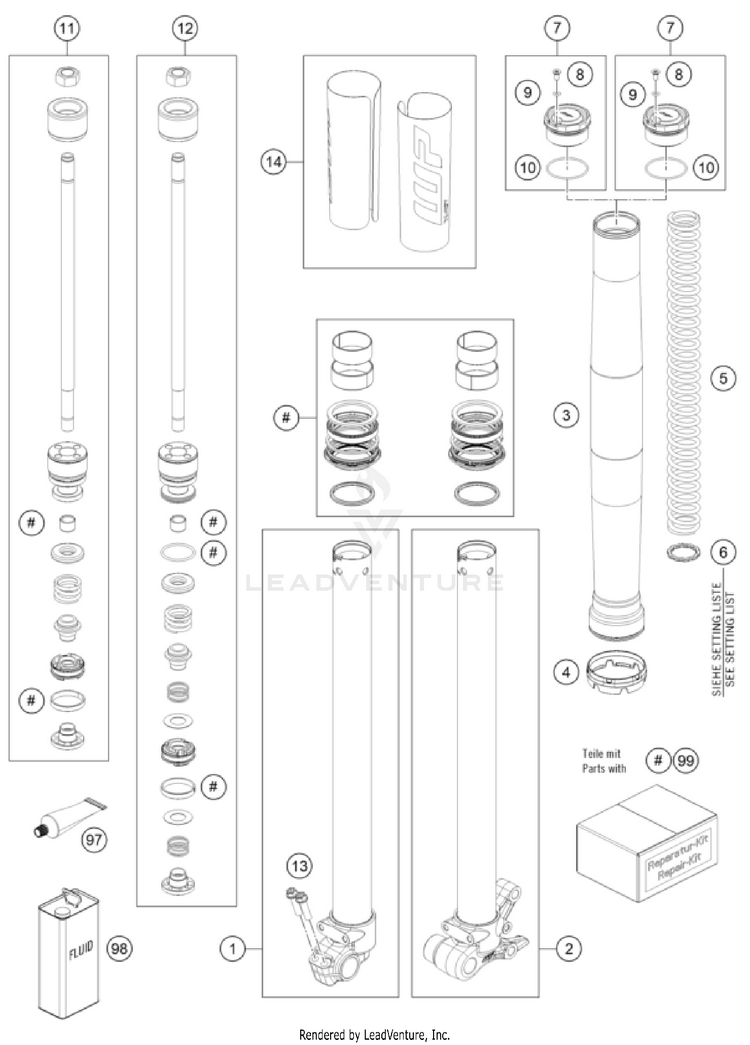

FRONT FORK DISASSEMBLED

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1S443500003S0200Axle-clamp right cpl. E3 MY2023$364.75$310.04Usually ships in 7-10 business days
2S443500000S0200Axle-clamp left cpl. E3 MY2023$381.91$324.62Usually ships in 7-10 business days
335480585Fork outer tube 36x425 dt42 db47$196.12$166.70Usually ships in 7-10 business days
435480623Fork protection ring 48,4mm$2.41$2.0510+ In-Stock
5S80990001100000main spring (29.0) 4.0-330 fork$698.38$593.62Usually ships in 7-10 business days
635480497Washer 22x30x2,5$1.20$1.0210+ In-Stock
735480602SScrew cap M38x1,5 cpl.$61.81$52.541 In-Stock
800700007ISA Senkkopfschraube M4x8 lt. Zchng$1.20$1.0210+ In-Stock
950180222O-ring 4x1,5 NBR70$1.20$1.0210+ In-Stock
1046180581O-ring 35x1,5 NBR70 yellow$2.41$2.0510+ In-Stock
11S501200015S0200Piston rod ri. with seal support cpl.$155.86$132.48Usually ships in 7-10 business days
12S501200015S0300Piston rod le. with main jet cpl.$137.38$116.77Usually ships in 7-10 business days
1300250610HH collar screw M6x25$0.39$0.35Usually ships in 7-10 business days
1452000220SETSticker set XACT 140x141$36.62$31.134 In-Stock
97T14034Fuchs grease IPR (250g) | ON DEMAND$40.69$34.5910+ In-Stock
9848601166S1FORK OIL SAE4 5L | ON DEMAND$175.99$149.5910+ In-Stock
99RP10028T

(replaces part #
RP10028)

Repair kit 35mm black 50SX/TC Mini | ON DEMAND$92.39$78.537 In-Stock
