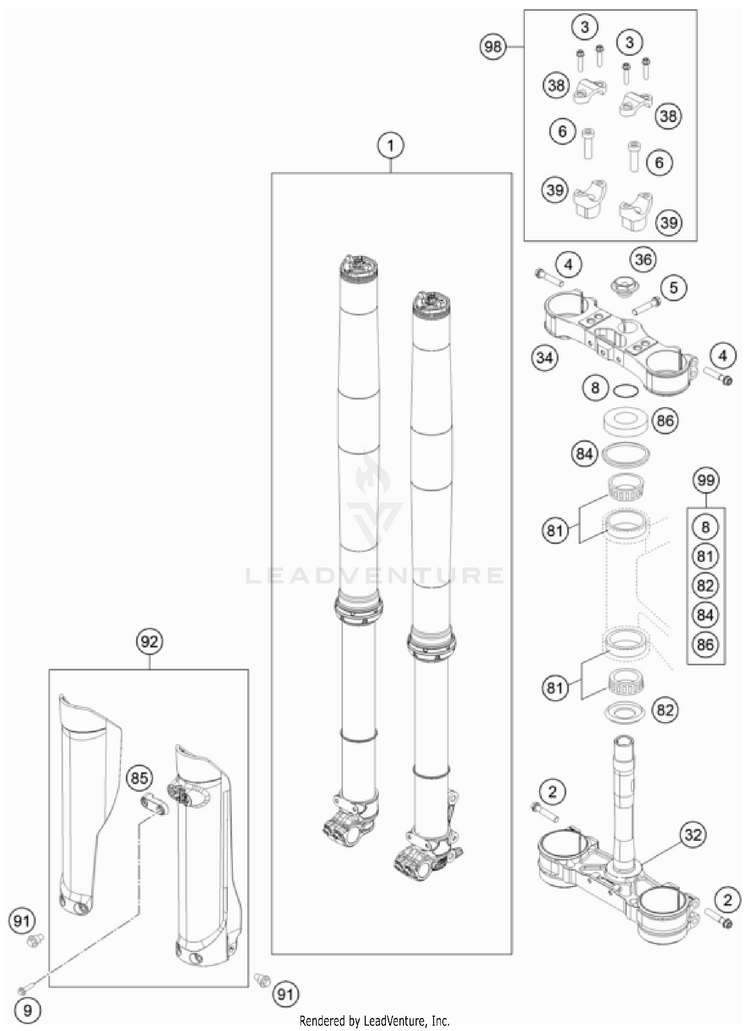

2023 Husqvarna FE 350 S Front Fork, Triple Clamp OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	0266C169V401000	Fork HQV 350/350s/450/501/501s FE 22	$2,652.29	$2,652.29	Usually ships in 7-10 business days
2	0025080506	HH collar screw M8x50 TX40	$3.62	$3.08	10+ In-Stock
3	0025080256	HH collar screw M8x25	$2.41	$2.05	10+ In-Stock
4	0025080406	HH COLLAR SCREW M8X40 TX40	$4.83	$4.11	10+ In-Stock
5	0015080256S	HH COLLAR SCREW M8X25 WS=10	$3.62	$3.08	10+ In-Stock
6	0032100356S	AH-COLLAR SCREW M10X35 ISA45	$4.99	$4.24	10+ In-Stock
8	0770025035	O-RING 25X3,55 NBR70 05	$1.99	$1.69	10+ In-Stock
9	0017060206	SCREW F. PLASTIC K60X20AL SW6	$3.99	$3.39	10+ In-Stock
32	77701232022C1	Bottom triple clamp cmpl.	$400.06	$340.05	Usually ships in 7-10 business days
34	77701134122C1	Top triple clamp X=22ámm	$311.95	$265.16	Usually ships in 7-10 business days
36	70009082000	AXLESCREW M20X1.5 SW17	$11.10	$9.44	10+ In-Stock
38	77201038000	HANDLEBAR CLAMP 28MM	$29.47	$25.05	10+ In-Stock
39	59401039032	HANDLEB.SUPP. D=28MM H=32MM 05 \| ON DEMAND	$43.00	$36.55	10+ In-Stock
39	59401039037	HANDLEB.SUPP. D=28MM H=37MM 05	$40.14	$34.12	10+ In-Stock
39	59401039042	HANDLEB.SUPP. D=28MM H=42MM 05 \| ON DEMAND	$42.67	$36.27	5 In-Stock
81	54201081100	TAPERED ROLLER BEARING CPL. 06	$60.05	$51.04	10+ In-Stock
82	77701084000	O-RING SUPPORT W. SEALING LIP	$22.76	$19.35	10+ In-Stock
84	54601184000	STEARING HEAD GASKET TOP	$8.35	$7.10	10+ In-Stock
85	25001085100AB	Clamp for brake line	$2.99	$2.54	3 In-Stock
86	78101086000	STEERING HEAD COVER	$7.14	$6.07	10+ In-Stock
91	59001092050	SPECIAL SCREW M6X12,5 WS=8	$2.99	$2.54	10+ In-Stock
92	25001094100ABD	Fork protection kit TE/FEáá 23	$82.69	$70.29	Usually ships in 7-10 business days
98	00050000921	HANDLEBAR SUPPORT KIT D28/H37 \| ON DEMAND	$127.15	$108.08	10+ In-Stock
99	54201081144 (replaces part # 00050000930)	Stearing Head repair kit \| ON DEMAND	$104.71	$89.00	10+ In-Stock
