2023 Husqvarna FE 501 S Front Brake Control OEM Parts Diagram

Submodel FE 501s CHASSIS - 2023

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT BRAKE CONTROL

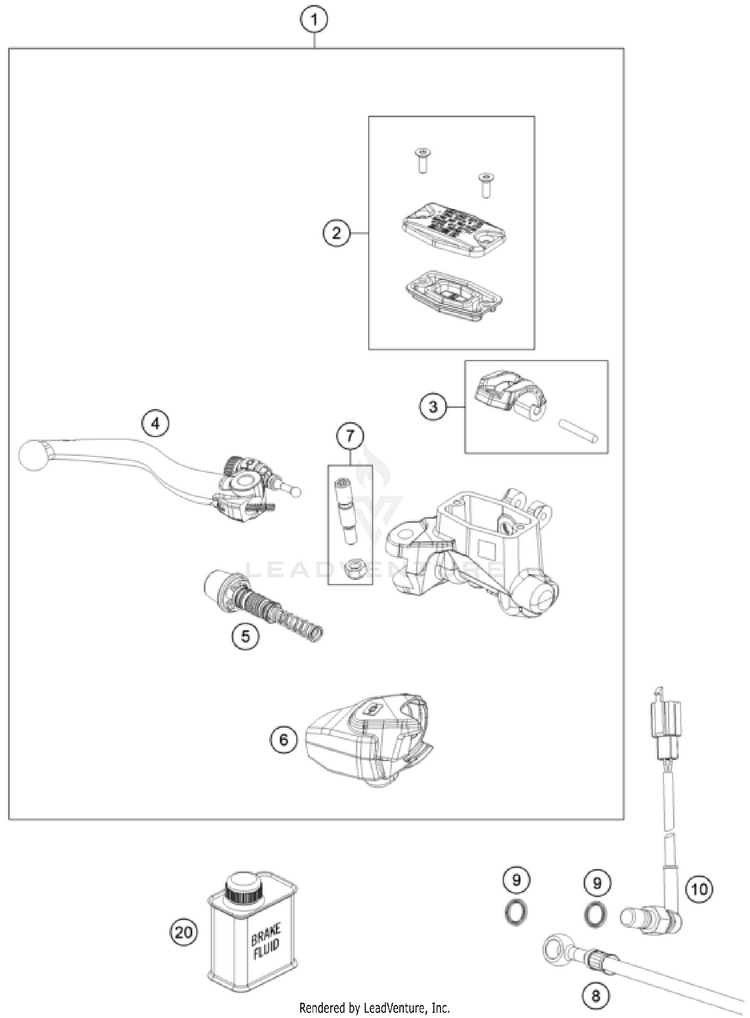

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1A54013001144

(replaces part #
A54013001044)

Front master cylinder$368.93$313.598 In-Stock
2A54002003100

(replaces part #
A54002003000)

clutch reservoir kit$17.15$14.5810+ In-Stock
3A54013005000clamp kit$30.68$26.0810+ In-Stock
4A54013002144

(replaces part #
A54013002044)

Handbrake lever$72.70$61.8010+ In-Stock
5A54013008000brake cylinder repair kit$60.16$51.1410+ In-Stock
6A54013004000brake lever boot$13.30$11.3010+ In-Stock
7A54013060000Lever screw$12.99$11.0410+ In-Stock
8A54013010000front brake hose$79.99$67.9910+ In-Stock
90603100141sealing ring DIN 7603 10x14x1$2.99$2.5410+ In-Stock
1050311051100BRAKE LIGHT SWITCH REAR '98$43.44$36.9210+ In-Stock
2000062030000BRAKE FLUID DOT5.1 0,25L$15.99$13.5910+ In-Stock
