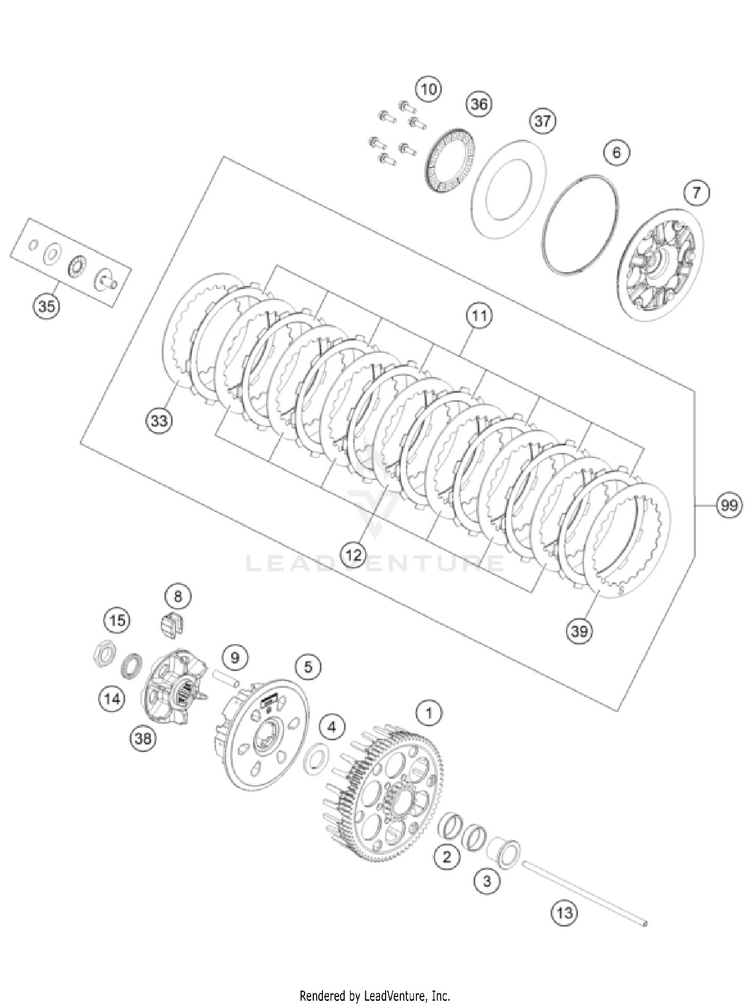

2023 Husqvarna FS 450 Clutch OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	A46032001072	Outer clutch hub	$224.72	$191.01	10+ In-Stock
2	0405252910	NEEDLE BEAR K 25X29X10	$10.44	$8.87	10+ In-Stock
3	A46032015000	Collar sleeve	$16.05	$13.64	10+ In-Stock
4	78932009000	WASHER 22 X 36,5 X 3	$9.12	$7.75	10+ In-Stock
5	78132002400	Inner clutch hub	$120.66	$102.56	10+ In-Stock
6	78132013000	WASHER 112X118X1.5	$12.75	$10.84	10+ In-Stock
7	79432003100	Clutch pressure plate	$27.93	$23.74	10+ In-Stock
8	78132025100	DAMPING RUBBER	$4.99	$4.24	10+ In-Stock
9	77232104000	Sleeve, 7.95x38	$3.99	$3.39	10+ In-Stock
10	0025050166	HH collar screw M5x16 TX30	$2.99	$2.54	10+ In-Stock
11	79532011000	Lining disc 1,95mm	$26.39	$22.43	10+ In-Stock
12	59032010200	INTERMEDIATE DISC 1,4MM 2002	$12.86	$10.93	10+ In-Stock
13	A48032054000	Push rod	$8.90	$7.56	10+ In-Stock
14	0252012002900	Wedge lock washer 19.5x29x3.4	$3.99	$3.39	10+ In-Stock
15	0936181506	Hex nut DIN0936-M18x1.5 right	$3.99	$3.39	10+ In-Stock
33	59032010100	INTERMEDIATE DISC 1MM 2002	$11.54	$9.81	10+ In-Stock
35	78132057144	PRESSURE PIECE CPL.	$36.18	$30.75	10+ In-Stock
36	78132006200	Spring retainer	$12.75	$10.84	10+ In-Stock
37	78932005000	BELLEV. SPR. 71X115X1,6IO=4.74	$73.69	$62.64	10+ In-Stock
38	78132002211	Clutch center	$78.97	$67.12	10+ In-Stock
39	78932010000	INTERMEDIATE DISC 1MM	$14.18	$12.05	10+ In-Stock
99	79532010033	CLUTCH DISC PACKAGE	$246.06	$209.15	10+ In-Stock
