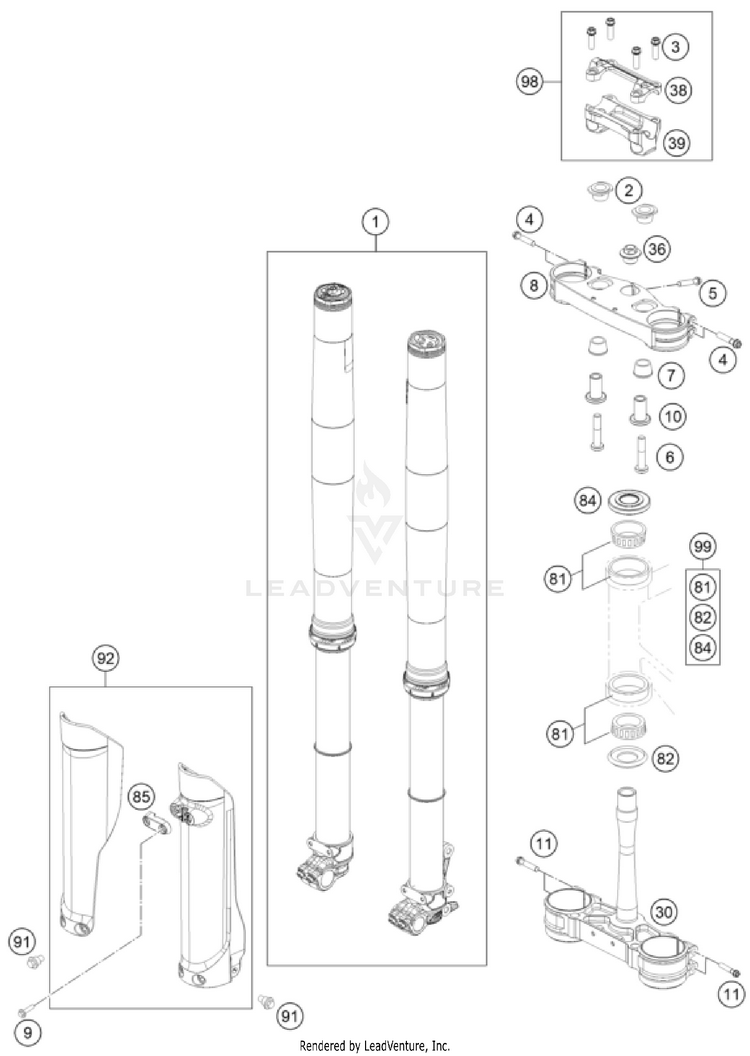

2023 Husqvarna FX 350 Front Fork, Triple Clamp OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	A460C177W406000	Fork KTM 350 XC-F 2023 US	$2,619.11	$2,619.11	Usually ships in 7-10 business days
2	A46001035001	Rubber bushing	$1.99	$1.69	10+ In-Stock
3	0025080256	HH collar screw M8x25	$2.41	$2.05	10+ In-Stock
4	0025080406	HH COLLAR SCREW M8X40 TX40	$4.83	$4.11	10+ In-Stock
5	0015080256S	HH COLLAR SCREW M8X25 WS=10	$3.62	$3.08	10+ In-Stock
6	0035100509S	AH-COLLAR SCREW M10X50 ISA45	$8.35	$7.10	10+ In-Stock
7	83001040000	RUBBER BUSH	$6.15	$5.23	10+ In-Stock
8	A46001134022C1 (replaces part # A46001034022C1)	Triple clamp top X=22mm	$369.15	$313.78	Usually ships in 7-10 business days
9	0017060206	SCREW F. PLASTIC K60X20AL SW6	$3.99	$3.39	10+ In-Stock
10	A46001039034	HANDLEBAR SUPPORT LOWER PART	$31.23	$26.55	10+ In-Stock
11	0025080506	HH collar screw M8x50 TX40	$3.62	$3.08	10+ In-Stock
30	A46001132022C1 (replaces part # A46001032022C1)	Bottom triple clamp, cmpl. X=22mm	$459.68	$390.73	1 In-Stock
36	70009082000	AXLESCREW M20X1.5 SW17	$11.10	$9.44	10+ In-Stock
38	79001038000	HANDLEBAR CLAMP 28MM	$81.61	$69.37	10+ In-Stock
39	A48001039036	Handlebar mount D28ámm-H36ámm	$68.74	$58.43	10+ In-Stock
81	54201081100	TAPERED ROLLER BEARING CPL. 06	$60.05	$51.04	10+ In-Stock
82	77701084000	O-RING SUPPORT W. SEALING LIP	$22.76	$19.35	10+ In-Stock
84	A46001086000	Steering head seal	$26.39	$22.43	10+ In-Stock
85	77701085100DB	Clamp for brake hose	$3.99	$3.39	6 In-Stock
91	59001092050	SPECIAL SCREW M6X12,5 WS=8	$2.99	$2.54	10+ In-Stock
92	A46001094000DBA	fork protector kit MX 2023	$55.09	$46.83	10+ In-Stock
98	A48001039010	handlebar mount kit D28mm-H36mm \| ON DEMAND	$143.54	$122.01	10+ In-Stock
99	A46001081044	Repair Kit steering head bearing \| ON DEMAND	$115.38	$98.07	10+ In-Stock
