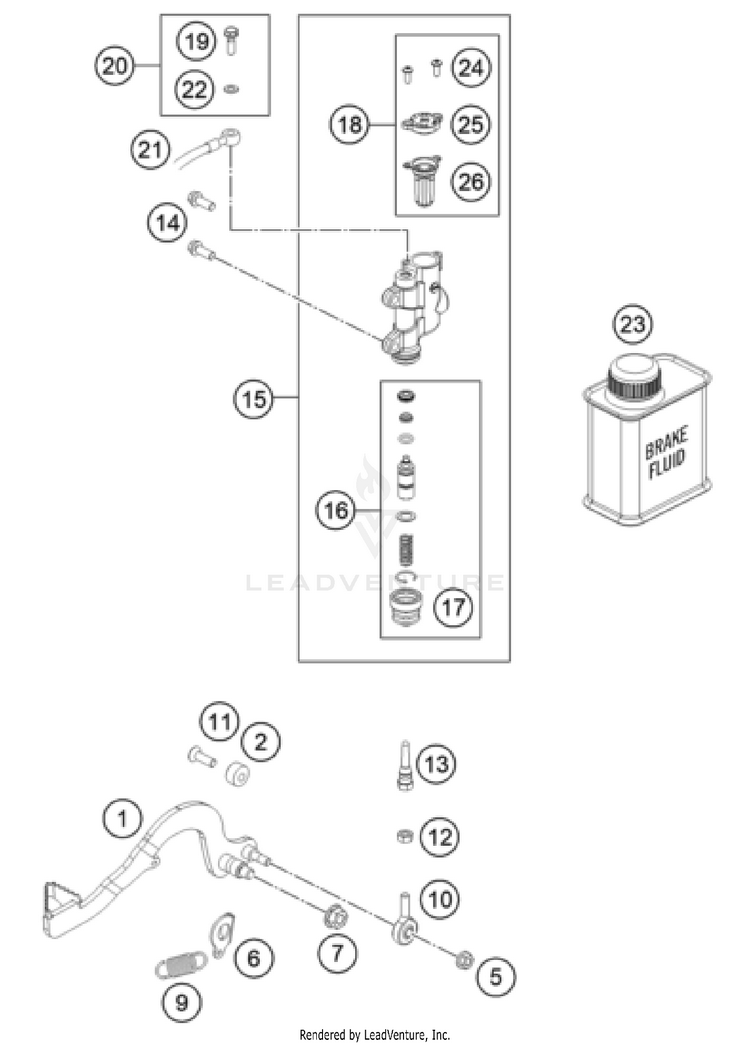

2024 Husqvarna EE 5 Rear Brake Control OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	45213050044 (replaces part # 45213050000)	brake pedal cpl. 50 SX '09	$135.62	$115.28	10+ In-Stock
2	45203063000	BRAKE LEVER STOP	$32.55	$27.67	3 In-Stock
5	56509064100	SELF LOCKING NUT M6 10.9	$2.99	$2.54	10+ In-Stock
6	45213053000	LOCK WASHER 50 SX	$7.58	$6.44	10+ In-Stock
7	54310086200	SELF LOCKING NUT M8 10.9	$3.99	$3.39	10+ In-Stock
9	54603062200	Return spring for brake lever	$7.69	$6.54	10+ In-Stock
10	46213055000	SWIVEL HEAD KA6 INNOX	$51.36	$43.66	10+ In-Stock
11	0991060202	FLAT HEAD DIN7991-M 6X20	$2.99	$2.54	10+ In-Stock
12	0934060003	hex nut DIN 934 M6	$1.99	$1.69	10+ In-Stock
13	46213056000	PUSH ROD	$14.84	$12.61	10+ In-Stock
14	0025060166	HH collar screw M6x16 TX30	$2.99	$2.54	10+ In-Stock
15	47213060044	Complete master cylinder	$233.52	$198.49	10+ In-Stock
16	47013061100	REP. SET PISTON REAR D=12 2004	$88.76	$75.45	10+ In-Stock
17	47213063000	Dust cover	$6.15	$5.23	10+ In-Stock
18	47213062000	Membrane kit	$22.54	$19.16	Usually ships in 7-10 business days
19	47013025000	HOLLOW SCREW BRAKE CYLINDER 03	$12.75	$10.84	10+ In-Stock
20	47213025000	Screw kit	$22.21	$18.88	4 In-Stock
21	A40013070100 (replaces part # A40013070000)	Brake line rear	$112.52	$95.64	1 In-Stock
22	0770080019	O-RING 8,00X1,00 FORMULA	$2.99	$2.54	10+ In-Stock
23	00062030000	BRAKE FLUID DOT5.1 0,25L	$15.99	$13.59	10+ In-Stock
24	0912040103	AH.SCREW DIN0912-M 4X10	$2.99	$2.54	10+ In-Stock
25	47013062000	CYLINDER COVER REAR 85 SX 03	$10.44	$8.87	10+ In-Stock
26	47013063000	GASKET CYLINDER COVER REAR 03	$12.64	$10.74	10+ In-Stock
