2024 Husqvarna FC 450 Clutch Control OEM Parts Diagram

Submodel FC/FX 450 ENGINE - 2024

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CLUTCH CONTROL

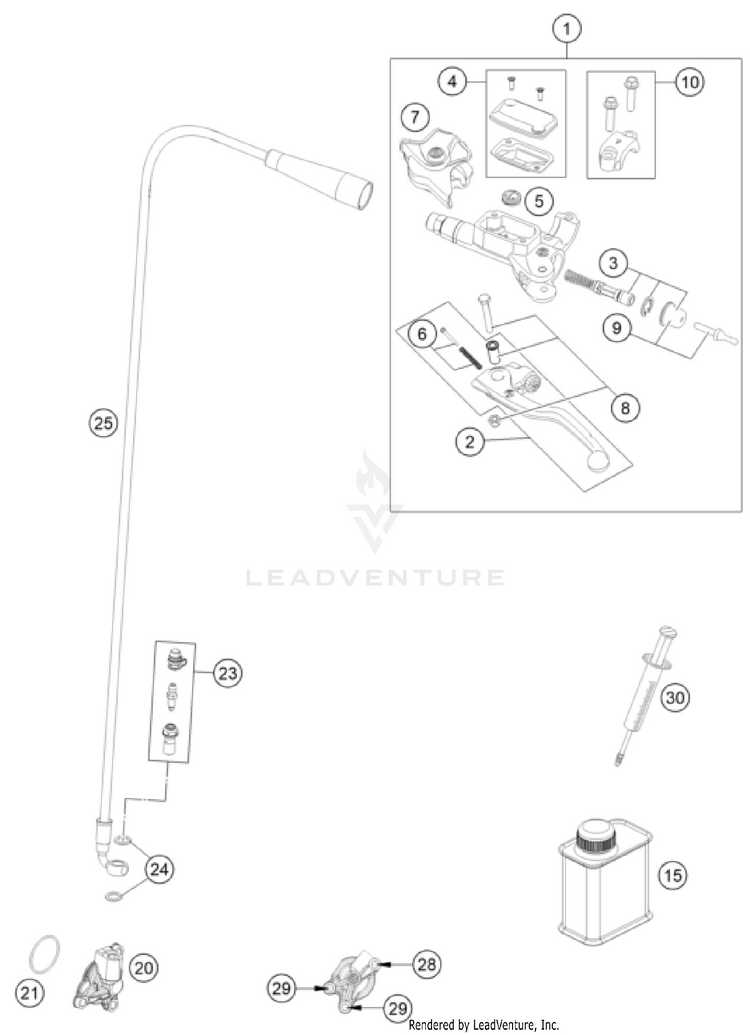

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
154802030144MASTER CYLINDER CPL.$283.02$240.5710+ In-Stock
254802031000CLUTCH LEVER CPL. BREMBO 06$45.99$39.0910+ In-Stock
354802032000REP. KIT PISTON 06$58.73$49.9210+ In-Stock
45480200310030COVER HYD. CLUTCH CPL. 2014$43.88$37.3010+ In-Stock
554802051000VALVE$22.54$19.1610+ In-Stock
654802052000BOLT KPL.$22.99$19.5410+ In-Stock
754802037000PROTECTION CAP 06$24.63$20.9410+ In-Stock
854802038100LEVER SCREW CPL. 06$29.99$25.4910+ In-Stock
954802046000PUSH ROD CPL.$16.99$15.0910+ In-Stock
1054802005100CLAMP CPL. 06$30.35$25.8010+ In-Stock
1500062030000BRAKE FLUID DOT5.1 0,25L$15.99$13.5910+ In-Stock
2079232061044OUTPUT CYLINDER CPL.$220.76$187.6510+ In-Stock
210770300015O-RING 30,00X1,50 NBR 70$2.99$2.5410+ In-Stock
2379032064000BLEEDER SCREW CPL.$35.74$30.3810+ In-Stock
240603082121SEAL RING CU DIN7603- 8X12X1$3.99$3.3910+ In-Stock
25A49032063000clutch hose$80.84$68.7110+ In-Stock
280025060406HH collar screw M6x40 TX30$3.99$3.3910+ In-Stock
290025060166HH collar screw M6x16 TX30$2.99$2.5410+ In-Stock
3050329050000VENT INJEKTION HYDR. CLUTCH-$72.2710+ In-Stock
