2024 Husqvarna FE 350 S Instruments / Lock System OEM Parts Diagram

Submodel FE 350s CHASSIS - 2024

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INSTRUMENTS / LOCK SYSTEM

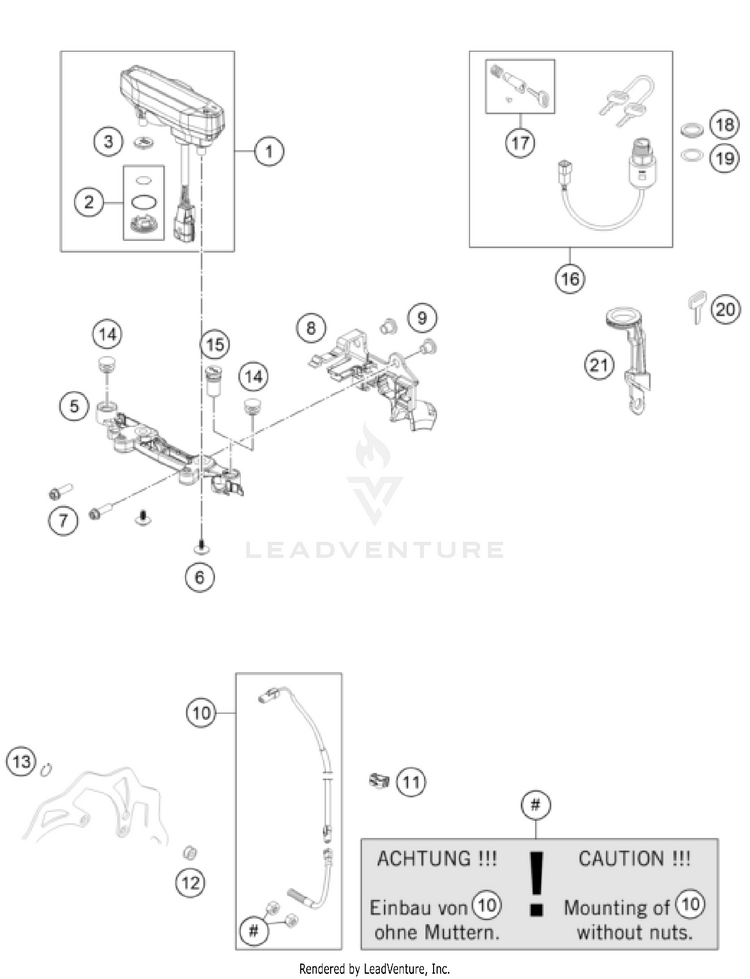

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1A49014069000Dashboard$266.52$226.5410+ In-Stock
277714069010BATTERY COVER F. SPEEDOMETER$38.71$32.904 In-Stock
358314068000BATTERY F. SPEEDOM. M.A.E. 02$11.54$9.8110+ In-Stock
5A49014060000Instrument cluster$18.36$15.6110+ In-Stock
60081645121EJOT DELTA PT SCREW 45X12-Z$1.99$1.6910+ In-Stock
70025060206HH collar screw M6x20 TX30$3.99$3.3910+ In-Stock
8A49011083000Connector support$21.33$18.1310+ In-Stock
977714060050Distanzbüchse Tachohalterung$0.00$0.00Not Shipping
1054814068100CABLE FOR DIGITAL SPEEDOM. 06$92.83$78.9110+ In-Stock
1183013026000CABLE GUIDE$3.99$3.3910+ In-Stock
1254814069050MAGNET FOR DIGITAL SPEEDOM. 03$23.75$20.1910+ In-Stock
130471009104CIRCLIP DIN0471- 9X1 INOX$2.99$2.5410+ In-Stock
1450210086000COVERING CAP SFL16$3.99$3.3910+ In-Stock
1558011024300FLASHER INDICAT.LIGHT GREEN'98$7.91$6.7210+ In-Stock
1626511065000Ignition switch and steering lock$81.06$68.9010+ In-Stock
1778003035100Steering lock$24.63$20.948 In-Stock
1850311066050IGNITION LOCK NUT M24X1$7.36$6.2610+ In-Stock
1958411066450WASHER F. IGNITION LOCK 03$6.37$5.4110+ In-Stock
2040011166200KEY BLANK BLACK ''T'' GRIP | ON DEMAND$10.33$8.7810+ In-Stock
2179611065050IGNITION LOCK BRACKET$9.78$8.3110+ In-Stock
