2024 Husqvarna FS 450 Exhaust System OEM Parts Diagram

Submodel FS 450 CHASSIS - 2024

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST SYSTEM

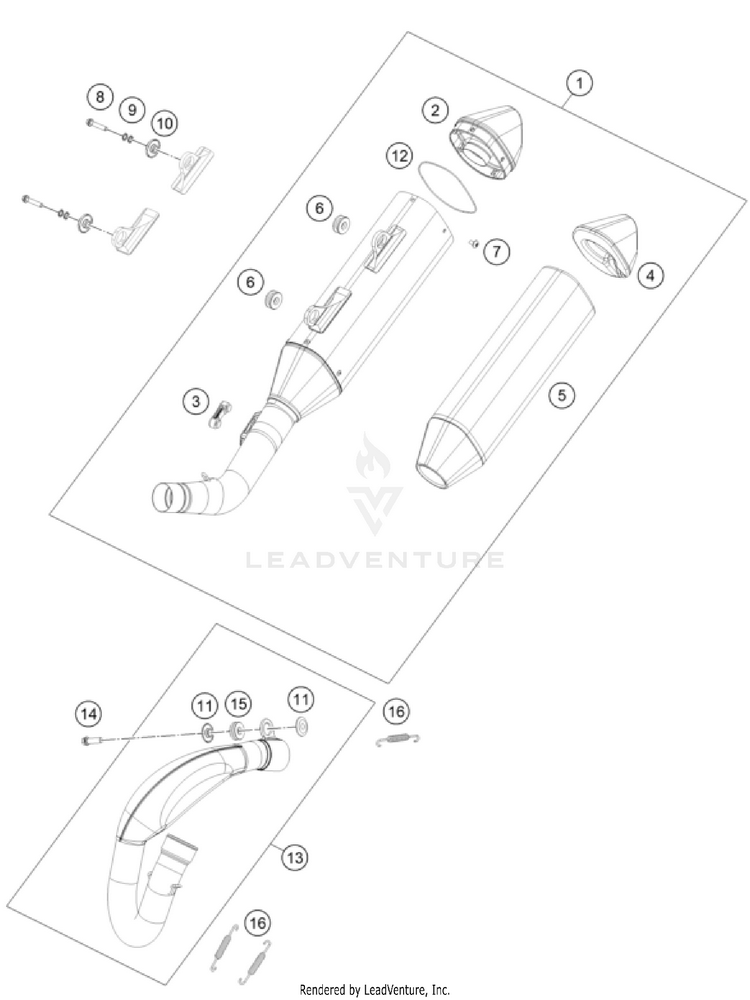

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1A37005079033Silencer 350/450 FC pre-assembly$767.02$651.97Usually ships in 7-10 business days
2A47005079060endcap cpl.$119.56$101.63Usually ships in 7-10 business days
379105098000exhaust spacer$6.48$5.5110+ In-Stock
4A46005078080Rockwool preformed$19.57$16.6310+ In-Stock
579305078520Rockwool preformed$94.37$80.212 In-Stock
677205068000DAMP. COMPON. BLACK$7.69$6.5410+ In-Stock
778105081010SCREW TORX M5X10$2.99$2.5410+ In-Stock
80025060306HH collar screw M6x30 TX30$3.99$3.3910+ In-Stock
950233041000PAIR OF WASHERS M 6 NORDLOCK$4.99$4.2410+ In-Stock
1077205169000BUSHING 7.5x12x28x8.3 11$4.99$4.2410+ In-Stock
1177805069000BUSHING 8.5x12x28x8.3$7.03$5.9810+ In-Stock
120770800021O-RING 80,00X2,00 VITON$8.13$6.9110+ In-Stock
13A48005007033Header KTM 450 SXF$333.29$283.30Usually ships in 7-10 business days
140025080256HH collar screw M8x25$2.41$2.0510+ In-Stock
1579105068000Damper gray$6.99$5.9410+ In-Stock
16A46005016000Tension spring L=65mm$5.38$4.5710+ In-Stock
