2024 Husqvarna FS 450 Water Pump OEM Parts Diagram

Submodel FS 450 ENGINE - 2024

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

WATER PUMP

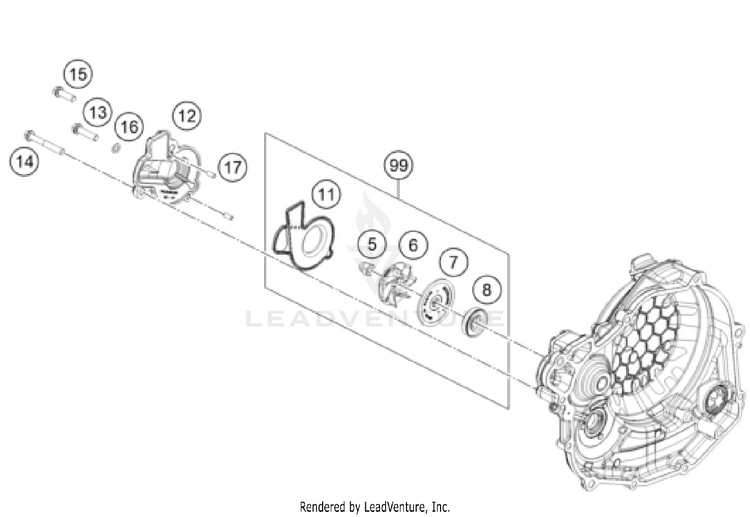

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
561230045000CAP NUT M6 STAINLESS STEEL$2.09$2.0910+ In-Stock
681235055020WATER PUMP ROTOR$11.87$10.0910+ In-Stock
781235055110DISC WATER PUMP$6.15$5.2310+ In-Stock
80760123073SHAFT SEAL RING 12X30X7 PTFE$14.73$12.5210+ In-Stock
1179435053100Gasket with carrier plate$28.26$24.0210+ In-Stock
1279435052000WATER PUMP COVER$24.41$20.754 In-Stock
130025060256HH collar screw M6x25 TX30$3.99$3.3910+ In-Stock
140025060456HH COLLAR SCREW M6X45 TX30$2.99$2.5410+ In-Stock
150025060206HH collar screw M6x20 TX30$3.99$3.3910+ In-Stock
160603061001CU-SEAL RING DIN7603-6X10X1$2.99$2.5410+ In-Stock
170402040980NEEDLE ROL.DIN5402 NRB 4X9,8$3.99$3.3910+ In-Stock
9979435055015WATER PUMP REP. KIT | ON DEMAND$64.45$54.7810+ In-Stock
