2024 Husqvarna TC 50 Ignition System OEM Parts Diagram

Submodel TC 50 ENGINE - 2024

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

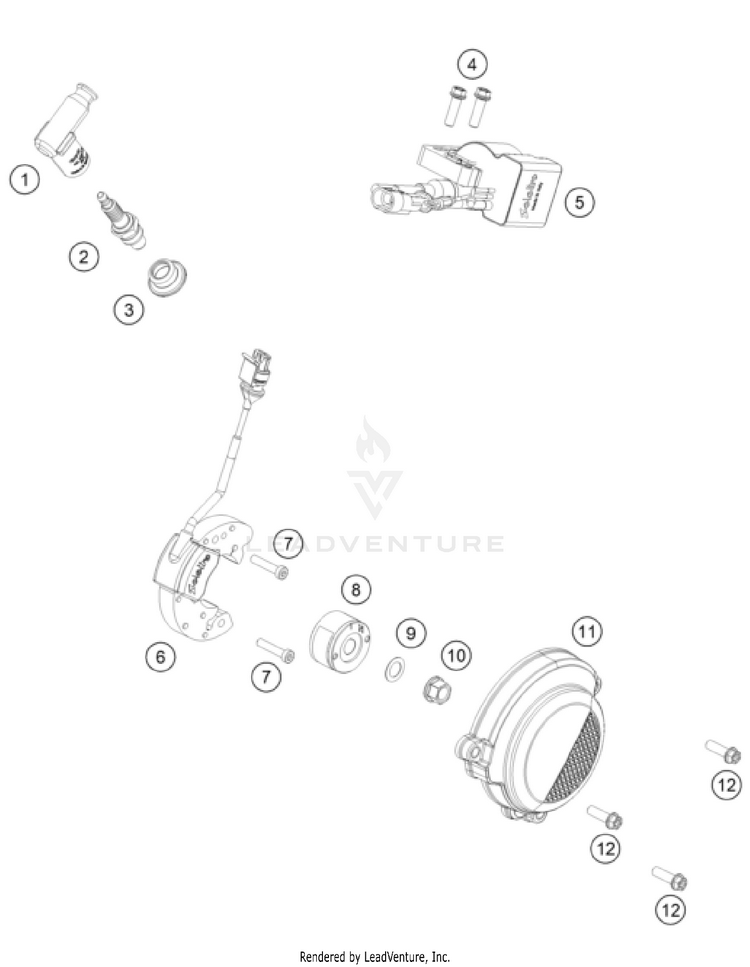

IGNITION SYSTEM

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
146239190000Spark plug connector$40.14$34.1210+ In-Stock
2A40039993010Factory spark plug | ON DEMAND$33.99$33.9410+ In-Stock
2A40039093010Spark plug$5.71$4.8510+ In-Stock
3A40539091000Sealing boot$10.99$9.3410+ In-Stock
40025060206SHH collar screw M6x20 TX30$2.99$2.5410+ In-Stock
5A40039006000Ignitionácoil$358.81$304.9910+ In-Stock
6A40039004000Stator 50ácc$241.55$205.3210+ In-Stock
70012050253SBolt DIN 6912 - M5x25 SS$1.99$1.6910+ In-Stock
8A40039005000Rotor 50ácc$98.77$83.953 In-Stock
945132020000WASHER 10,4X16,8X0,4$4.99$4.2410+ In-Stock
1058414030000HH COLLAR NUT M10X1,25 WS=13$2.99$2.5410+ In-Stock
11A40030002000Ignition cover$25.07$21.311 In-Stock
120025060206HH collar screw M6x20 TX30$3.99$3.3910+ In-Stock
