2025 Husqvarna FE 450 Ignition System OEM Parts Diagram

Submodel FE 450 US ENGINE - 2025

Shop Aftermarket Parts

IGNITION SYSTEM

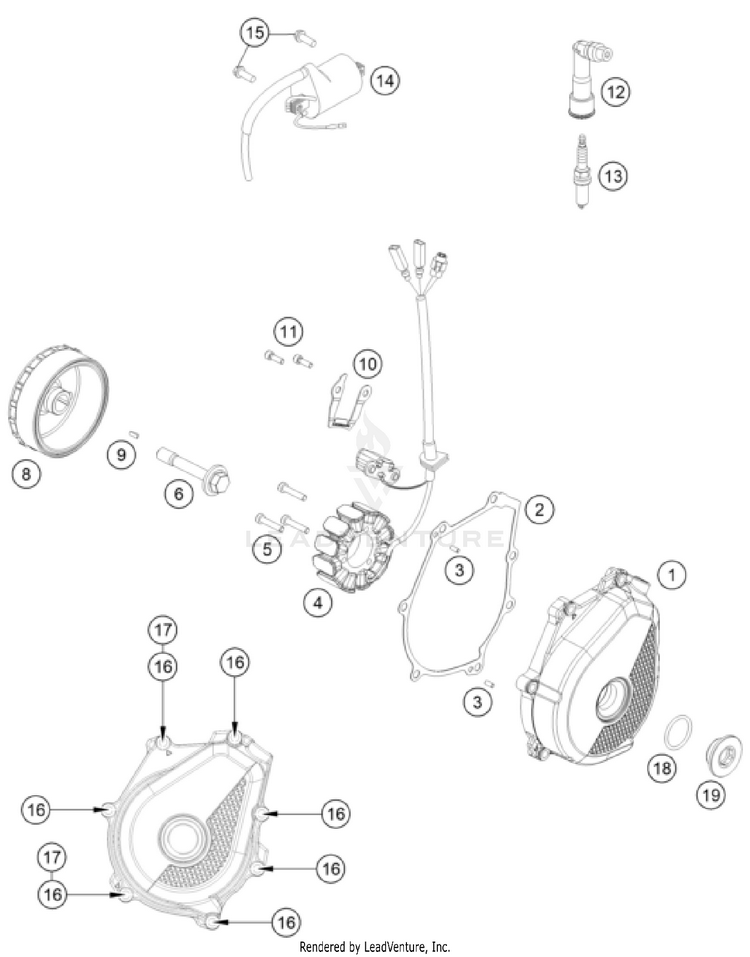

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1A48030502000C1Ignition cover$110.54$93.9610+ In-Stock
2A48030040000Ignition cover gasket$9.45$8.0310+ In-Stock
30402040980NEEDLE ROL.DIN5402 NRB 4X9,8$3.99$3.3910+ In-Stock
479239104100Stator$266.74$226.7310+ In-Stock
50012050303SCap head screw DIN 6912 - M5x30 self loc$1.99$1.6910+ In-Stock
677339010100FLYWHEEL SCREW$6.59$5.6010+ In-Stock
878039205100Rotor$186.33$158.38Usually ships in 7-10 business days
90888030037WOODRUFF KEY DIN6888-3X3,7$2.99$2.5410+ In-Stock
10A46030502050Cable retainer$4.99$4.244 In-Stock
110912050163SCap head screw DIN912 - M5x16 - 8.8$1.99$1.6910+ In-Stock
1279539190000

(replaces part #
79539090000)

Spark plug connector$60.27$51.2310+ In-Stock
1379739093000Spark plug$42.56$36.1810+ In-Stock
1458439006000IGNITIONCOIL IG3826 KOKUSAN'96$88.76$75.4510+ In-Stock
150026060186COLLAR SCREW M6X18 ISA30$1.99$1.69Not Shipping
160025060256HH collar screw M6x25 TX30$3.99$3.3910+ In-Stock
170603061001CU-SEAL RING DIN7603-6X10X1$2.99$2.5410+ In-Stock
1807700240251o-ring 24.00x2.50 Viton$3.99$3.3910+ In-Stock
197723000216030SCREW PLUG M24X1,5$43.11$36.6410+ In-Stock
