FRONT FORK, TRIPLE CLAMP

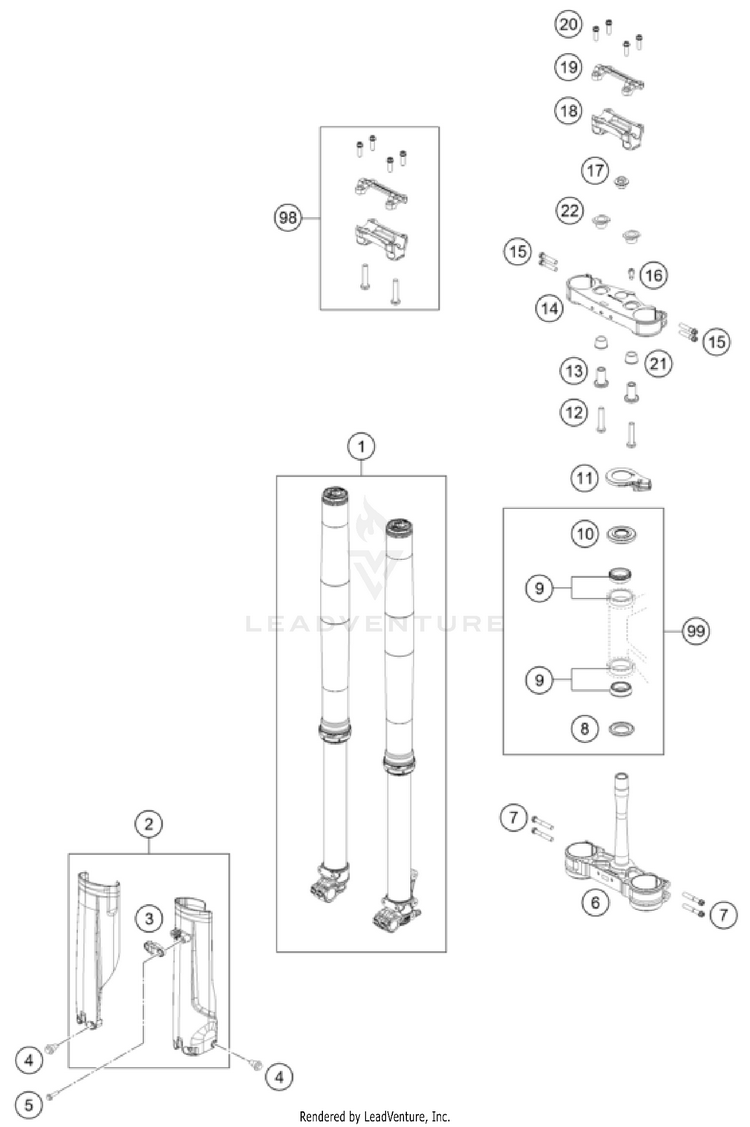

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1SPNONon orderable part | A390C167Z402000$0.00$0.00Not Shipping
2A46001094000ABJfork protector kit TC/FC/TX 26 | with decal$72.99$62.04Usually ships in 7-10 business days
377701085100ABCLAMP FOR BRAKE HOSE$2.99$2.5410+ In-Stock
459001092050SPECIAL SCREW M6X12,5 WS=8$2.99$2.5410+ In-Stock
50017060206SCREW F. PLASTIC K60X20AL SW6$3.99$3.3910+ In-Stock
6A46001132022C1Bottom triple clamp, cmpl. X=22mm$459.68$390.731 In-Stock
70025080506HH collar screw M8x50 TX40$3.62$3.0810+ In-Stock
877701084000O-RING SUPPORT W. SEALING LIP$22.76$19.3510+ In-Stock
954201081100TAPERED ROLLER BEARING CPL. 06$60.05$51.0410+ In-Stock
10A46001086000Steering head seal$26.39$22.4310+ In-Stock
11A49002065000Steering lock$49.38$41.97Usually ships in 7-10 business days
120035100509SAH-COLLAR SCREW M10X50 ISA45$8.35$7.1010+ In-Stock
13A46001039034

(replaces part #
A46001139034)

HANDLEBAR SUPPORT LOWER PART$31.23$26.5510+ In-Stock
14A46001134022C1Triple clamp top X=22mm$369.15$313.78Usually ships in 7-10 business days
150025080406HH COLLAR SCREW M8X40 TX40$4.83$4.1110+ In-Stock
160015080256SHH COLLAR SCREW M8X25 WS=10$3.62$3.0810+ In-Stock
17A46009082000Collar screw M20x1.5 SW17 Al$3.99$3.3910+ In-Stock
18A48001039036

(replaces part #
A48001139036)

Handlebar mount D28ámm-H36ámm$68.74$58.4310+ In-Stock
1979001038000HANDLEBAR CLAMP 28MM$81.61$69.3710+ In-Stock
200025080256HH collar screw M8x25$2.41$2.0510+ In-Stock
2183001040000RUBBER BUSH$6.15$5.2310+ In-Stock
22A46001035001Rubber bushing$1.99$1.6910+ In-Stock
98A48001039010handlebar mount kit D28mm-H36mm | ON DEMAND$143.54$122.0110+ In-Stock
99A46001081044Repair Kit steering head bearing | ON DEMAND$115.38$98.0710+ In-Stock
