2026 Husqvarna FE 450 Cylinder Head OEM Parts Diagram

Submodel FE 450 US ENGINE - 2026

Shop Aftermarket Parts

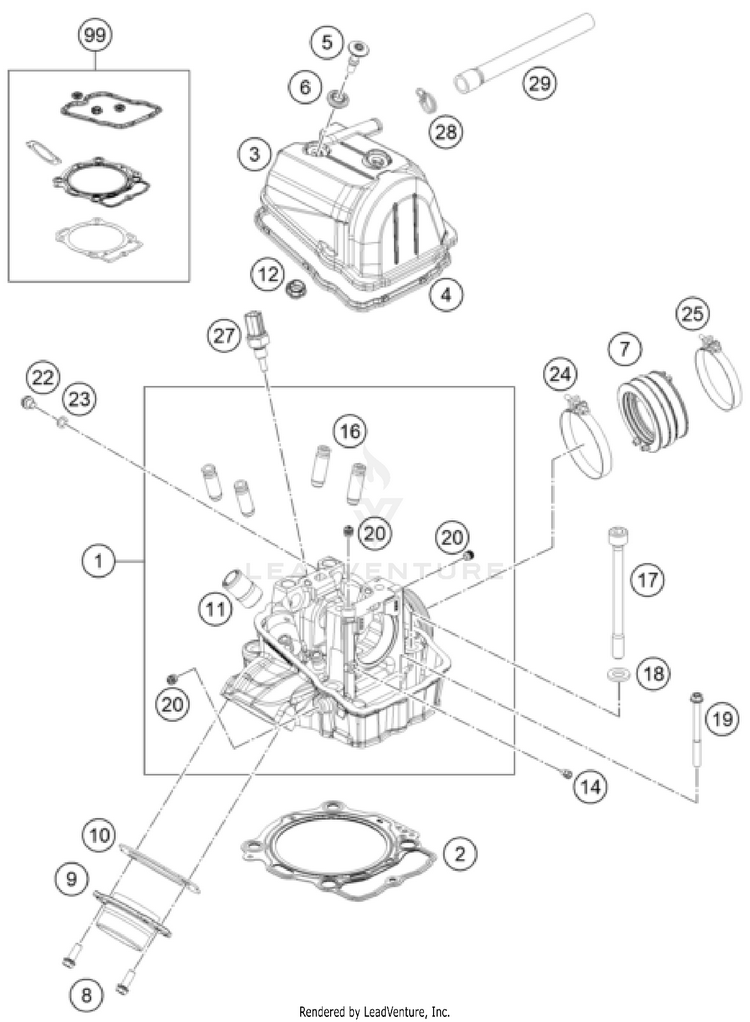

CYLINDER HEAD

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1A48036520144Cylinder head cmpl.$622.26$528.92Usually ships in 7-10 business days
279430036010CYLINDER HEAD GASKET (DN95)$89.64$76.1910+ In-Stock
3A48036052000C1Valve cover$31.67$26.924 In-Stock
4A48036053000Valve cover seal$8.13$6.9110+ In-Stock
579136054000Valve cover screw$2.99$2.5410+ In-Stock
679136054050Rubber seal for collar screw$6.15$5.2310+ In-Stock
779536044000rubber sleeve$33.65$28.6010+ In-Stock
80025060166SHH collar screw M6x16 TX30 SL$2.99$2.5410+ In-Stock
978136139100Exhaust system flange$43.00$36.5510+ In-Stock
1079536041000Exhaust gasket$3.99$3.3910+ In-Stock
1158030010200SCREW IN NOZZLE M20X1,5$10.44$8.8710+ In-Stock
1279536053150valve cover gasket$3.99$3.3910+ In-Stock
1460030063070oil jet 70 M5$10.11$8.5910+ In-Stock
1679536125001

(replaces part #
79536025001)

valve guide intake$28.92$24.5810+ In-Stock
1779530044000Cylinder head bolt$6.59$5.6010+ In-Stock
1877336089010washer 19x10.5x2.5$4.99$4.2410+ In-Stock
190025060756HH COLLAR SCREW M6X75 TX30$3.99$3.3910+ In-Stock
2059030296000SCREW PLUG$7.36$6.2610+ In-Stock
220025060086SHex collar scr., M6x8, ISA 30, SL$2.99$2.69Usually ships in 7-10 business days
230603061001CU-SEAL RING DIN7603-6X10X1$2.99$2.5410+ In-Stock
2461036047000HOSE CLAMP GEMI 63MM 05$8.90$7.5610+ In-Stock
2577236048000HOSE CLAMP GEMI 58MM$14.18$12.0510+ In-Stock
2779435047000water temperature sensor$27.93$23.7410+ In-Stock
2858431082300CLAMP YDNAC 10173 (18MM)$2.99$2.5410+ In-Stock
29A49030087000Engine vent hose$17.48$14.86Usually ships in 7-10 business days
99A48030097000gasket kit cylinder MX 450 | ON DEMAND$129.46$110.0410+ In-Stock
