1997 KTM 360 MXC Front Wheel Sx OEM Parts Diagram

Submodel 360 MXC Chassis - 1997

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

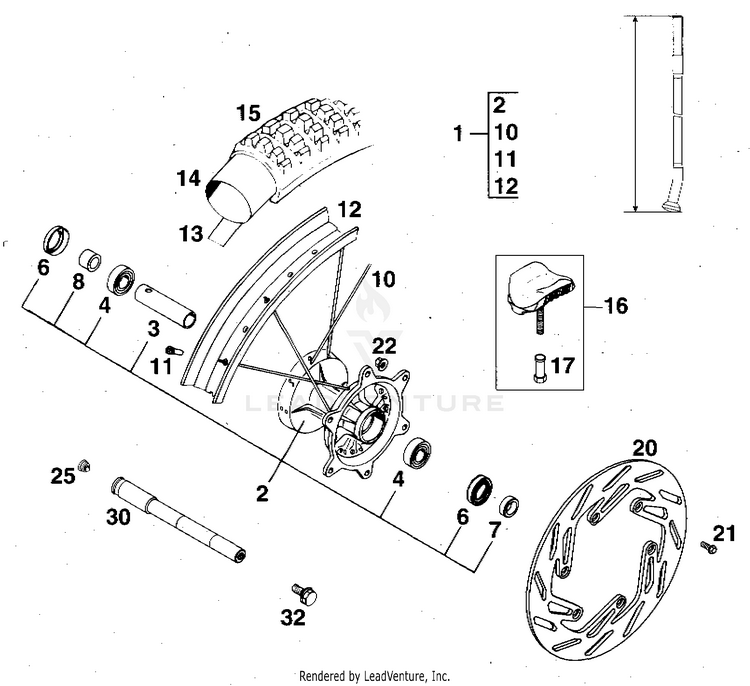

Front Wheel SX

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
154609001544FRONT WHEEL 1,6X21''EXCEL SX'94 | SX'94$549.84$467.36Not Shipping
356509011400BUSHING SPACER TUBE 17,5X22X82$20.79$17.67Not Shipping
40625060037GR.BALL BEAR. 6003-2RSH/C3HMTF$35.52$30.1910+ In-Stock
60760253571SHAFT SEAL RING 25X35X7 BSL$0.00$0.00Not Shipping
754609051000SPACER RING 17X25X7,5-$3.98Not Shipping
854609051100SPACER BUSHING 17X25X15$7.89$6.71Not Shipping
1058309071234SPOKE M5X234-15G 21'' DDE$5.24$4.7210+ In-Stock
1156509072000STEEL NIPPLE M5$2.99$2.5410+ In-Stock
127910907000001

(replaces part #
54609070100)

Rim 21x1.6$294.90$250.66Usually ships in 7-10 business days
1351009073000RIM BAND 21'$0.00$0.00Not Shipping
1451009075000HOSE 3,00/3,25 90/90-21'$0.00$0.00Not Shipping
1554609074700TYRE$0.00$0.00Not Shipping
1678109090200

(replaces part #
51009100100)

Tyre locker 1,60"$20.67$17.5710+ In-Stock
1777110090050

(replaces part #
50310090050)

NUT FOR WHEEL HOLDER | 96$6.15$5.2310+ In-Stock
2054809060200

(replaces part #
56509060700)

BRAKE DISC FRONT D=260MM 05$263.33$223.836 In-Stock
210025060166

(replaces part #
0015060163)

HH collar screw M6x16 TX30 | SW=8$2.99$2.5410+ In-Stock
2256509064000SELF LOCKING NUT M6$0.00$0.00Not Shipping
2555009086000PLUG SFL13$2.99$2.5410+ In-Stock
3050309081000FRONT AXLE L=235MM$72.35$61.50Not Shipping
3249032011000HH COLLAR SCREW M10X20 WS=17$6.92$5.8810+ In-Stock
