1997 KTM 360 MXC Special Tools OEM Parts Diagram

Submodel 360 MXC Engine - 1997

Shop Aftermarket Parts

Special Tools

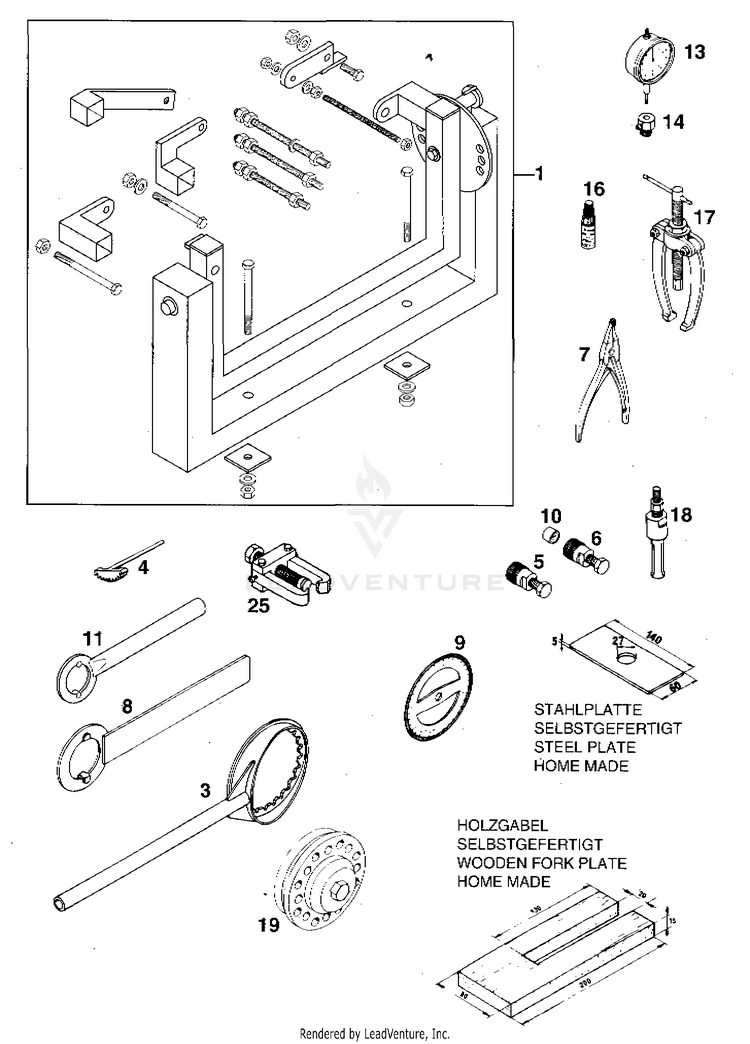

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
156012001000ASSY SUPPORT (WITHOUT HOLDER)-$1,076.11Usually ships in 7-10 business days
354629003000CLUTCH HOLDER 250 '90-$169.38Usually ships in 7-10 business days
456012004000GEAR WHEEL SEGMENT-$43.94Usually ships in 7-10 business days
554629009044MAGNETIC PULLER M 27X1 KOKUSAN-$29.967 In-Stock
66276807PULLER M26X1,5 SEM/MOT-$45.38Usually ships in 7-10 business days
751012011000SPECIAL CIRCLIP PLIER-$209.20Usually ships in 7-10 business days
854412012000HOLDING SPANNER FOR FLYWHEEL-$219.56Usually ships in 7-10 business days
951012014000TIMING DEGREE DISC-$64.22Not Shipping
1051012016000PROTECTION CAP CRANKSHAFT M12-$44.37Usually ships in 7-10 business days
1154629012000HOLD.SPAN.ROTOR 2K-1/2K-2/2K-4-$94.38Usually ships in 7-10 business days
1350112013000DIAL GAUGE 0-10MM-$390.52Usually ships in 7-10 business days
1450112030000DIAL GAUGE SUPPORT-$23.91Usually ships in 7-10 business days
166899785LOCTITE 243 BLUE 5 ML$32.99$28.043 In-Stock
1715112017000BUSHING EXTRACTOR-$195.90Usually ships in 7-10 business days
1815112018100INTERN.BEAR.PULLER 18-23 MM-$304.29Usually ships in 7-10 business days
1815112018200INTERN.BEAR.PULLER 5-7 MM-$228.62Usually ships in 7-10 business days
1815112018000INTERN.BEAR.PULLER 12-16 MM-$272.26Usually ships in 7-10 business days
1954629027000RIVETTING TOOL FOR CLUTCH-$257.13Usually ships in 7-10 business days
25276179000EXTRACTOR PR.GEAR$0.00$0.00Not Shipping
