2000 KTM 380 MXC Hand Brake Cylinder OEM Parts Diagram

Submodel 380 MXC Engine - 2000

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Hand Brake Cylinder

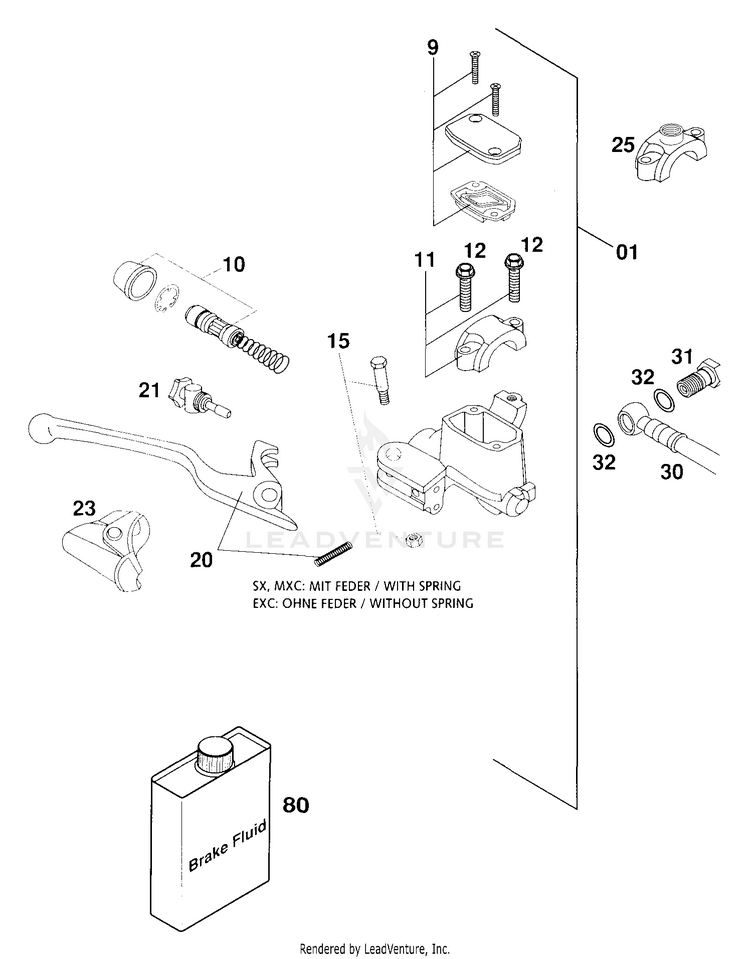

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
0150313001000HANDBRAKE CYL.SMALL NAT. 2000$149.79$127.32Not Shipping
950313003000HANDBRAKE CYL.COVER CPL.NATURE$29.03$24.6810+ In-Stock
1050313008100REP.SET PISTON EXC 2000$33.98$28.883 In-Stock
1050313008000REP.SET PISTON SX 2000$29.19$24.81Not Shipping
1150313005000CLAMP CPL. NATURE$30.68$26.089 In-Stock
120025060256

(replaces part #
0015060253)

HH collar screw M6x25 TX30$3.99$3.3910+ In-Stock
1550313006000LEVER SCREW CPL. MOD.2000$8.29$7.46Not Shipping
2050313002000HANDBRAKE LEVER 18MM 2000$35.41$30.101 In-Stock
2150313007100ADJUSTING SCREW CPL. EXC 2000$24.08$20.477 In-Stock
2150313007000ADJUSTING SCREW CPL. SX 2000$17.59$14.955 In-Stock
2350313004000PROTECTION CAP HAND BRAKE CYL.$14.84$12.6110+ In-Stock
2558012040150CLAMP FOR MIRROR '94$26.83$22.8110+ In-Stock
3059013010000BRAKEHO. FRONT 1235MM 2000$150.25$127.7110+ In-Stock
3059013011000BRAKEHO. FRONT 1300MM 2000$143.10$121.6410+ In-Stock
3150213025000HOLLOW SCREW M10X1X19$7.69$6.5410+ In-Stock
3242013226000CU-SEAL RING DIN7603-10X16X1$2.99$2.5410+ In-Stock
80306054BRAKE FLUID DOT 5.1 (1/4 LITRE)-$12.37Not Shipping
