2000 KTM 640 LC4 Silencer OEM Parts Diagram

Submodel 640 LC4-E Chassis - 2000

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Silencer

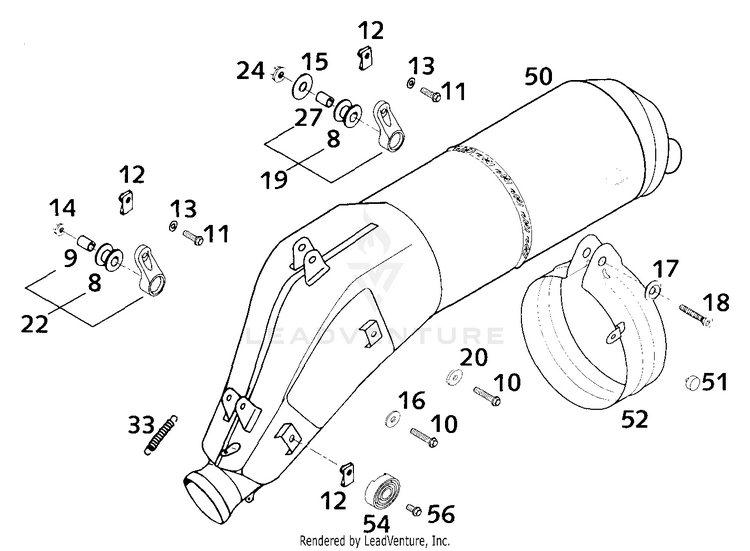

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
854305068100damp. component silicone grey$9.78$8.3110+ In-Stock
954305069000BUSHING 7X12X15,4$4.99$4.248 In-Stock
100025060306

(replaces part #
0015060303)

HH collar screw M6x30 TX30$3.99$3.3910+ In-Stock
110025060206

(replaces part #
0015060203)

HH collar screw M6x20 TX30$3.99$3.3910+ In-Stock
1254603048100clip nut M6$4.99$4.2410+ In-Stock
130137060000SPRING WASHER DIN0137-B 6$2.99$2.5410+ In-Stock
1456509064100SELF LOCKING NUT M6 10.9$2.99$2.5410+ In-Stock
150021080003WASHER DIN9021-A 8,4$1.99$1.6910+ In-Stock
160021060003WASHER DIN9021-A 6,4$2.99$2.5410+ In-Stock
1758303061000SPECIAL WASHER ALU 8 X 24 MM$6.15$5.2310+ In-Stock
180991080353FLAT HEAD SCREW DIN7991-M 8X35$3.14$2.679 In-Stock
1958305165144SILENCER BRACKET CPL. SHORT$27.59$23.45Not Shipping
2050232050001STEEL WASHER 6,4X17X3$6.15$5.2310+ In-Stock
2258305165244SILENCER BRACKET CPL. SHORT'96$28.69$24.39Not Shipping
2454310086200SELF LOCKING NUT M8 10.9$3.99$3.3910+ In-Stock
2756505069000SPACER BUSHING 8,4X12X16$4.99$4.49Usually ships in 7-10 business days
33A46005016000

(replaces part #
50305016000)

Tension spring L=65mm$5.38$4.5710+ In-Stock
5058305083100SILENCER "KTM HGS3" '97$0.00$0.00Not Shipping
5058305083000SILENCER "KTM HGS KAT" '97$0.00$0.00Not Shipping
5154308042000RUBBER BUFFER$3.99$3.3910+ In-Stock
5258305161200RETAIN.CLAMP F.HGS-SILENC. '99$0.00$0.00Not Shipping
5458405098100RUBBERBUFFER F. SILENCER 2000$12.75$10.84Not Shipping
560025060126

(replaces part #
0015060123)

HH collar screw M6x12 TX30$3.99$3.3910+ In-Stock
