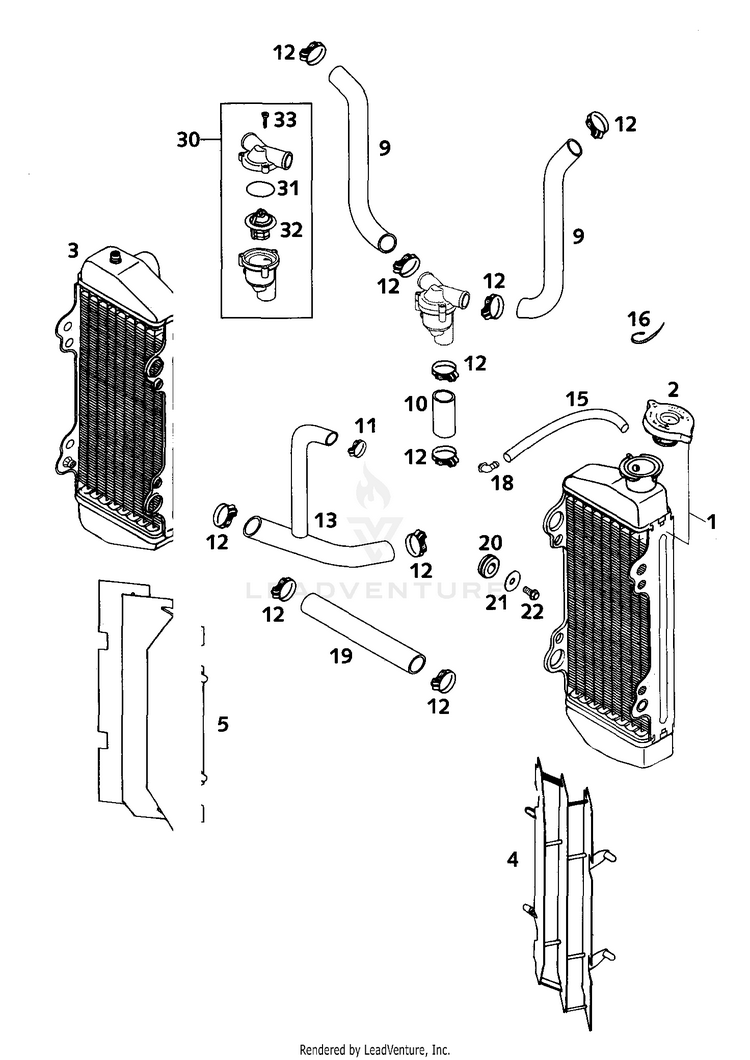

2001 KTM 200 EXC Cooling System Exc OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	50335007100 (replaces part # 50335007000)	RADIATOR L/S	$418.59	$355.80	Not Shipping
2	58035016000	RADIATOR CAP SMALL 20,3 PSI	$30.24	$25.70	10+ In-Stock
3	50335008100 (replaces part # 50335008000)	RADIATOR	$418.62	$355.83	Usually ships in 7-10 business days
4	54635034200	RADIATOR PROTECTION LEFT '95	$10.00	$8.50	10+ In-Stock
5	54635134200	RADIATOR PROTECT.RIGHT '95	$8.02	$6.82	10+ In-Stock
9	50335026100	RADIATOR HOSE 125/200'99	$9.39	$8.45	Not Shipping
10	56535025001	RADIATOR HOSE 18X25 PER METRE	$48.94	$41.60	10+ In-Stock
11	58335099000	HOSE CLAMP GEMI 10-16	$4.99	$4.24	10+ In-Stock
12	0310000902900 (replaces part # 10001020000)	Hose clip 18-29	$2.99	$2.54	10+ In-Stock
13	50335027100	PREFORMED HOSE WAPU-RADIATOR	$33.38	$28.37	Usually ships in 7-10 business days
15	55007016001	PVC-HOSE 7X10 PER METER	$7.14	$6.07	10+ In-Stock
16	44011076200	CABLE TIE 200/3,6MM BLACK	$1.99	$1.88	10+ In-Stock
18	50303089000	ANGLE PIECE '97	$6.15	$5.23	10+ In-Stock
19	56535025001	RADIATOR HOSE 18X25 PER METRE	$48.94	$41.60	10+ In-Stock
20	41001052000	RUBBER SLEEVE D=12MM	$4.99	$4.24	10+ In-Stock
21	0021060003	WASHER DIN9021-A 6,4	$2.99	$2.54	10+ In-Stock
22	0025060126 (replaces part # 0015060123)	HH collar screw M6x12 TX30	$3.99	$3.39	10+ In-Stock
30	54735013044	THERMO.CASE CPL.55 DEGREES '99	$98.60	$83.81	Usually ships in 7-10 business days
31	0770320020	O-RING 32,00X2,00	$2.99	$2.54	10+ In-Stock
32	54635017000	THERMOSTAT 55 DEGREES '94	$61.45	$52.23	Not Shipping
33	0016040183	SCREW FOR PLASTIC D=4X18	$2.99	$2.54	10+ In-Stock
