2001 KTM 200 EXC Flasher, Rear Light OEM Parts Diagram

Submodel 200 EXC Chassis - 2001

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Flasher, Rear Light

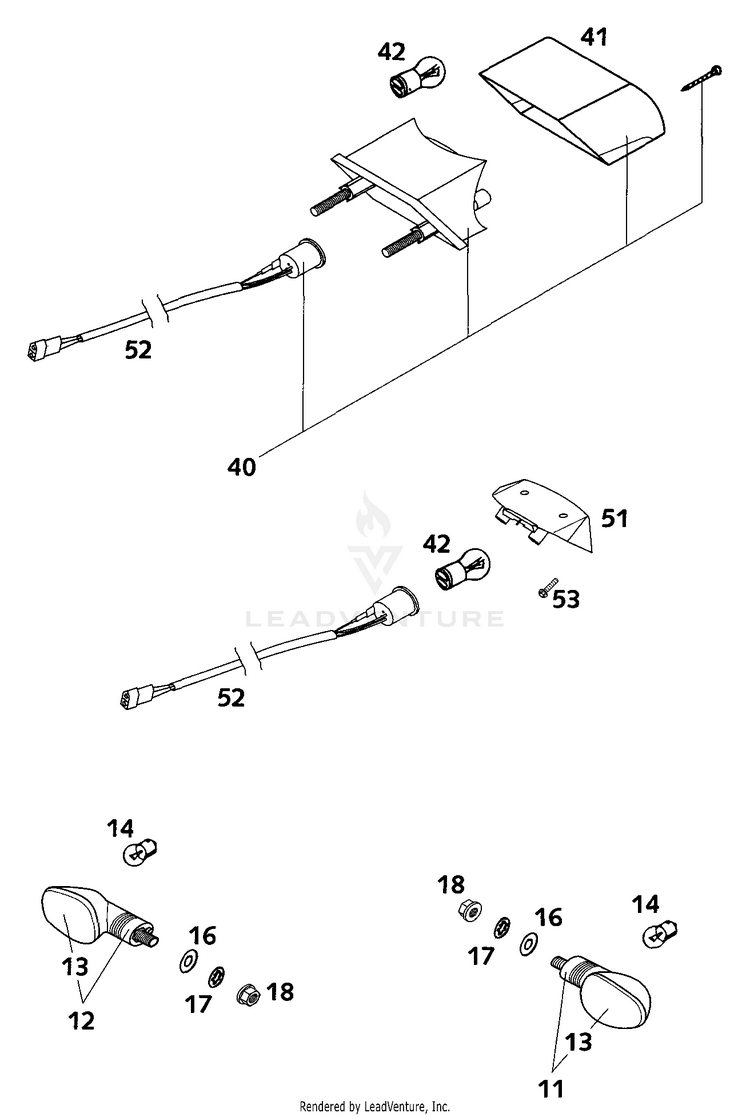

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
115841402500030FLASHER CPL.FRONT L/S REAR R/S$33.76$28.701 In-Stock
125841402600030FLASHER CPL.FRONT R/S REAR L/S$32.88$27.959 In-Stock
1358414028000FLASHER LENS L/S & R/S '98$7.91$6.7210+ In-Stock
1444111015100BULB 12V 10W (BA15S)$3.99$3.3910+ In-Stock
160125100003washer DIN 125 A 10.5$2.99$2.5410+ In-Stock
170797100003LOCK WASHER DIN6797-J10,5 ZI$1.99$1.6910+ In-Stock
1858414030000HH COLLAR NUT M10X1,25 WS=13$2.99$2.5410+ In-Stock
4050314040200

(replaces part #
50314040100)

REAR LIGHT CPL. EXC 07$95.25$80.9610+ In-Stock
4150314041100REAR LIGHT LENS 125-380 EGS'98$32.33$27.4810+ In-Stock
4258414042000BULB 12V 21/5W (BAY15S)REINFO.$14.84$12.6110+ In-Stock
5150314041000REAR LIGHT LENS 125-380 EXC'98$26.29$22.35Not Shipping
5250311076000WIRING HARNESS REAR 125-380'98$32.22$27.3910+ In-Stock
530017060205

(replaces part #
0017060203)

SCREW FOR PLASTIC K60X20 SW6$2.99$2.9210+ In-Stock
