2002 KTM 125 SX Tank, Seat, Covers Sx OEM Parts Diagram

Submodel 125 SX Chassis - 2002

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Tank, Seat, Covers SX

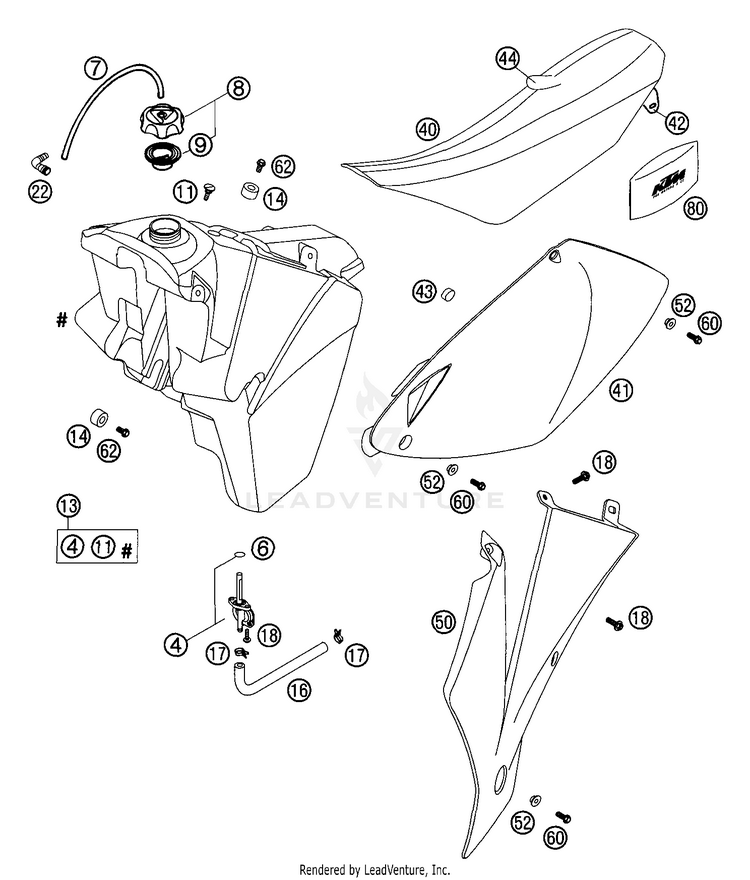

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-5030815400004

(replaces part #
5030815100004)

SPOILER SET SX$91.34$77.64Usually ships in 7-10 business days
-5030804200030SIDE COVER R/S BLACK '99$26.42$22.49Not Shipping
450307005000GAS COCK MIKUNI ON/OFF 2001$79.99$67.9910+ In-Stock
60770130023O-RING 13,00X2,30$4.99$4.2410+ In-Stock
750335030001

(replaces part #
31007107001)

PVC-HOSE 6X9$7.91$6.7210+ In-Stock
859007008044FILLER CAP CPL. WITH VALVE$28.92$24.5810+ In-Stock
959007009000GASKET FOR FILLER CAP HIGH$9.45$8.0310+ In-Stock
1179107011000

(replaces part #
50307011000)

Seat holder screw$3.99$3.3910+ In-Stock
1350307113100FUEL TANK CPL. 11 LITRE 2001$0.00$0.00Not Shipping
1350307113000FUEL TANK CPL. 8 LITRE SX 2001$316.78$269.26Usually ships in 7-10 business days
1450307014000TANK ROLLER 12X26X12 '98$12.97$11.0210+ In-Stock
1650307016000FUEL PREFORMED HOSE SX 2001$10.44$8.8710+ In-Stock
1758007117000YDNAC-CLAMP 10107 10MM$3.99$3.3910+ In-Stock
180017060205

(replaces part #
0017060203)

SCREW FOR PLASTIC K60X20 SW6$2.99$2.9210+ In-Stock
2251030022000ANGLE PIECE 90 DEGREE M10X1$6.15$5.2310+ In-Stock
4050307140100SEAT SX 2002$181.54$154.31Not Shipping
415030804100030SIDE COVER L/S BLACK '99-$24.31Not Shipping
4250307041000SEAT BRACKET L/S-R/S '98$7.97$6.77Not Shipping
4350308042055RUBBER FOR SIDE COVER '98$4.99$4.2410+ In-Stock
4450307140150SEAT COVER SX 2002$78.63$66.84Not Shipping
505030815400004

(replaces part #
5030815000004)

SPOILER SET SX$91.34$77.64Usually ships in 7-10 business days
5279608152000

(replaces part #
50308052000)

Collar bushing 6x11x16x5áMM$2.99$2.5410+ In-Stock
600025060166

(replaces part #
0015060163)

HH collar screw M6x16 TX30$2.99$2.5410+ In-Stock
620025060126

(replaces part #
0015060123)

HH collar screw M6x12 TX30$3.99$3.3910+ In-Stock
8050212100100TOOL SET 125-380 ORANGE'97$67.92$67.92Not Shipping
