2002 KTM 200 MXC Head Light OEM Parts Diagram

Submodel 200 MXC Chassis - 2002

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

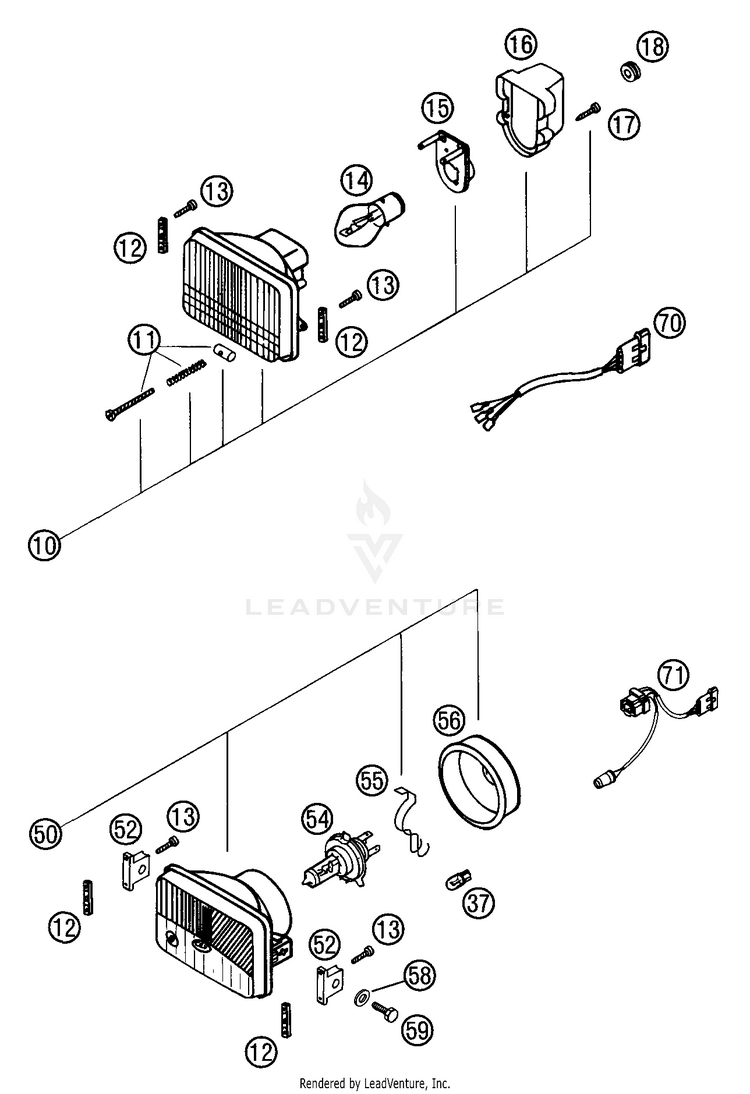

Head Light

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1050211610000HEADLIGHT CPL. ELCOM '93$64.69$54.99Not Shipping
1150211631000ADJUSTING SCREW CPL. M4X40$5.24$4.45Not Shipping
1250211410050HEADLIGHT BRACKET '93$6.81$6.133 In-Stock
130016040183SCREW FOR PLASTIC D=4X18$2.99$2.5410+ In-Stock
1444111038000BILUX-BULB 12V 35/35W BA20D$19.02$16.1710+ In-Stock
1557011036000BULB SOCKET$27.27$23.18Usually ships in 7-10 business days
1650211637000COVER CAP$7.59$6.83Not Shipping
170981350133SHEET MET.SCR.DIN7981-3,5X13$1.99$1.69Not Shipping
1831008060000rubber grommet D=8mm open$2.99$2.5410+ In-Stock
3749011435100

(replaces part #
49011435000)

BULB 12V 5W (W2,1X9,5D) PHIL.$6.15$5.2310+ In-Stock
5059014002100HEAD LIGHT 186(LE)''1003203 L''$108.33$92.08Not Shipping
5059014002000HEAD LIGHT 186(RI)''1003202 R''$129.24$109.85Not Shipping
5258414010100HEAD LIGHT SUPPORT 2001$1.54$1.31Not Shipping
5454611038012BULB HS1 12V 35/35W WHITE$39.15$33.2810+ In-Stock
5549011436100BULB HOLDER$2.70$2.43Not Shipping
5650211537000RUBBER CAP$4.19$3.56Not Shipping
580125060003WASHER DIN0125-A 6,4$1.99$1.6910+ In-Stock
590933060203HH SCREW DIN0933-M 6X20$1.99$1.6910+ In-Stock
7050211610010CABLE FOR HEADLIGHT '93-$29.85Not Shipping
7150211510010CABLE FOR HEADLIGHT '93 (SGP)-$35.24Not Shipping
