2002 KTM 250 EXC Front Wheel Exc OEM Parts Diagram

Submodel 250 EXC Engine - 2002

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

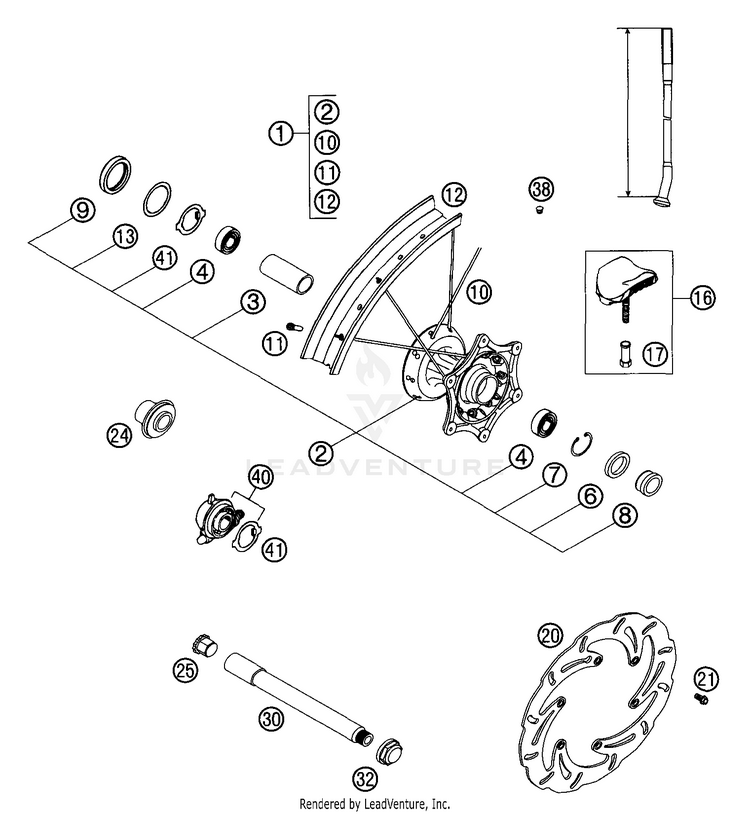

Front Wheel EXC

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
150309001244FRONTWHEEL 1,6X21''DID EXC 2000$566.19$481.26Not Shipping
250309010144FRONT HUB CPL. EXC 2000$253.49$215.47Not Shipping
350309011100BEAR. SPACERTUBE 20,5X25X63,3$7.02$5.97Not Shipping
40625069047GR.BALL BEAR.6904 DDU2CG23S6NM$27.16$23.0910+ In-Stock
60760263770SHAFT SEAL RING 26X37X7 ASL$3.99$3.3910+ In-Stock
70472037154LOCK RING DIN0472-37X1,5$2.99$2.54Not Shipping
850309012000SPACER BUSHING 20X26X27,8 2000$9.12$7.7510+ In-Stock
90760405270SHAFT SEAL RING 40X52X7 B$13.74$11.686 In-Stock
1050309071230SPOKE M4,5X230-15G 21'' DDE$4.99$4.2410+ In-Stock
1181210072200

(replaces part #
50309072000)

Spoke nipple, Quadrax M4,5$2.99$2.5410+ In-Stock
1278109070000

(replaces part #
54609070200)

RIM FRONT 1,6X21'' EXCEL AL7$241.88$205.60Usually ships in 7-10 business days
1358111054000WASHER 40 X 52 X 0,15 '92$1.89$1.61Not Shipping
1678109090200

(replaces part #
51009100100)

Tyre locker 1,60"$20.67$17.5710+ In-Stock
1777110090050

(replaces part #
50310090050)

NUT FOR WHEEL HOLDER$6.15$5.2310+ In-Stock
2050309060000BRAKE DISC FRONT D=260MM 2000$134.89$114.66Not Shipping
2159009062013SPECIAL SCREW M6X13 WS=8 10.9$2.99$2.5410+ In-Stock
2450309019100SPACER BUSHING FOR FRONT WHEEL-$16.14Not Shipping
2550309081150HANDLE FOR FRONT AXLE WS=21$2.09$1.78Not Shipping
3050309081200WHEEL SP. FRO.USD43 185MM 2001$43.95$37.36Not Shipping
3250309082100AXLE NUT FRONT M16X1,5/WS=27$13.85$11.7710+ In-Stock
3855003135000PLUG FOR RIM$2.99$2.5410+ In-Stock
4050314050000SPEEDOMETER DRIVE 748220 (3.0)$34.69$29.54Not Shipping
4150314053000DRIV.DOG F.SPEEDOM.DRIVE 2000$2.41$2.05Not Shipping
