2002 KTM 250 SX Sidestand OEM Parts Diagram

Submodel 250 SX Chassis - 2002

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Sidestand

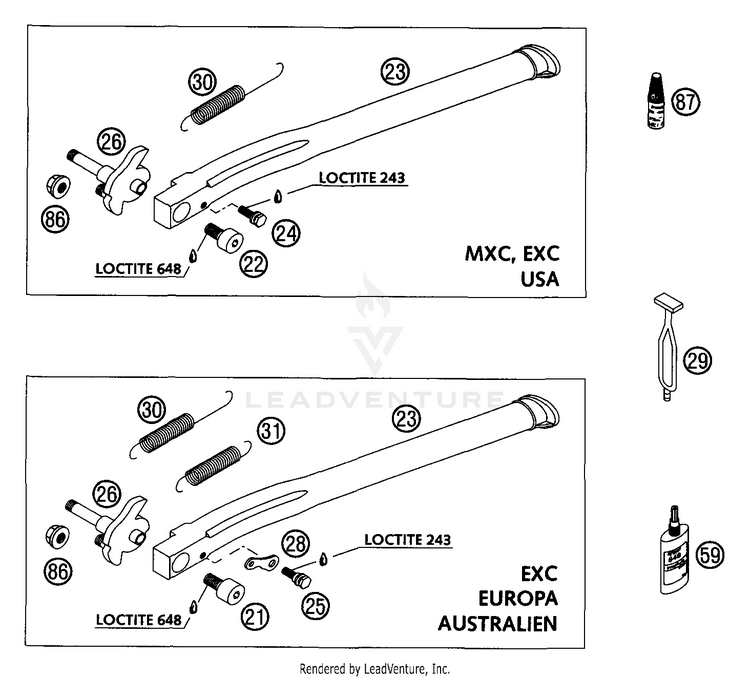

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
2150303023270

(replaces part #
50303023260)

BUSHING WITH SCREW EXC EU$19.02$16.1710+ In-Stock
2250303023360SIDE STAND SCREW EXC MXC 2002$24.41$20.7510+ In-Stock
2350303023000SIDE STAND L=377MM '98$165.43$140.6210+ In-Stock
2450303023052BOLT SIDE ST.SPRING M5 EXC'98$7.36$6.2610+ In-Stock
2550303023152BOLT SIDE ST.SPRING M5 EGS'98$6.81$5.798 In-Stock
2650303026100SIDE STAND BRACKET CPL. 2002$79.85$67.8710+ In-Stock
2850303023054BRACKET FOR SPRING EGS '98$9.12$7.758 In-Stock
2950303025000RUBBER FOR SIDE STAND '98$6.15$5.234 In-Stock
3050303024000SIDESTAND SPRING 125-380EXC'98$7.69$6.5410+ In-Stock
3110003021000STAND SPRING SHORT$11.10$9.446 In-Stock
5958429059000LOCTITE 648 GREEN 24ML$0.00$0.00Not Shipping
8654310086200SELF LOCKING NUT M8 10.9$3.99$3.3910+ In-Stock
876899785LOCTITE 243 BLUE 5 ML$32.99$28.043 In-Stock
