2002 KTM 50 Mini Adventure Handlebar, Controls OEM Parts Diagram

Submodel 50 Mini Adventure Chassis & Engine - 2002

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

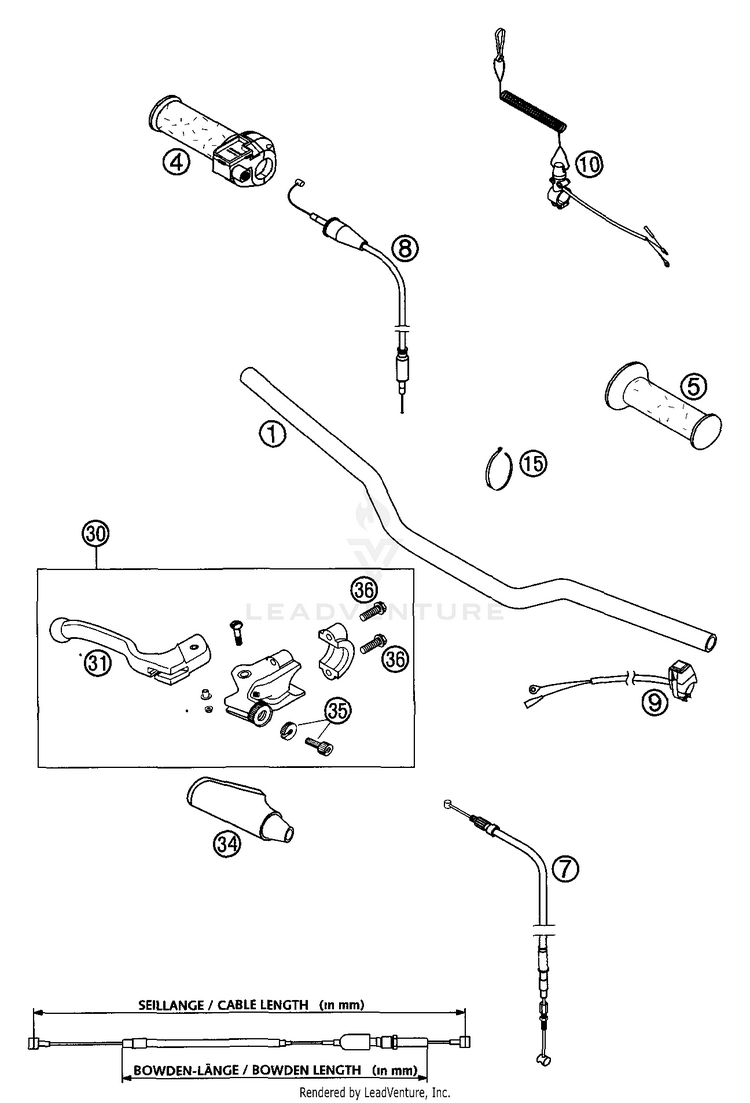

Handlebar, Controls

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-46002042100CLUTCH LEVER LOOSE 60/65SX '99$29.47$25.052 In-Stock
-45113070100BRAKE CABLE REAR 1287/1152 01$39.43$33.52Not Shipping
-46002040100CLUTCH LEVER CPL. 60/65 SX '99$47.18$40.106 In-Stock
-45113070000BRAKE CABLE REAR 1187/1052 01$40.62$34.53Not Shipping
145002001000HANDLEBAR 50 SXR$55.32$47.028 In-Stock
445002010000TWIST GRIP CPL. 50 SXR$39.59$33.6510+ In-Stock
545002021000

(replaces part #
45002039000)

GRIPP SET$26.72$22.7110+ In-Stock
745113010100BRAKE CABLE FRONT 990/864 01$34.76$29.55Not Shipping
745113010000BRAKE CABLE FRONT 898/772 01$37.14$31.57Not Shipping
845102091000THROTTLE CABLE SEN.849/726 01$25.07$21.319 In-Stock
845102091100THROTTLE CABLE JUN.762/644 02$23.39$19.8810+ In-Stock
950311089200SHORT CIRCUIT BUTTON 02$44.21$37.5810+ In-Stock
1045011089044S.CIRCUIT BUTTON W. RIP CORD$119.09$101.23Not Shipping
1544011076200CABLE TIE 200/3,6MM BLACK$1.99$1.8810+ In-Stock
1544011076140

(replaces part #
44011076100)

CABLE TIE 140/2,5MM BLACK$1.99$1.6910+ In-Stock
3045113001044HAND BRAKE LEVER CPL. R/S 2001$29.99$25.49Not Shipping
3145113042000HAND BRAKE LEVER LOOSE 2001$29.47$25.053 In-Stock
3446002048000PLASTIC CAP FOR CLUTCH LEVER$5.07$4.31Not Shipping
3546002043100ADJUST SCREW CLUTCH LEVER 2000$5.24$4.45Not Shipping
360025060206

(replaces part #
0015060203)

HH collar screw M6x20 TX30$3.99$3.3910+ In-Stock
