Brake Caliper Front Formula

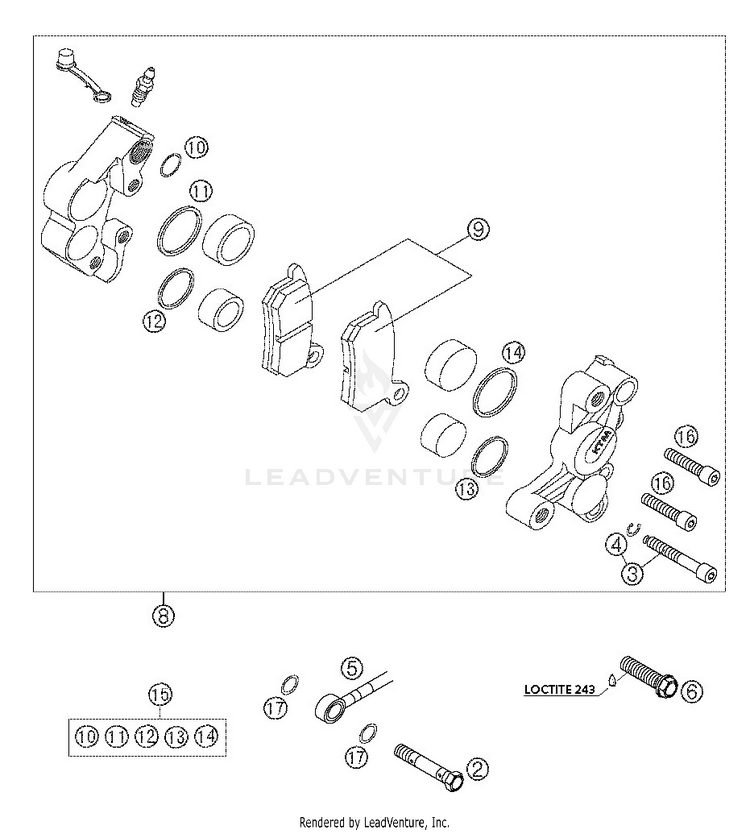

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
246113025000HOLLOW SCREW M10X43 2002 | 2002$10.79$9.17Usually ships in 7-10 business days
346113125000AH SCREW + CIRCLIP 2002 | 2002$16.49$14.0210+ In-Stock
40799040000TAB WASHER DIN6799-RS 4,0$0.15$0.14Usually ships in 7-10 business days
546113010000BRAKE HOSE FRONT 65 SX 2002 | 2002$58.91$50.07Not Shipping
60025080306

(replaces part #
0015080303)

HH collar screw M8x30 | WS=10$3.62$3.0810+ In-Stock
946113030000BRAKE PAD SET FRONT 2002 | 2002$38.27$32.5310+ In-Stock
1546113019000REPAIR KIT SEAL RING 2002 | 2002$24.52$20.845 In-Stock
160912060283AH SCREW DIN0912-M 6X28$2.99$2.5410+ In-Stock
1742013026000CU-SEAL RING DIN7603-10X16X1,5$2.41$2.0510+ In-Stock
