2003 KTM 200 SX Brake Caliper Rear OEM Parts Diagram

Submodel 200 SX Chassis - 2003

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

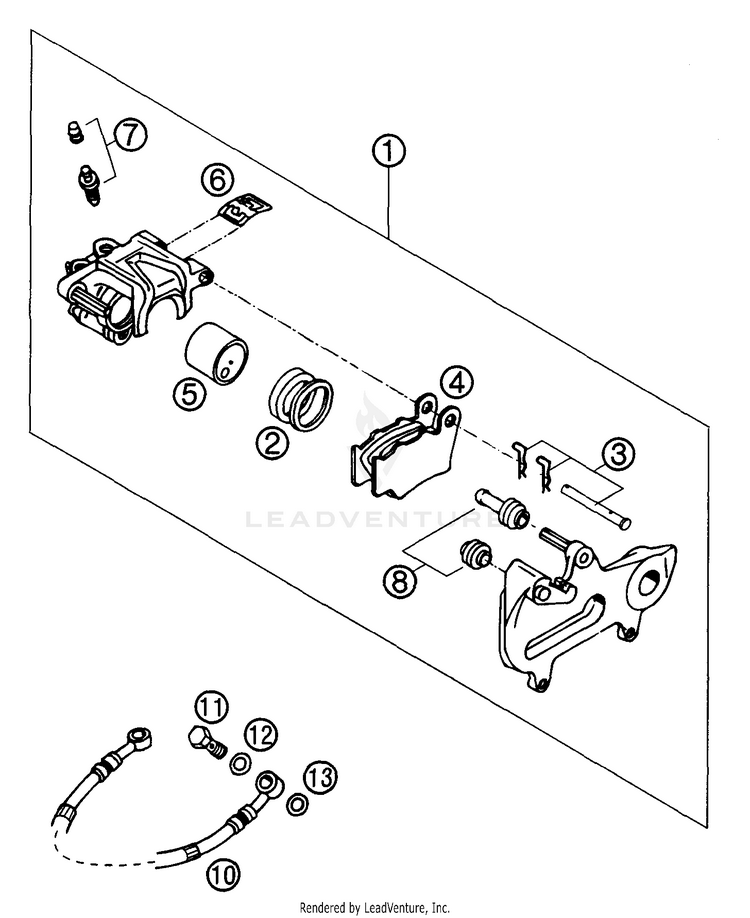

Brake Caliper Rear

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
150313080244BRAKE CALIPER REAR CPL.26MM 03$307.53$261.40Usually ships in 7-10 business days
250313081200REPAIR KIT SEALING RINGS 26MM$20.45$17.3810+ In-Stock
354813082000

(replaces part #
50313082000)

BOLT SET FOR BRAKE CALIPER 03$30.68$26.0810+ In-Stock
454613309200BRAKE PAD SET FERIT ID450FF$49.27$41.8810+ In-Stock
454613309300BRAKE PAD SET REAR SINTER$65.99$56.09Usually ships in 7-10 business days
475013090000

(replaces part #
54613309400)

BRAKE PAD SET REAR SBS-S-40GF$54.33$46.1810+ In-Stock
450313090000BRAKE PAD REAR TOSHIBA TTH38GF$84.91$72.17Usually ships in 7-10 business days
550313083200BRAKE PISTON 26MM$36.59$31.10Not Shipping
654613311200RETAINING SPRING SET$18.36$15.6110+ In-Stock
750313020000BLEEDER SCREW M10X1 2001$9.45$8.03Not Shipping
854613218100

(replaces part #
54613218000)

CUP SET SHORT$27.71$23.5510+ In-Stock
1050313070000BRAKE HOSE RE.590MM 125-380'98$68.24$58.00Not Shipping
1150213025000HOLLOW SCREW M10X1X19$7.69$6.5410+ In-Stock
1242013226000CU-SEAL RING DIN7603-10X16X1$2.99$2.5410+ In-Stock
1342013026000CU-SEAL RING DIN7603-10X16X1,5$2.41$2.0510+ In-Stock
