2003 KTM 300 MXC Fork Legs Wp Usd 48 OEM Parts Diagram

Submodel 300 MXC Chassis - 2003

Shop Aftermarket Parts

Fork Legs WP USD 48

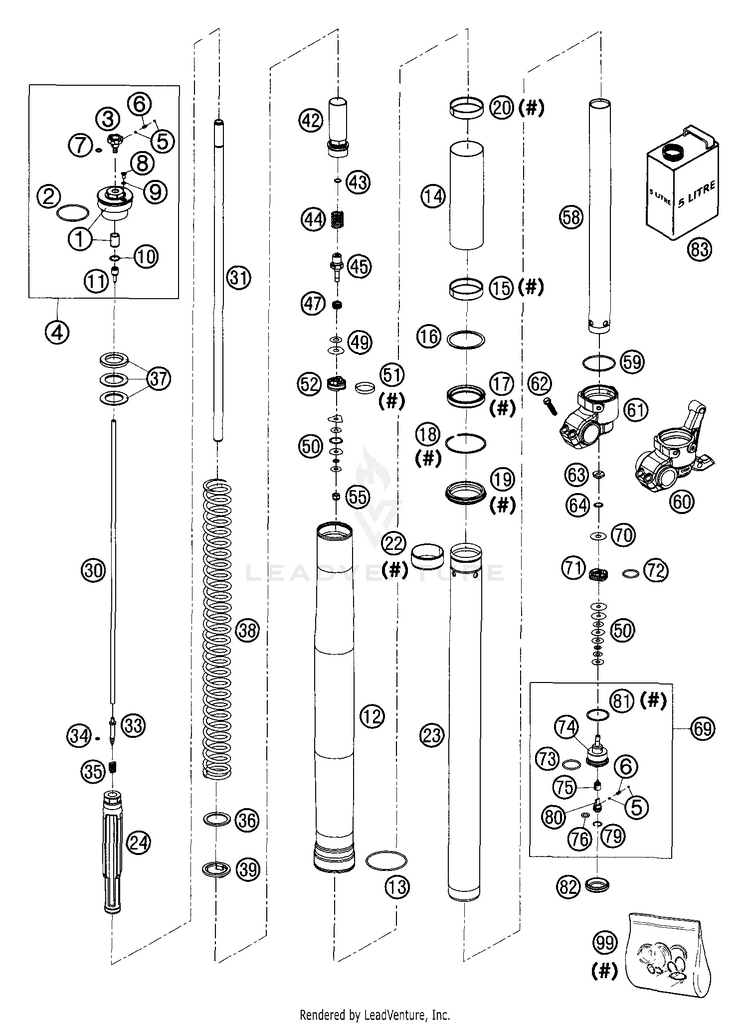

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
148600020SSREW CAP+BUSH M51X1,5$118.39$100.63Not Shipping
246810340O-ring 45x2 NBR70 siliconized$1.20$1.0210+ In-Stock
348600018Adjuster rebound$4.83$4.1110+ In-Stock
448600020S1SCREW CAP M51X1,5 CPL.$118.39$100.63Not Shipping
540540603Steel ball d3$1.20$1.0210+ In-Stock
648600028Spring (1,7) l7,9$3.62$3.0810+ In-Stock
748600044O-ring 6x1,5 NBR70$1.20$1.0210+ In-Stock
848600058Cross flat head screw M4x6$2.19$1.86Not Shipping
948600009O-ring 3,7x1,6 NBR70$1.20$1.0210+ In-Stock
1048600043O-ring 12x1,5 NBR70$2.41$2.0510+ In-Stock
1148600019Tube tap d4x25$3.62$3.0810+ In-Stock
1248600244OUTER TUBE L=577MM D=54/60MM$556.41$472.95Usually ships in 7-10 business days
1348600016Round-wire snap ring 48x2$3.62$3.0810+ In-Stock
1448600245SPACER 50,95X0,85X161,5$31.59$26.85Not Shipping
1548600429S

(replaces part #
48600205)

LEADING BUSH 48X52X12+8MM$22.43$19.07Usually ships in 7-10 business days
1648600013Supportwasher 50x57,6x1,5$3.62$3.0810+ In-Stock
1748600185OIL SEAL RING 48X58X9,5$0.00$0.00Not Shipping
1848600070Snap ring SB58x1,5 acc drawing$2.41$2.0510+ In-Stock
1948600186DUST STRIPPER D=48$15.06$12.80Not Shipping
2048600236Guide bushing 48x51x12$27.05$22.9910+ In-Stock
2248601008

(replaces part #
48600204)

Guide bushing 47x49x20$14.18$12.0510+ In-Stock
2348600240INNER TUBE D=48 L=595 2003$332.99$283.04Not Shipping
2448600241S1

(replaces part #
48600241S)

HYDR.STOP L=200MM D=31,9 CPL$68.14$57.92Not Shipping
3048600092ADJUSTMENT TUBE L=517MM$65.89$56.01Not Shipping
3148600251PISTONROD D=14 L=551 M11X1$90.04$76.53Not Shipping
3348600189Needle 6x42,6 rebound$40.80$34.6810+ In-Stock
3448600046O-ring 3x1,5 NBR70$1.99$1.6910+ In-Stock
3548600033Spring (7,2) 4-23 needle$6.15$5.2310+ In-Stock
3648600113Washer 32x42x2,5 plastic$13.08$11.125 In-Stock
3748600053Preload bush 26,5x42x1,5$4.83$4.1110+ In-Stock
3748600037Preload bush 26,5x42x5$4.83$4.1110+ In-Stock
3748600036Preload bush 42x26,5x2,5$2.41$2.0510+ In-Stock
3891410011SSPRING 3,6N/MM SET$171.59$145.85Usually ships in 7-10 business days
3891410017SSPRING 4,8N/MM SET$176.87$150.34Usually ships in 7-10 business days
3891410015SSPRING 4,4N/MM SET D=5,1MM$171.59$145.852 In-Stock
3891410016SSPRING 4,6N/MM SET$171.59$145.853 In-Stock
3891410012SSPRING 3,8N/MM SET D=4,9MM$171.59$145.85Usually ships in 7-10 business days
3891410013SSPRING 4,0N/MM SET D=5,0MM$266.69$226.69Usually ships in 7-10 business days
3891410014SSPRING 4,2N/MM SET D=5,0MM$155.99$132.59Usually ships in 7-10 business days
3948600021Spring retainer 33,5x43x3$19.68$16.7310+ In-Stock
4248600196SScrew sleeve M29,3x1 cpl.$98.89$84.06Not Shipping
4348600239O-ring 8x1,25 NBR70 siliconized$1.99$1.6910+ In-Stock
4448600192REBOUND SPRING D=15MM L=34,5MM$17.91$15.22Not Shipping
4548600203Tap 6x45 rebound$10.08$8.57Not Shipping
4735480377Spring (11,7) 1,5-8 valve$2.41$2.0510+ In-Stock
4948600062CHECK VALVE 8X24X0,1$2.41$2.0510+ In-Stock
4943570120Shim 8x18x0,10$2.41$2.0510+ In-Stock
4948600215Shim 8x20x0,10$2.41$2.0510+ In-Stock
4948600216Shim 8x22x0,10$2.41$2.0510+ In-Stock
5040540414Shim 6x16x0,25$2.41$2.0510+ In-Stock
5048600064Shim 6x22x0,10$2.41$2.0510+ In-Stock
5040540447Shim 6x10x0,30$2.41$2.0510+ In-Stock
5048600063Shim 6x24x0,10$2.41$2.0510+ In-Stock
5040540403Shim 6x18x0,10$2.41$2.0510+ In-Stock
5040540402Shim 6x16x0,10$2.41$2.0510+ In-Stock
5048600065Shim 6x20x0,10$2.41$2.0510+ In-Stock
5040540401Shim 6x14x0,10$2.41$2.0510+ In-Stock
5048600116Shim 6x24x0,10 delta$2.41$2.0510+ In-Stock
5040540450Shim 6x9,5x0,30$2.41$2.0510+ In-Stock
5040540415Shim 6x18x0,25$2.41$2.17Usually ships in 7-10 business days
5048600212PRESSURE-RING 20X16,25X0,20$1.20$1.022 In-Stock
5148600060Pistonring 26x28x5$6.15$5.2310+ In-Stock
5248600042Piston 6,05x27,65x12 rebound$14.19$12.06Not Shipping
5540540486Nut M6x0,5 h6,5 WAF10 rebound$4.83$4.1110+ In-Stock
5848600081TUBE 29,3X1X390 D=8,5MM$186.99$158.94Usually ships in 7-10 business days
5948600048O-ring 46x2 NBR70 siliconized yellow$3.62$3.0810+ In-Stock
6048600237AXLE CLAMP L/S USD 48 2003$0.00$0.00Not Shipping
6148600238AXLE CLAMP R/S USD 48 2003$0.00$0.00Not Shipping
620025080306

(replaces part #
50600061)

HH collar screw M8x30$3.62$3.0810+ In-Stock
6348600163Nut valve M6x0,5 h6,5 WAF17$3.62$3.0810+ In-Stock
6448600202Spring (8,5) l6,5 valve$2.41$2.0510+ In-Stock
6948600586S3

(replaces part #
48600152S1)

Compression$44.32$37.6710+ In-Stock
7048600061Shim 8x24x0,40$2.41$2.0510+ In-Stock
7148600047Piston 6x27,8x9 compression$11.54$9.8110+ In-Stock
7246811499O-ring 21x2 NBR70$1.20$1.0210+ In-Stock
7335480320O-ring 24x2 NBR70$1.20$1.0210+ In-Stock
7448600586S3

(replaces part #
48600152)

Compression$44.32$37.6710+ In-Stock
7548600190Needle 10x11,6 compression$16.05$13.642 In-Stock
7648600049O-ring 8x2 NBR70$1.20$1.0210+ In-Stock
7948600051Round-wire snap ring 12x1 DIN7993 A2$3.62$3.0810+ In-Stock
8048600034Adjustment screw slot compression$8.86$7.53Not Shipping
8148600004Copper disc 29,5x33,5x1$4.83$4.1110+ In-Stock
8248600141Rubber cap 35x10 NBR80$4.83$4.1110+ In-Stock
8348600211S1FORK OIL SAE 5$0.00$0.00Not Shipping
99RP10045T

(replaces part #
R14007)

Repair kit gasket 48mm (4860 MXMA)$124.95$106.2110+ In-Stock
