Cylinder

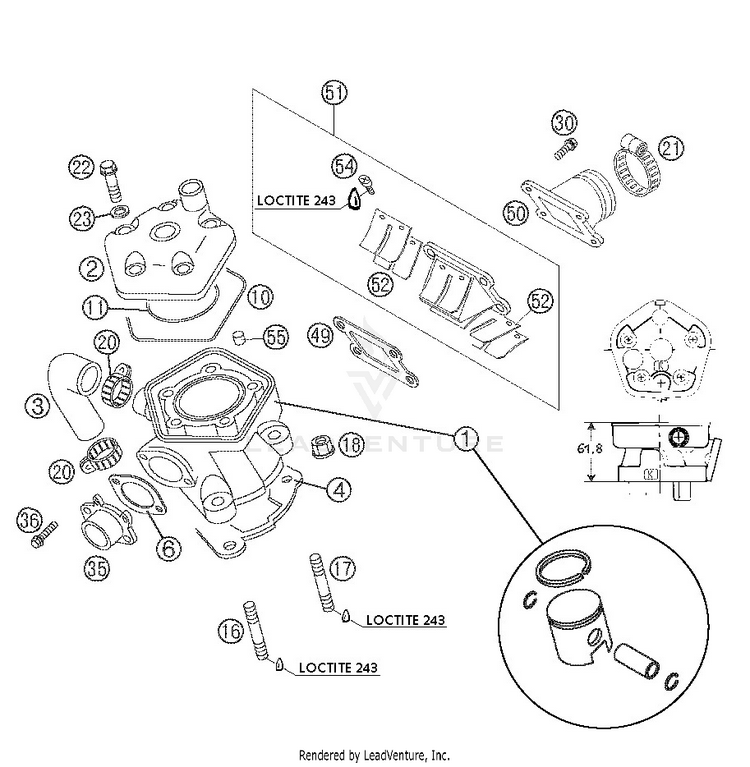

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
146030005600CYLINDER W.PISTON 45MM 65SX 03 | 03$695.41$591.108 In-Stock
246030006700CYLINDERHEAD 65 SX 2003 | 2003$144.92$123.18Not Shipping
346035027000PRE-FORM.HOSE CYL.-CLUTCH COV.$9.56$8.136 In-Stock
446030035050CYLINDER BASE GASKET 0,5 MM | (As Required)$12.20$10.3710+ In-Stock
446030035020CYLINDER BASE GASKET 0,2 MM | (As Required)$14.07$11.9610+ In-Stock
446030035060CYLINDER BASE GASKET 0,6 MM | (As Required)$11.98$10.187 In-Stock
646030046000EXHAUST GASKET 60/65 CCM$8.57$7.28Not Shipping
1046030037000O-RING 94,97X1,78$8.63$7.34Not Shipping
1146030036000O-RING 53,7X1,78 VITON$10.66$9.0610+ In-Stock
1646030043000STUD M8X41$6.81$5.7910+ In-Stock
1746030043100STUD M8X44$5.87$4.99Not Shipping
1846030045000flanged nut M8 WS10 | WS=10$9.23$7.8510+ In-Stock
200310000902900

(replaces part #
10001020000)

Hose clip 18-29$2.99$2.5410+ In-Stock
2131001027000HOSE CLAMP 32-52MM D5$7.02$5.97Not Shipping
2246030079100CYLINDERHEADSCR.HH-M7X38 2003 | 2003$2.99$2.5410+ In-Stock
230603070121

(replaces part #
50230032010)

CU-SEAL RING DIN7603- 7,3X12X1$1.99$1.6910+ In-Stock
300025060206

(replaces part #
0015060203)

HH collar screw M6x20 TX30 | WS=8$3.99$3.3910+ In-Stock
3546036040100EXHAUST FLANGE 65 SX 2002 | 2002$17.49$14.87Not Shipping
360025060206

(replaces part #
0015060203)

HH collar screw M6x20 TX30 | WS=8$3.99$3.3910+ In-Stock
4946030049000INTAKE VALVE GASKET$2.73$2.32Not Shipping
5046030050000INTAKE FLANGE$82.71$70.30Not Shipping
5145130051044MEMBRANE HOUSING CPL.50LC 2001 | 2001$0.00$0.00Not Shipping
5246030052000MEMBRANE LOOSE 60/65 CCM$19.57$16.6310+ In-Stock
540985030063FLAT HEAD SCREW DIN7985-M 3X6$1.99$1.6910+ In-Stock
5545130023000DOWEL 7X9X10$6.15$5.2310+ In-Stock
