2005 KTM 65 SX Front Wheel OEM Parts Diagram

Submodel 65 SX Chassis & Engine - 2005

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Front Wheel

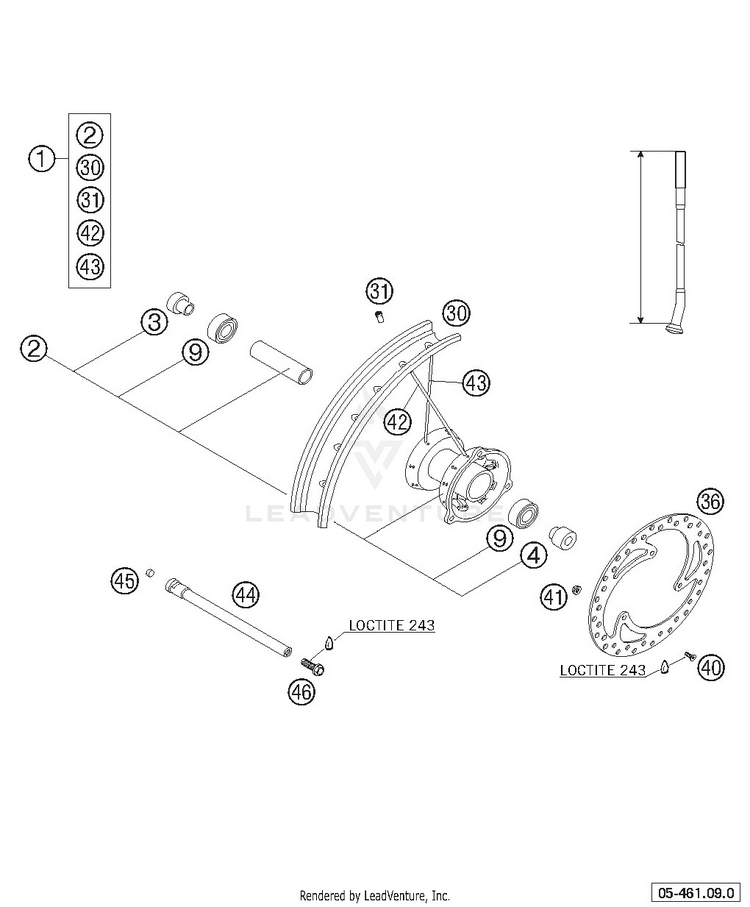

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
146109001044FRONT WHEEL-SP 1,6X14" ALU$0.00$0.00Not Shipping
246109010044FR.WHEEL HUB CPL. SILVER 2002 | 2002$204.42$173.76Usually ships in 7-10 business days
346009013000SPACER BUSH R/S 65SX 04 | 04$23.09$19.639 In-Stock
446009014000SPACER BUSH L/S 65SX 04 | 04$23.09$19.636 In-Stock
90625060037GR.BALL BEAR. 6003-2RSH/C3HMTF$35.52$30.1910+ In-Stock
3046009070000RIM FRONT 1,6X14'' ALU$145.49$123.67Usually ships in 7-10 business days
3146009072100SPOKE NIPPEL M3,5 2001 | 2001$2.99$2.5410+ In-Stock
3646209060100

(replaces part #
46109060000)

BRAKE DISC FRONT 65 SX 2012 | 2004$134.52$114.3410+ In-Stock
400991060163FLAT HEAD SCR. DIN7991-M 6X16$2.99$2.5410+ In-Stock
4156509064100SELF LOCKING NUT M6 10.9 | 10.9$2.99$2.5410+ In-Stock
4246009071000SPOKE M3,5X145MM$2.99$2.5410+ In-Stock
4346009171000SPOKE M3,5X149MM$2.99$2.5410+ In-Stock
4446109081000AXLE FRONT 65SX 2002 | 2002$65.72$55.86Not Shipping
4555009086000PLUG SFL13$2.99$2.5410+ In-Stock
4649032011000HH COLLAR SCREW M10X20 WS=17 | WS=17$6.92$5.8810+ In-Stock
