2007 KTM 300 XC Brake Caliper Rear OEM Parts Diagram

Submodel 300 XC Chassis - 2007

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

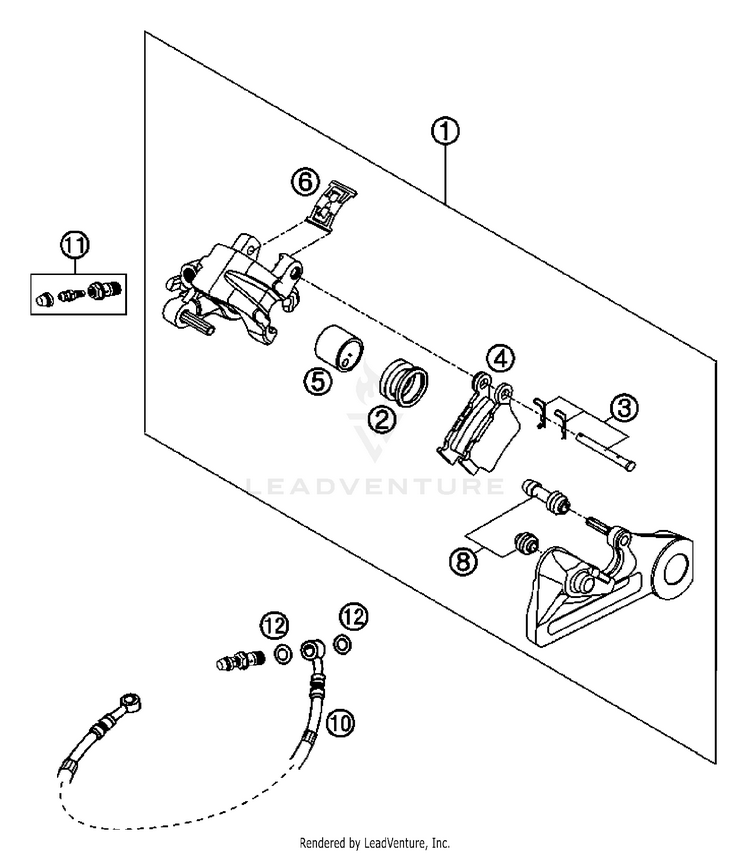

Brake Caliper Rear

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
154813080101

(replaces part #
54813080144)

BRAKE CAL. RE. - WITHOUT PADS$336.59$286.1010+ In-Stock
250313081200REPAIR KIT SEALING RINGS 26MM$20.45$17.3810+ In-Stock
354813082000BOLT SET FOR BRAKE CALIPER 03$30.68$26.0810+ In-Stock
454813090300BRAKE PAD SET REAR TOYO$90.52$76.9410+ In-Stock
577713083000

(replaces part #
54813083000)

BRAKE PISTON 26MM 2013$63.46$53.9410+ In-Stock
654813018000RETAINING SPRING SET 2003$33.65$28.6010+ In-Stock
854613218100

(replaces part #
54613218000)

CUP SET SHORT$27.71$23.5510+ In-Stock
1054813070200

(replaces part #
54813070000)

Brake hose rear 655 mm$128.25$109.0110+ In-Stock
1162513020000

(replaces part #
54813020000)

BLEEDER SCREW CPL. 05$32.33$27.4810+ In-Stock
1242013226000CU-SEAL RING DIN7603-10X16X1$2.99$2.5410+ In-Stock
