2007 KTM 50 SX Junior Clutch OEM Parts Diagram

Submodel 50 SX Junior Engine - 2007

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Clutch

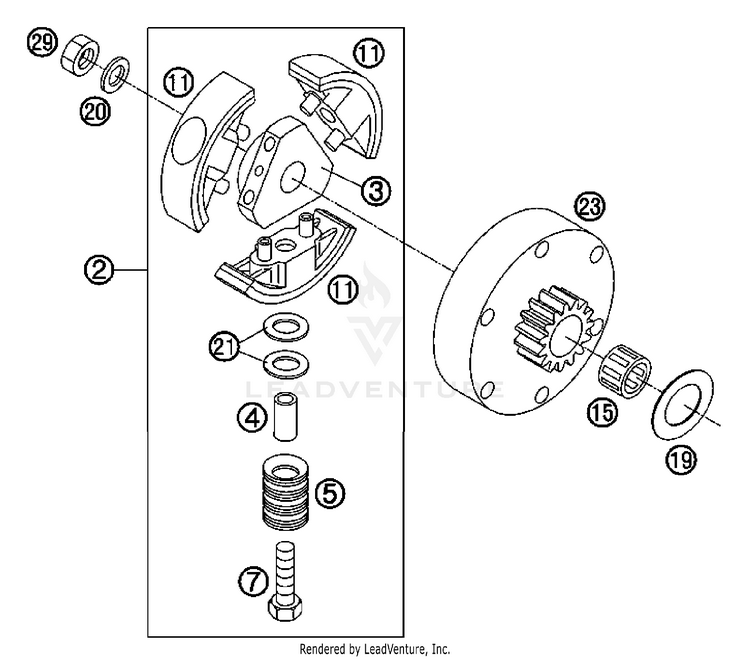

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
245132002144CLUTCH CPL.50LC 02$285.11$242.34Not Shipping
345132002000CLUTCH HUB 50 LC 2002$141.56$120.33Not Shipping
445132004000SPACER 6X8X19$16.49$14.0210+ In-Stock
545132005000CLUTCH SPRING 2001$2.99$2.5410+ In-Stock
70933060253HH SCREW DIN0933-M 6X25$2.99$2.5410+ In-Stock
1145132011200CLUTCH BLOCK 06$32.59$27.70Not Shipping
1545132015000NEEDLE BEARING 15X18X17$22.21$18.8810+ In-Stock
1945132020040SPACER WASHER 15X25X0,4$2.41$2.057 In-Stock
1945132020030SPACER WASHER 15X25X0,3$2.99$2.5410+ In-Stock
1947033040000STOP DISC 15X25X1$1.99$1.6910+ In-Stock
1947033043000STOP DISC 15X25X0,5$2.99$2.5410+ In-Stock
2045132020000WASHER 10,4X16,8X0,4$4.99$4.2410+ In-Stock
2145132120000WASHER 8X15,3X0,5$3.14$2.67Not Shipping
2145132120100WASHER 8X15,3X1$3.99$3.3910+ In-Stock
2145132120200WASHER 8X15,3X0,25$1.99$1.6910+ In-Stock
2345132023016CLUTCH DRUM 16-T$165.21$140.4310+ In-Stock
2945130029000SPECIAL NUT 10X1,25X8$6.15$5.2310+ In-Stock
