2007 KTM 50 SX Transmission OEM Parts Diagram

Submodel 50 SX Engine - 2007

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Transmission

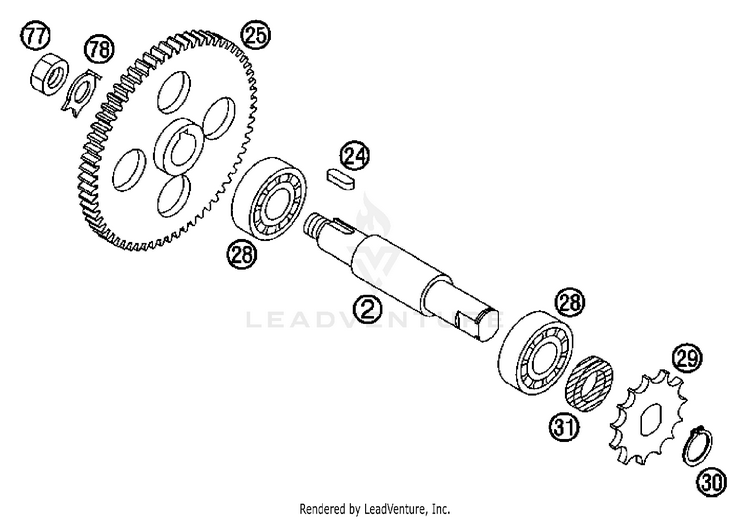

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
245133002000COUNTER SHAFT 50CCM LC 2001$96.24$81.802 In-Stock
2445133024000WOODRUFF KEY 5X5X12$4.99$4.249 In-Stock
2545132024057PRIMARY GEAR 57-T$105.61$89.77Not Shipping
2845133028000BALL BEARING 15X35X11$26.28$22.3410+ In-Stock
2945133029013SPROCKET 13-T 50 LC 2001$24.30$20.662 In-Stock
2945133029011SPROCKET 11-T 50 LC 2001$24.63$20.9410+ In-Stock
2945133029012SPROCKET 12-T 50 LC 2001$25.07$21.315 In-Stock
2945133029010SPROCKET 10-T 50 LC 2001$24.63$20.948 In-Stock
2945133029009SPROCKET 9-T 50 LC 2001$20.29$17.25Not Shipping
300471150010CIRCLIP DIN0471-15X1$2.99$2.5410+ In-Stock
3145133031000OIL SEAL RING 15X24X5$6.59$5.6010+ In-Stock
7746030029000HH NUT 14X1,25X7 WS=22$11.43$9.7210+ In-Stock
7846030078000LOCKING PLATE D=14MM$4.99$4.2410+ In-Stock
