2007 KTM 690 SMC Brake Caliper Front OEM Parts Diagram

Submodel 690 LC4 Engine - 2007

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Brake Caliper Front

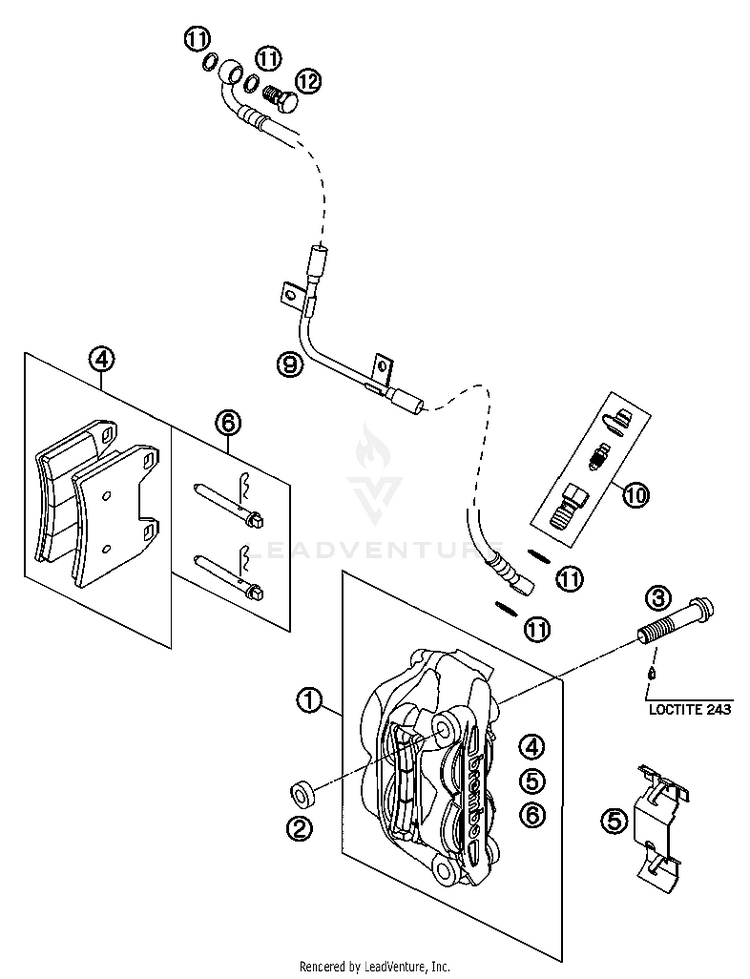

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
175013015000BRAKE CALIPER FRONT | 07-$215.00Usually ships in 7-10 business days
26111302200001SPACER BUSH 10,1X20X7,5 07 | 07$4.99$4.248 In-Stock
30035100659AH-COLLAR SCREW M10X1,25X65$6.15$5.238 In-Stock
475013030000BRAKE PAD FR. HAWK 7342-49 HH$100.09$85.08Usually ships in 7-10 business days
558713018000RETAINING SPRING BREMBO '99 | '99$16.16$13.745 In-Stock
658713017000BOLT WHITH CLIP '99 | '99$21.66$18.418 In-Stock
975013012000BRAKE HOSE FRONT CPL. | 07$0.00$0.00Not Shipping
1062513020000BLEEDER SCREW CPL. 05 | 05$32.33$27.4810+ In-Stock
1142013226000CU-SEAL RING DIN7603-10X16X1$2.99$2.5410+ In-Stock
1254813020100banjo bolt M10x1x19 black$11.65$9.9010+ In-Stock
