2007 KTM 690 SMC Clutch OEM Parts Diagram

Submodel 690 LC4 Engine - 2007

Shop Aftermarket Parts

Clutch

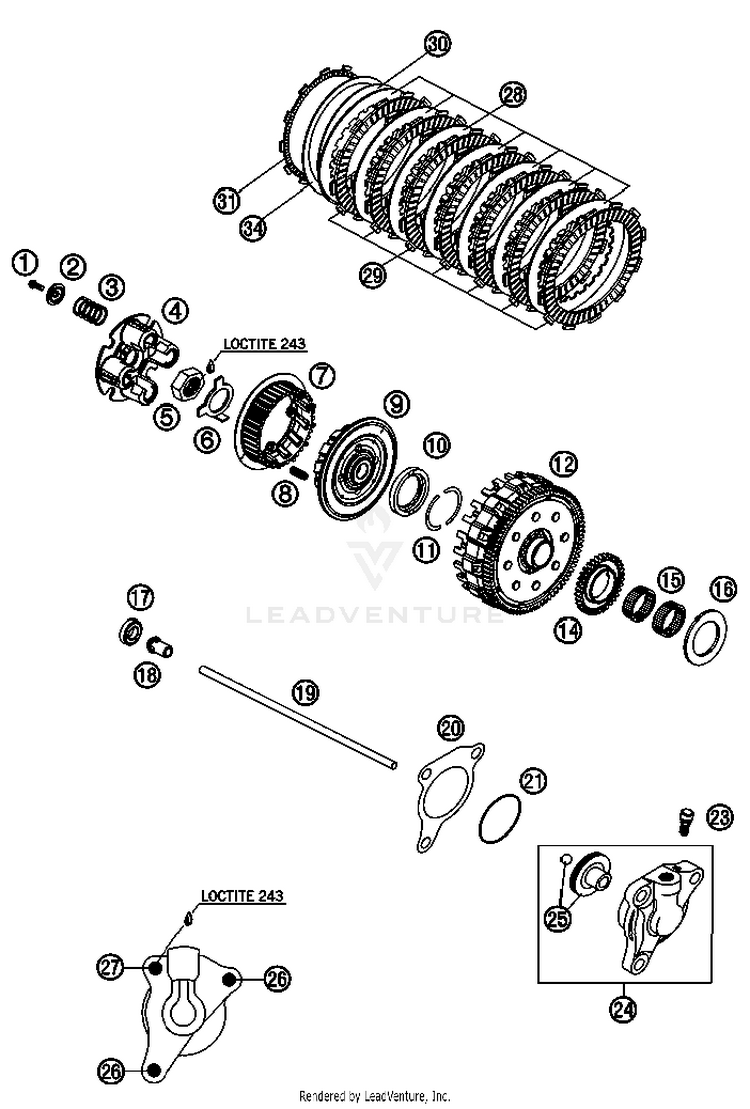

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10025060206

(replaces part #
0015060203)

HH collar screw M6x20 TX30 | WS=8$3.99$3.3910+ In-Stock
275032006000SPRING RING 07 | 07$4.99$4.2410+ In-Stock
358532080001

(replaces part #
58532080000)

CLUTCH SPRING 3,0X33,5$10.44$8.8710+ In-Stock
475032003000PRESSURE CAP$131.99$112.19Usually ships in 7-10 business days
560036073150

(replaces part #
60036073050)

hex nut M20x1,. H=6mm$8.13$6.9110+ In-Stock
647032020000

(replaces part #
75032018000)

thrust washer 20x32x2 | 07$4.99$4.2410+ In-Stock
775032002002

(replaces part #
75032102000)

INNER CLUTCH HUB MOVABLE$325.37$276.563 In-Stock
875032033000CLUTCH RELEASE SPRING$9.12$7.7510+ In-Stock
975032002000INNER CLUTCH HUB FIXED$0.00$0.00Not Shipping
1075032009000STEPPED WASHER 07 | 07$10.99$9.342 In-Stock
1175032007000HALF-WASHER 07 | 07$13.08$11.1210+ In-Stock
1275032001244

(replaces part #
75032001044)

Clutch housing cpl.$627.87$533.69Usually ships in 7-10 business days
1475032050001OIL PUMP DRIVE WHEEL 07 | 07$4.99$4.49Usually ships in 7-10 business days
1556532095000NEEDLE BEARING K26X30X22ZW.KSE$28.04$23.8310+ In-Stock
1675032017000WASHER 26X40X2 07 | 07$7.47$6.354 In-Stock
170625060016deep groove ball bearing 6001.2RSR C3$22.21$18.8810+ In-Stock
1875032055000PRESSURE BOLT 07 | 07$7.53$6.78Not Shipping
1960232154000

(replaces part #
75032054000)

Push rod assembly 110mm | 07$31.56$26.83Usually ships in 7-10 business days
2059032065100

(replaces part #
59032065000)

GASKET F. OUTPUT CYLINDER$6.59$5.6010+ In-Stock
210770300015O-RING 30,00X1,50 NBR 70$2.99$2.5410+ In-Stock
2354732064000BLEEDER SCREW WITH CAP$25.84$21.9610+ In-Stock
2475032061044

(replaces part #
59032061044)

OUTPUT CYL. WITH BLEEDER SCREW | 2003$283.24$240.7510+ In-Stock
2575032061044

(replaces part #
59032066000)

OUTPUT CYL. WITH BLEEDER SCREW | 03$283.24$240.7510+ In-Stock
260025060356

(replaces part #
0015060353)

HH collar screw M6x35 TX30 | WS=8$3.99$3.3910+ In-Stock
270025060206

(replaces part #
0015060203)

HH collar screw M6x20 TX30 | WS=8$3.99$3.3910+ In-Stock
2875032112000STEEL DISK 1,5 MM LC4 ´07 | LC4 '07$21.66$18.4110+ In-Stock
2958332011300LINING DISK 2,7MM FCC 02 | 02$34.09$28.9810+ In-Stock
3058632006000SPRING WASHER 122/133/1,5$0.00$0.00Not Shipping
3176632010000

(replaces part #
75032111100)

LINING DISC CUT OUT$27.60$23.46Usually ships in 7-10 business days
3458632018000ANTICHATTERING SHIM$0.00$0.00Not Shipping
